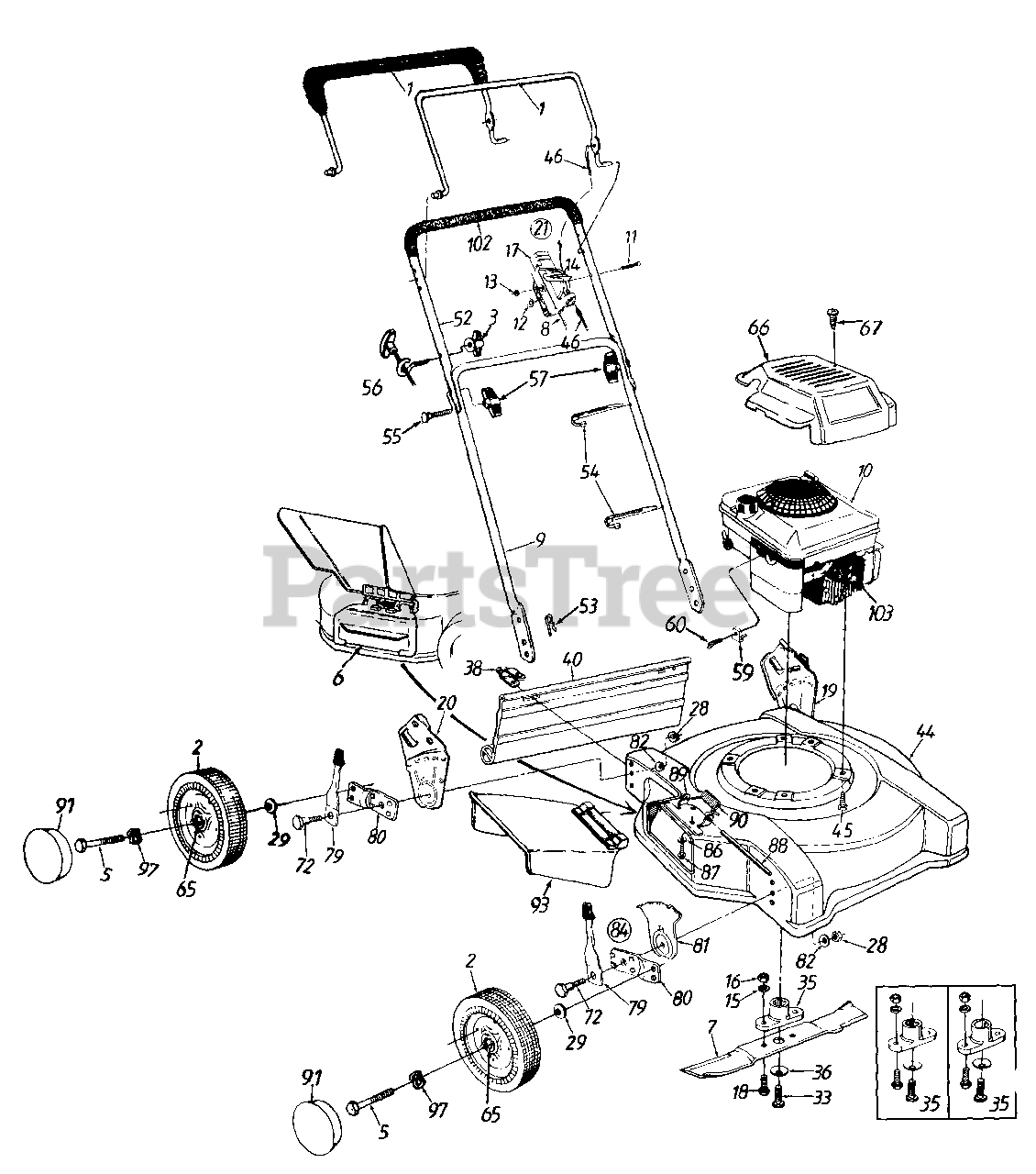

114-206C401 - Yard-Man Walk-Behind Mower (1994) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y. (Std.)
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y. (Deluxe)
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 734-1790

Wheel Ass'y. Comp. (Yellow Rim)

$

$

Not available

MTD 734-1513B

Wheel Ass'y. Comp. (Gray Rim)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

MTD 734-1517B

Wheel Ass'y. Comp. (Beige Rim)

$68.99

$

Usually ships in 3-6 days

0

3

MTD 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0102

Axle Bolt
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

6

MTD 731-1386A

Mulching Plug
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

7

MTD 742-0720

Mulching 20" Blade
(Superseded to 942-0720)

Note: (Optional)

$31.99

$

In Stock, only 1 left!

0

MTD 742-0620

20" Blade
(Superseded to 942-0620)

$

$

Not available

8

MTD 746-0842

Throttle Control Wire - 51"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

9

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

10

Engine

$

$

Not available

11

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

12

MTD 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

13

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

14

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

15

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

17

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: New Part

$9.49

$

In Stock, only 3 left!

0

18

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

19

MTD 682-3001

Wheel Brkt. Ass'y. - L.H.

$

$

Not available

20

MTD 682-3000

Wheel Brkt. Ass'y. - R.H.
(Superseded to 753-05962)

$65.99

$

Usually ships in 3-6 days

0

21

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

$36.99

$

In Stock, only 1 left!

0

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

29

MTD 736-0105

Bell-Wash..40" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

In Stock, only 2 left!

0

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

35

MTD 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

MTD 753-0485

Blade Adapter Kit (Splined)

$46.99

$

Usually ships in 3-6 days

0

36

MTD 736-0452

Bell-Wash..39" I.D.

Note: (Used w/Keyed Adapter)

$4.99

$

In Stock, Qty 5

0

MTD 736-0453

Bell-Wash..46" I.D.
(Superseded to 936-0453)

Note: (Used w/Splined Adapter)

$3.49

$

Usually ships in 3-6 days

0

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

MTD 731-1028

Rear Flap Ass'y.

$34.99

$

In Stock, only 1 left!

0

44

MTD 682-0200

20" Deck Ass'y

$

$

Currently unavailable

45

MTD 710-0654A

Mex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

46

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

52

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

56

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

57

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

59

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

60

MTD 710-1237

Hex Wash Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

65

MTD 741-0484

Wheel Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

66

MTD 731-1402

Engine Shroud

$

$

Not available

67

MTD 710-1256

Screw #10 x 1.25" Lg.

$5.99

$

In Stock, only 2 left!

0

72

MTD 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, Qty 20+

0

79

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

80

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

81

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

82

MTD 736-0356

Bell-Wash..39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

84

MTD 14578

Front Height Adj. Ass'y. Comp - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

86

MTD 736-0270

Bell-Wash .285" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

87

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg

$4.49

$

In Stock, Qty 20+

0

88

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

91

Hub Cap

$

$

Not available

MTD 720-0249

Hub Cap, 3-1/2" Dia. (Gray)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 731-0981A

Hub Cap, 5-1/2" Dia. (Gray)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

MTD 731-0982A

Hub Cap, 5-1/2" Dia. (Beige)
(Superseded to 731-0982C)

Note: Optional

$11.99

$

In Stock, Qty 18

0

MTD 731-1426

Hub Cap, 5-1/2" Dia. (Yellow)
(Superseded to 731-1426B)

Note: Optional

$8.99

$

Usually ships in 3-6 days

0

93

MTD 731-1034

Chute Deflector Ass'y Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

97

MTD 736-0504

Wave Washer .53" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

?99

MTD 736-0272

Fl-Wash .51" I.D. x 1.0"

$4.99

$

In Stock, Qty 20+

0

102

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

103

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available
