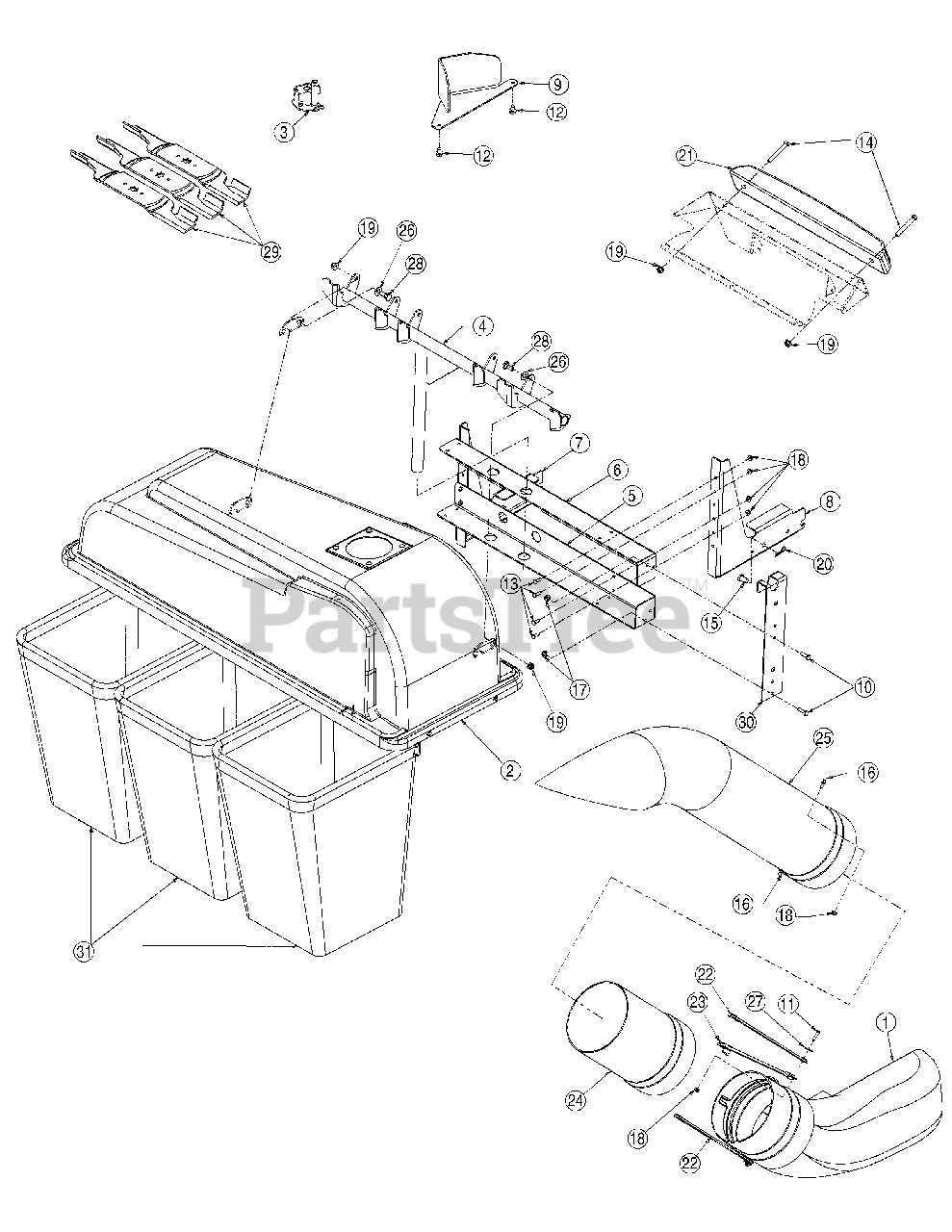

114 (19A-114-100) - Cub Cadet 54" Triple Bagger att General Assembly Parts Diagram

54" Triple Bagger

General Assembly Parts Diagram

  • Title
1

Cub Cadet 631-04238

Chute, Elbow

$

$

Not available

2

Cub Cadet 664-04018

Grasscatcher Cover Assembly

$

$

Not available

3

Cub Cadet 683-0617A

Chute Stop Bracket
(Superseded to 683-0617A-0637)

Variations

Cub Cadet 683-0617A-0637

Chute Deflector Stop, Black - POWDER BLACK (0637)

$64.99

$

In Stock, only 3 left!

0

$64.99

$

In Stock, only 3 left!

0

4

Cub Cadet 689-00002

Support Assembly, Grasscatcher
(Superseded to 689-00002-0637)

Variations

Cub Cadet 689-00002-0637

GRASSCATCHER SUPPORT ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-05195

Hanger Bracket - Bottom
(Superseded to 703-05195-0637)

Variations

Cub Cadet 703-05195-0637

BRACKET-HANGER BLK - POWDER BLACK (0637)

$110.99

$

Usually ships in 3-6 days

0

$110.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-05833

Hanger Bracket - Top (w/ cutout)

Variations

Cub Cadet 703-05833-0637

BRACKET-TOP HANGER - POWDER BLACK (0637)

$120.99

$

Usually ships in 3-6 days

0

$104.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-05856A

Bracket, Catcher Support LH
(Superseded to 703-05856A-0637)

Variations

Cub Cadet 703-05856A-0637

SUPPORT-LH MTG - POWDER BLACK (0637)

$109.99

$

Usually ships in 3-6 days

0

$109.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05858A

Bracket, Catcher Support RH
(Superseded to 703-05858A-0637)

$

$

Not available

9

Cub Cadet 703-06018

Deflector, Deck
(Superseded to 703-06018A-0637)

Variations

Cub Cadet 703-06018-0637

USE 703-06018A-0637 BAFFLE-54 - POWDER BLACK (0637)

$92.99

$

Usually ships in 3-6 days

0

$92.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 Gr5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0 Gr5

$3.99

$

In Stock, Qty 13

0

12

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. TT, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x 0.75 Gr5

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 x 2.75 Gr5

$4.99

$

In Stock, Qty 7

0

15

Cub Cadet 711-0332

Pin, Clevis , .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

16

Cub Cadet 711-04069

Pin, Grasscatcher 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04063

Nut, Hex Flange Insert Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Nut, Hex Flange Insert Lock,1/4-20

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Hex Flange Insert Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-04023

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 719-04271A

Weight, Bagger

$252.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 723-04009A

Chute Strap

$11.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

24

Cub Cadet 731-05878

Tube, Extension, 8"

$

$

Not available

25

Cub Cadet 731-0926B

Tube, Catcher

$142.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0253

Washer, Bell, .525 x 1.0 x .05

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .03 HT

$3.99

$

In Stock, Qty 6

0

28

Cub Cadet 738-0380

Shoulder Screw, .5 x .270: 3/8-16

$7.99

$

In Stock, only 1 left!

0

29

Cub Cadet 742-0679

Blade
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

30

Cub Cadet 783-0601

Catcher Support Bracket
(Superseded to 783-0601-0637)

Variations

Cub Cadet 783-0601-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 764-0251

Bag
(Superseded to 964-0251)

Note: w/o frame

$87.99

$

In Stock, Qty 15

0

31

Cub Cadet 710-0473

Machine Screw

Note: not shown

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 749-0745A

Tube: Grass Bag Frame
(Superseded to 749-0745A-0637)

Note: not shown

Variations

Cub Cadet 749-0745A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 17201A

Bag Hanger Bracket
(Superseded to 17201A-0637)

Note: not shown

Variations

Cub Cadet 17201A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0604A

TTScrew 5/16-18 x 0.625

Note: not shown

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0272

Hex Sems Nut

Note: not shown

$3.99

$

Usually ships in 3-6 days

0
