114-1212 - Toro Main Frame Service Kit for Gasoline-Powered Z500 Series Z Master Mower MAIN FRAME SERVICE KIT NO. 114-1212 Parts Diagram

Main Frame Service Kit for Gasoline-Powered Z500 Series Z Master Mower

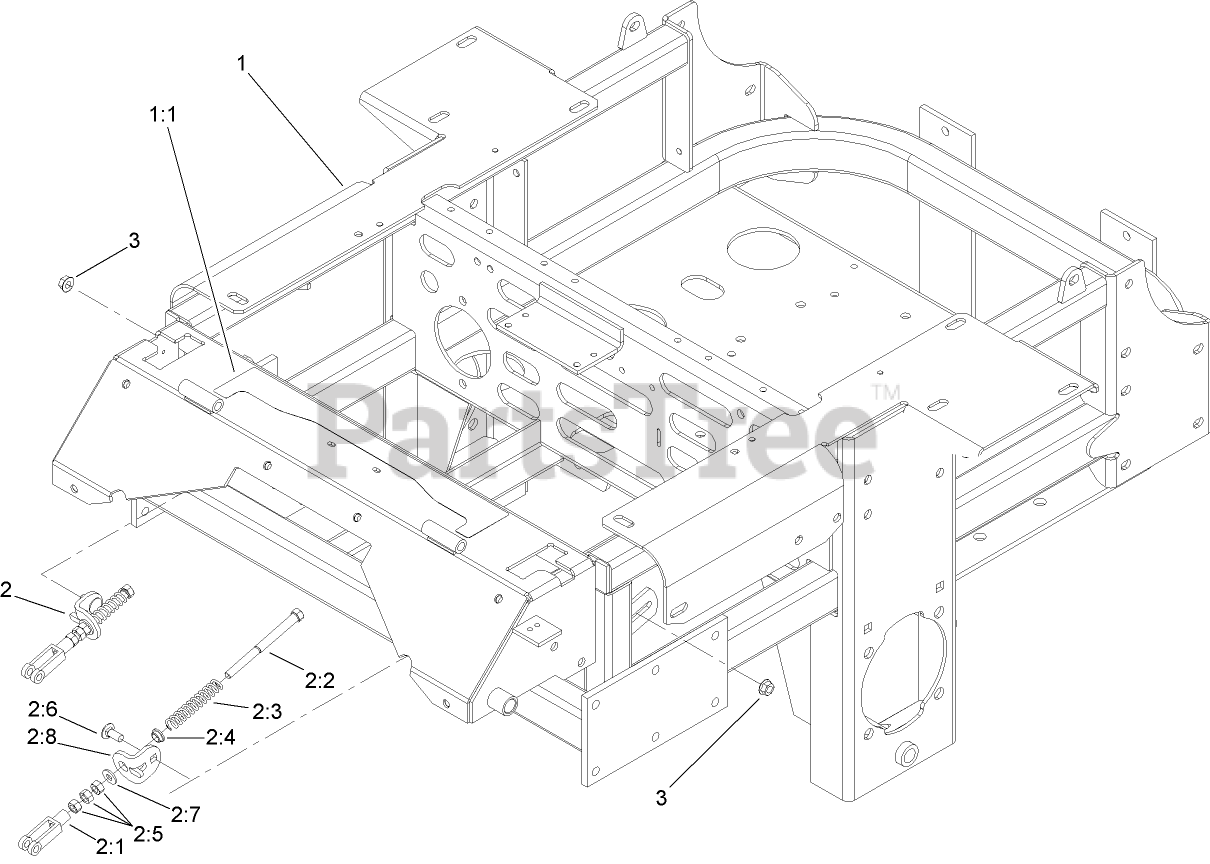

MAIN FRAME SERVICE KIT NO. 114-1212 Parts Diagram

  • Title
1

Toro 112-9000

MAIN FRAME ASM

$

$

Not available

1:1

Toro 107-8076

DECAL-CONSOLE, TOP

$

$

Not available

2

Toro 109-3903

NEUTRAL RETURN ASM

$35.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

2:2

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

2:3

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

2:4

Toro 109-3769

BUSHING-NYLON, FLANGED

$

$

Not available

2:5

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

2:6

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

2:7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2:8

Toro 109-3908

TAB-ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0

3

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
