114-072E190 - White Outdoor 20" Walk-Behind Mower (1994) Rotary Mower Parts Diagram

20" Walk-Behind Mower

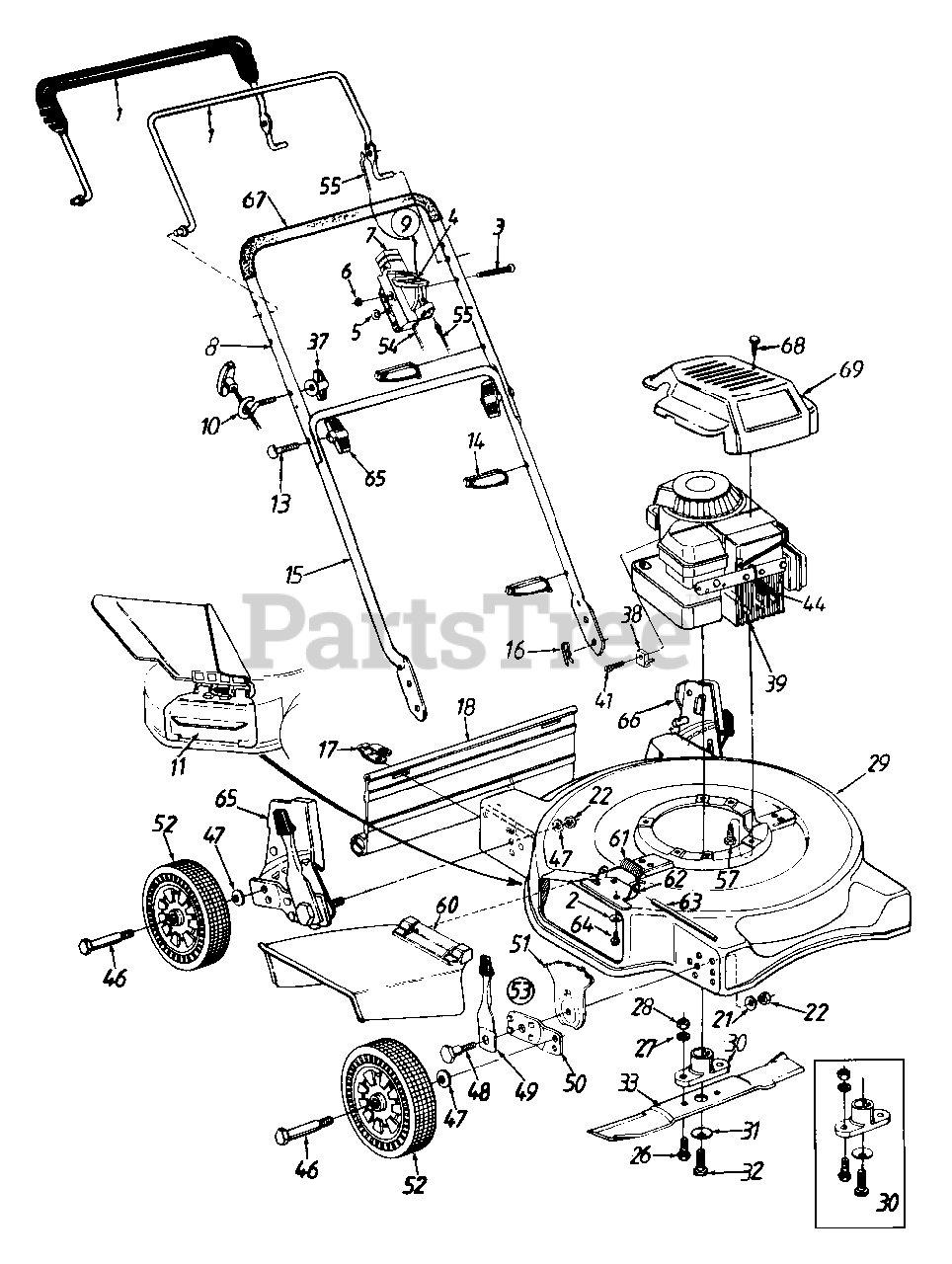

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y. w/Plastic
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

4

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

5

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

7

White Outdoor 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

8

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Incl. Ref. 3, 4, 5, 6, 7

$36.99

$

In Stock, only 1 left!

0

10

White Outdoor 747-1205

Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 20+

0

11

UNKNOWN

$

$

Not available

?12

White Outdoor 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 8

0

13

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

16

White Outdoor 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

?19

White Outdoor 17189B

Handle Bracket Ass'y. - L.H.

Variations

White Outdoor 17189B-0637

BRACKET ASSY-HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

?20

White Outdoor 17188B

Handle Bracket Ass'y. - R.H.

Variations

White Outdoor 17188B-0637

BRACKET ASSY-HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

21

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

?23

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

29

White Outdoor 682-0033

20" Deck Ass'y.

Variations

White Outdoor 682-0033-0480

No Longer Available DECK ASSY-20 FULL - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 682-0033-0483

No Longer Available DECK ASSY-20 FULL - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-0033-0498

No Longer Available DECK ASSY-20 FULL - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-0033-0499

No Longer Available DECK ASSY-20 FULL - CUB BEIGE (0499)

$

$

Not available

White Outdoor 682-0033-0629

No Longer Available DECK ASSY-20 FULL - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-0033-0638

No Longer Available DECK ASSY-20 FULL - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0033-0662

No Longer Available DECK ASSY-20 FULL - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-0033-0665

No Longer Available DECK ASSY-20 FULL - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0033-0692

No Longer Available DECK ASSY-20 FULL - AGWAY BLUE (0692)

$

$

Not available

$

$

30

White Outdoor 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

31

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 5

0

32

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 8

0

33

White Outdoor 742-0620

20" Blade
(Superseded to 942-0620)

$

$

Not available

White Outdoor 742-0720

20" Mulching Blade
(Superseded to 942-0720)

Note: Optional

$31.99

$

In Stock, only 1 left!

0

37

White Outdoor 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

39

Engine

$

$

Not available

41

White Outdoor 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

44

White Outdoor 735-0639

Spark Plug Boot

Note: Optional

$

$

Not available

46

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1793

Wheel Ass'y. Comp.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

White Outdoor 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

53

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. - L.F.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

White Outdoor 746-0842

Throttle Cable - 51"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

55

White Outdoor 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

57

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

61

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

62

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

63

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

65

White Outdoor 682-3024

Height Adj. Ass'y. Comp. - R.R.
(Superseded to 987-02106A)

Variations

White Outdoor 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

66

White Outdoor 682-3025

Height Adj. Ass'y. Comp. - L.R.
(Superseded to 987-02107A)

Variations

White Outdoor 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

67

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

68

UNKNOWN

$

$

Not available

69

Engine Shroud

$

$

Not available
