114-041F105 - ServiStar Walk-Behind Mower (1994) (American Hardware) General Assembly Parts Diagram

Walk-Behind Mower

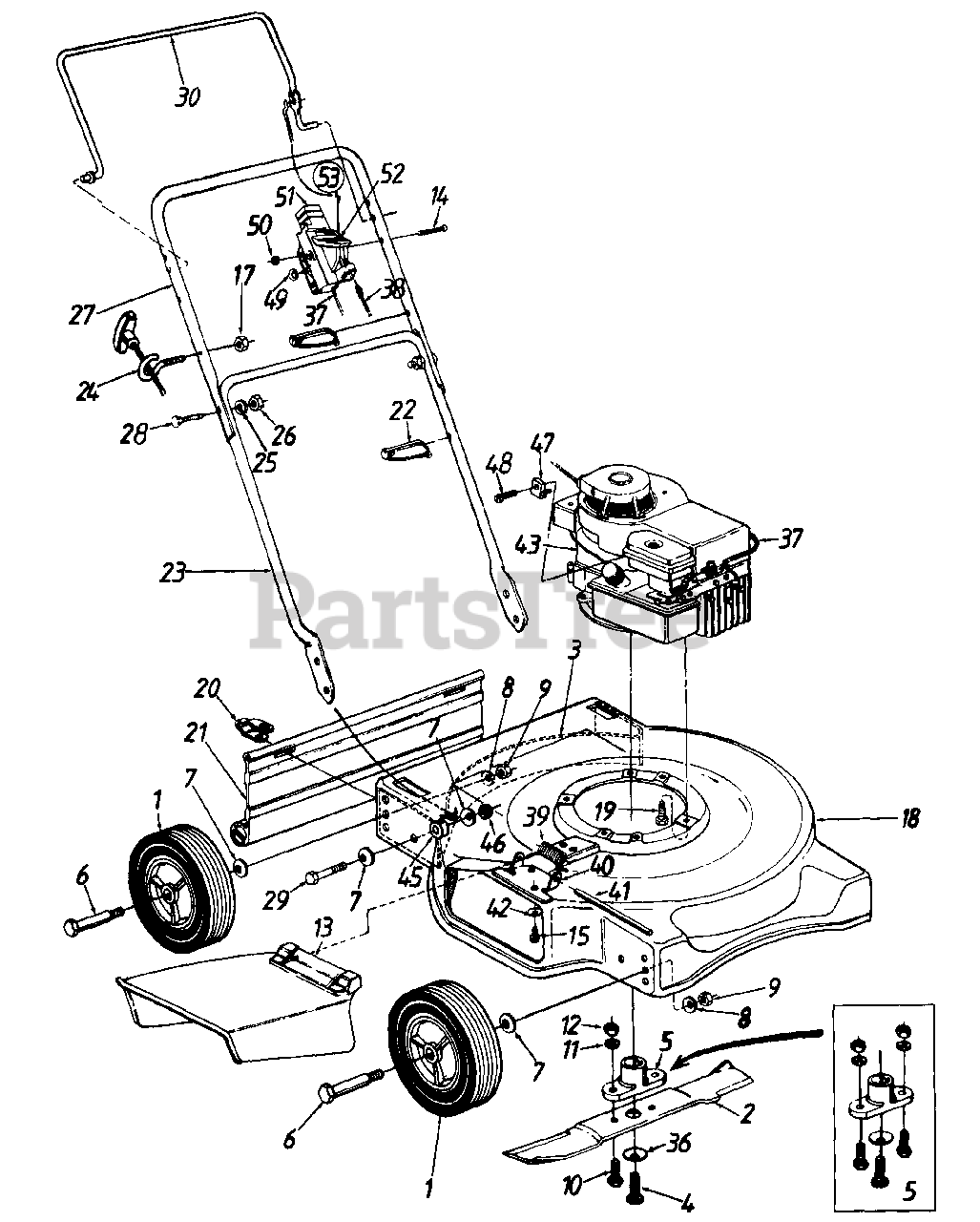

General Assembly Parts Diagram

  • Title

1

Wheel Ass'y. Complete

$

$

Not available

MTD 734-1168

Tread, Rib (6")

Note: Uses Axle Bolt No. 738-0533

$

$

Not available

MTD 734-1779

Tread, Diamond (7")
(Superseded to 734-1779A)

Note: Uses Axle Bolt No. 738-0533

$20.99

$

In Stock, only 3 left!

0

2

MTD 742-0620

20" Blade
(Superseded to 942-0620)

$

$

Not available

3

MTD 782-5006

Baffle (040 Series Only)

Variations

MTD 782-5006-0637

No Longer Available BAFFLE-040 - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

Usually ships in 3-6 days

0

5

MTD 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

6

MTD 738-0533

Axle Bolt

Note: Used on Tread, Rib (6")

$7.99

$

Usually ships in 3-6 days

0

MTD 738-0533

Axle Bolt

Note: Used on Tread, Diamond (7")

$7.99

$

Usually ships in 3-6 days

0

7

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

9

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

11

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

13

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

14

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

15

MTD 710-0599

Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

?16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

18

MTD 782-0030

20" Deck Ass'y.

Variations

MTD 782-0030-0480

No Longer Available DECK ASM - BRILLIANT GREEN (0480)

$

$

Not available

MTD 782-0030-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0030-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0030-0648

No Longer Available DECK ASM - TECH GRAY (0648)

$

$

Not available

MTD 782-0030-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

MTD 782-0030-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0030-0674

No Longer Available DECK ASM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

19

MTD 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

20

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

21

MTD 731-0872A

Rear Flap 16.69" Lg.
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

22

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

23

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

24

MTD 747-1205

Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, only 2 left!

0

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

29

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

30

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

36

MTD 736-0452

Bell-Wash..39" I.D.

$4.99

$

In Stock, Qty 7

0

37

MTD 746-0842

Throttle Control Wire - 51" (B&S)
(Superseded to 946-0671A)

Note: Optional Parts

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0844

Throttle Control Wire - 39" (Tecumseh)

Note: Optional Parts

$

$

Not available

38

MTD 746-0553

Control Cable - 36" (B&S)
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0552

Control Cable - 49" (Tec.)
(Superseded to 946-0552)

$41.99

$

Usually ships in 3-6 days

0

39

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

40

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

41

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0270

Bell-Wash. 1/4" l.D.

$3.99

$

In Stock, Qty 20+

0

43

Engine

$

$

Not available

45

MTD 750-0910

Spacer
(Superseded to 950-0910)

$

$

Not available

46

MTD 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

47

MTD 751-0568

Casing Clamp (B&S)
(Superseded to BS-690798)

Note: Optional Parts

$5.49

$

In Stock, only 1 left!

0

48

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B&S)

Note: Optional Parts

$4.49

$

Usually ships in 3-6 days

0

49

MTD 736-0501

Spring Wash. .66" I.D.
(Superseded to 936-0501)

Note: Optional Parts

$6.99

$

Usually ships in 3-6 days

0

50

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

51

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

52

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: Optional Parts

$8.49

$

In Stock, only 2 left!

0

53

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 14,49, 50, 51, 52)

$36.99

$

In Stock, only 1 left!

0
