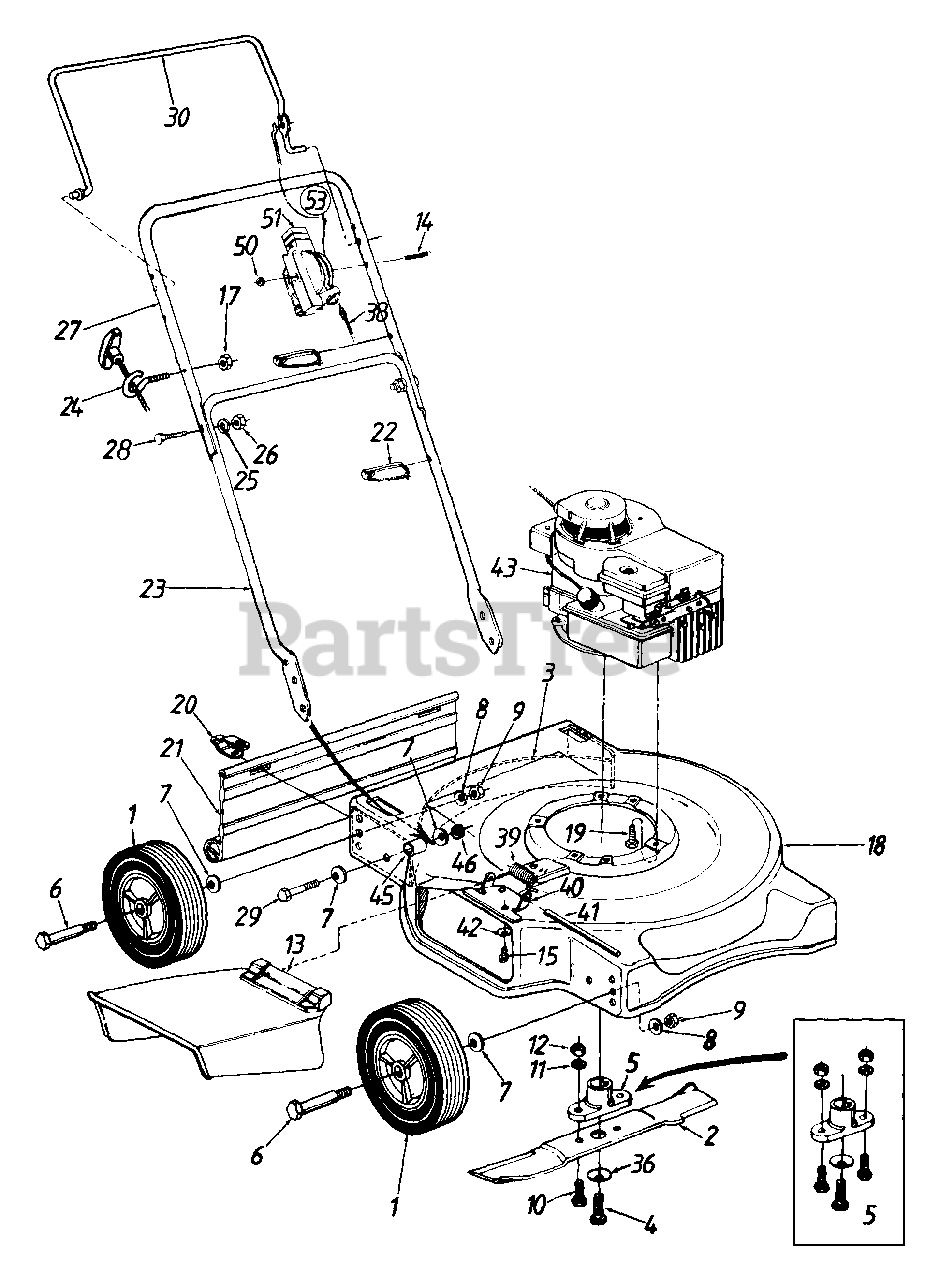

  • Title

1

MTD 734-1779A

Wheel Ass'y. Complete

$20.99

$

In Stock, only 3 left!

0

2

MTD 942-0620

20" Blade

$

$

Not available

3

MTD 782-5006

Baffle

Note: NLA

Variations

MTD 782-5006-0637

No Longer Available BAFFLE-040 - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

5

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

6

MTD 938-0533

Axle Bolt
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

7

MTD 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

9

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

11

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

13

MTD 931-1034B

Chute Deflector Ass'y.

$72.99

$

In Stock, Qty 6

0

14

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

15

MTD 710-0599

Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

?16

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

17

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

18

MTD 782-0030

20" Deck Ass'y.

Note: NLA

Variations

MTD 782-0030-0480

No Longer Available DECK ASM - BRILLIANT GREEN (0480)

$

$

Not available

MTD 782-0030-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0030-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0030-0648

No Longer Available DECK ASM - TECH GRAY (0648)

$

$

Not available

MTD 782-0030-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

MTD 782-0030-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0030-0674

No Longer Available DECK ASM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

19

MTD 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

20

MTD 17098P

Hinge Clip

$

$

Not available

21

MTD 731-0872B

Rear Flap 16.69" Lg.

$39.99

$

In Stock, Qty 6

0

22

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

23

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

24

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

25

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

26

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0538E-0637

Upper Handle

$

$

Not available

28

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Note: NLA

$

$

Not available

29

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg.

$6.99

$

In Stock, Qty 8

0

30

MTD 747-0824B-0637

Control Handle

$65.99

$

In Stock, only 1 left!

0

36

MTD 936-0452

Bell-Wash. .39" I.D.
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

38

MTD 946-0553

Control Cable - 36"

$24.99

$

Usually ships in 3-6 days

0

39

MTD 932-0593

Torsion Spring

$4.99

$

In Stock, only 3 left!

0

40

MTD 17032A

Adapter Plate

$10.99

$

In Stock, only 2 left!

0

41

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

43

Engine

$

$

Not available

45

MTD 950-0910

Spacer

$

$

Not available

46

MTD 912-0355

Hex L-Nut 3/8-24 Thd.

$5.49

$

Usually ships in 3-6 days

0

50

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

51

MTD 946-0875

Throttle Body

$9.49

$

In Stock, only 4 left!

0

53

MTD 811-0185

Throttle Box Comp.

Note: Incl. Ref. 14, 49, 50, 51, 52

$36.99

$

In Stock, only 1 left!

0
