113988-0144-XX - Briggs & Stratton Vertical Engine Cyl,Oil Fill,Piston,SumpBase Parts Diagram

Vertical Engine

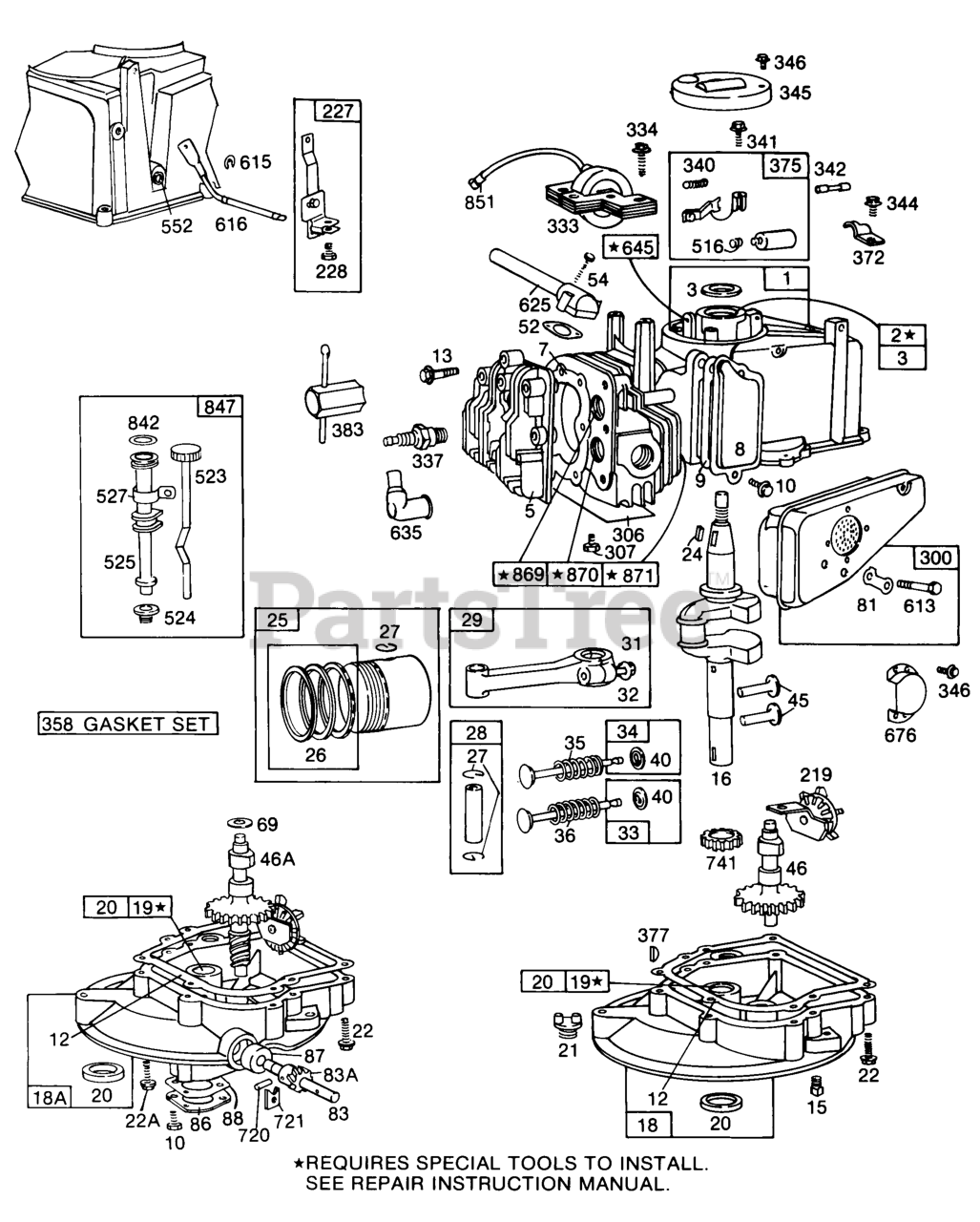

Cyl,Oil Fill,Piston,SumpBase Parts Diagram

  • Title

1

Briggs & Stratton 394740

Cylinder Assembly
(Superseded to 396447)

$155.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

Note: Requires special tools for installation.

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 211851

Head-Cylinder
(Superseded to 5021185X1)

$

$

Not available

7

Briggs & Stratton 270836

Gasket-Cylinder Head
(Superseded to 272171)

Note: Included in Gasket Set-Part No. 391662

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 298383

Breather-Vlv. Chamber
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 270239

Gasket-Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 391662

$4.49

$

In Stock, only 3 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 391662

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 391662

$9.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 391662

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 394793

Crankshaft
(Superseded to 397231)

$112.99

$

Usually ships in 2-12 days

0

18A

Briggs & Stratton 391645

Sump-Oil

$116.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 394157

Sump-Oil

$116.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293709

Bushing/Seal Kit (Plain)

Note: Requires special tools for installation.

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 6

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

Note: Use 93032 Screw in the other (5) Sump Mounting Holes

$8.49

$

In Stock, only 1 left!

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391650

Piston Assy-Std

$63.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391651

Piston-Assy. .010" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391652

Piston-Assy. .020" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391653

Piston-Assy. .030" O.S.

$110.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391654

Ring Set-Std

$

$

Not available

26

Briggs & Stratton 391656

Ring Set-010

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391658

Ring Set-020

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391660

Ring Set-030

$27.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 392330

For Chrome Piston Ring Set Standard Size

$

$

Not available

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 391649

Pin Assembly-Piston Standard

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 394861

Pin Assembly-Piston .005" O.S.

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391640

Rod Assy.-Connecting
(Superseded to 490566)

Note: For Connecting Rod with .020" undersize Crankpin Bearing-Order No. 393710

$39.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222390

Lock-Connecting Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93670

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261233

Valve-Intake

$

$

Not available

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 261250

Tappet-Valve

$8.49

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 394791

Cam Gear, Worm And Oil Slinger Assy. (Clockwise Rotation)

$55.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212021

Gear-Cam

$55.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270844

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 391662

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93485

Screw-Hex
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66874

Washer-Thrust (11/16" O.d. X 15/32" I.d.)

$3.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 68938

Washer, Thrust
(Superseded to 691074)

Note: Used on Auxiliary Drive P.T.O. Camshaft and is located next to the Worm Gear. (13/16 ODx17/32 ID) Use on Aux Drive PTO.Cam

$

$

Not available

81

Briggs & Stratton 223256

Lock-Screw
(Superseded to 691179)

$5.99

$

In Stock, only 1 left!

0

83A

Briggs & Stratton 231278

Gear, Helical (Clockwise)
(Superseded to 690516)

$40.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 230948

Shaft-Drive
(Superseded to 690506)

$24.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 221780

Cover-Sump
(Superseded to 690398)

$3.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 391484

Seal, Auxiliary PTO (For 1/2"Auxiliary Drive Shaft)
(Superseded to 691952)

$9.99

$

In Stock, Qty 11

0

88

Briggs & Stratton 270328

Gasket-Sump Cover
(Superseded to 691868)

$4.49

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 394044

Slinger-Oil

$19.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 394115

Lever Assy.-Governor
(Superseded to 491481)

$13.99

$

Usually ships in 2-12 days

0

228

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 394644

Muffler-Exhaust
(Superseded to 692307)

Note: (Includes No. 270774 Mounting Gasket)

$36.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 223263

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

333

Briggs & Stratton 298502

Armature-Mag (For Points And Condenser)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover-Breather Point And Condenser

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

358

Briggs & Stratton 391662

Gasket-Set

$40.99

$

Usually ships in 2-12 days

0

372

Briggs & Stratton 220477

Clamp-Condensor

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Breaker Points And Condensor Set

$

$

Not available

375

Briggs & Stratton 299061

Ignition Kit
(Superseded to 294628)

Note: Includes: 294628 Point Set 65704 Plunger 61760 Key-Flywheel

$

$

Not available

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

516

Briggs & Stratton 260374

Condenser Spring

$7.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 391838

Cap With Dipstick-Oil Filler
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280131

Tube-Oil Filler

$12.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 222549

Clamp-Oil Filler Tube

$10.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 230732

Bushing-Gov Crank (3/16" I.d.)

$6.49

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93935

Screw, Shoulder Muf
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 394075

Crank-Governor (Mechanical Governor)

$18.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 391377

Tube-Fuel Intake

$11.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 222238

Deflector, Muffler (Side Outlet)
(Superseded to 393756)

$16.99

$

Usually ships in 2-12 days

0

720

Briggs & Stratton 93474

Pin-Shaft
(Superseded to 691623)

$

$

Not available

721

Briggs & Stratton 221779

Stop-Shaft
(Superseded to 690397)

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261533

Gear, Timing
(Superseded to 691805)

Note: (For Plain Bearing 2 Piece Crankshaft)

$15.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392056

Filler Group-Oil

$12.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

$6.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0
