113908-2999-02 - Briggs & Stratton Vertical Engine Carburetor & Fuel Tank Assy Parts Diagram

Vertical Engine

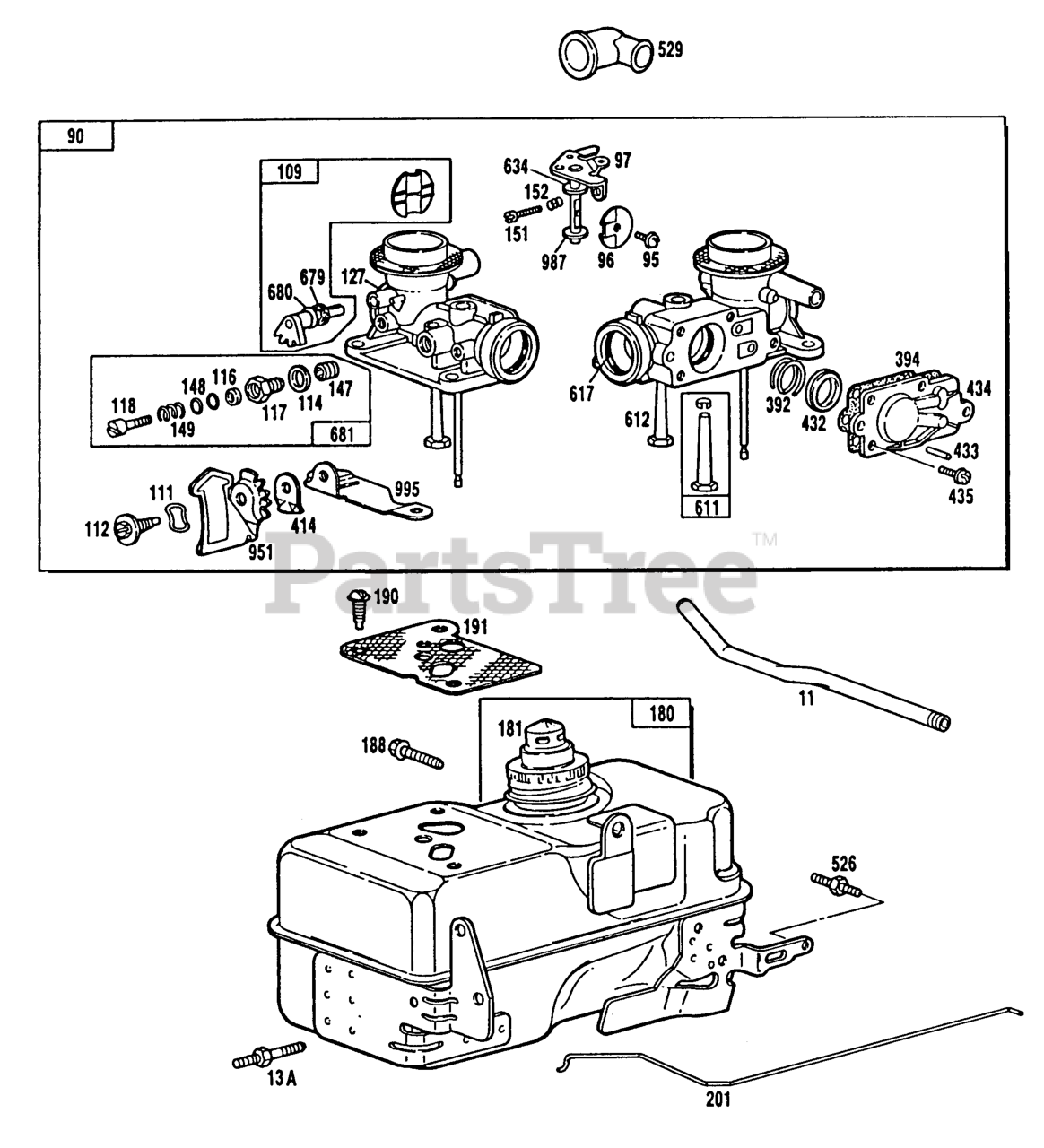

Carburetor & Fuel Tank Assy Parts Diagram

  • Title

11

Briggs & Stratton 231437

Tube-Breather

$7.49

$

Usually ships in 2-12 days

0

13A

Briggs & Stratton 93772

Stud-Hex Drive (15/16" Long)

Note: Uses: 22963 Washer (2)

$8.49

$

In Stock, only 3 left!

0

90

Briggs & Stratton 399776

Carburetor Assembly

$110.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 398969

Shaft And Lever-Throttle

$11.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 399775

Shaft Assembly-Choke

$13.99

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 94060

Washer-Wave
(Superseded to 691089)

$3.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 94164

Screw, Hex Washer H
(Superseded to 691091)

$9.49

$

Usually ships in 2-12 days

0

114

Briggs & Stratton 66594

Sealing Washer (Needle Valve)
(Superseded to 691608)

$5.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 230590

Nut, Hex
(Superseded to 690504)

$3.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 23433

Valve-Needle
(Superseded to 690266)

$9.49

$

In Stock, only 3 left!

0

127

Briggs & Stratton 22831

Plug-Welch
(Superseded to 691585)

$6.99

$

In Stock, Qty 5

0

147

Briggs & Stratton 230591

Seat-Needle Valve
(Superseded to 692134)

$9.49

$

In Stock, only 4 left!

0

148

Briggs & Stratton 22235

Washer, Brass
(Superseded to 690257)

$4.99

$

In Stock, only 1 left!

0

149

Briggs & Stratton 26336

Spring-Needle Valve
(Superseded to 691592)

$3.99

$

In Stock, only 4 left!

0

151

Briggs & Stratton 93527

Screw, Tapping Roun (5-40 X 5/8"})
(Superseded to 691624)

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260575

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

180

Briggs & Stratton 399772

Tank Assembly-Fuel

$76.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 399226

Cap-Fuel Tank

$20.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94102

Screw-Hex. Hd. Sem
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 270073

Gasket-Fuel Tank

$4.99

$

In Stock, only 3 left!

0

201

Briggs & Stratton 262100

Link-Governor

$3.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Pump Diaphragm
(Superseded to 692206)

$4.49

$

In Stock, Qty 7

0

394

Briggs & Stratton 270026

Diaphragm-Pump

$3.99

$

In Stock, Qty 20+

0

414

Briggs & Stratton 223731

Spacer-Choke Lever

$5.99

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

433

Briggs & Stratton 93265

Pin-Roll
(Superseded to 690296)

$6.49

$

Usually ships in 2-12 days

0

434

Briggs & Stratton 210595

Cover-Diaphragm

$

$

Not available

435

Briggs & Stratton 93141

Screw, Sem Filliste (Diaphragm Cover)
(Superseded to 691619)

$6.49

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 94140

Stud-Tank Mtg.

Note: Uses: 93713 Lockwasher 22963 Washer (1)

$3.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 8

0

611

Briggs & Stratton 391813

Tube-Pick Up (For 2 And 3 Quart Tanks)

$

$

Not available

612

Briggs & Stratton 296811

Pipe/Sleeve Assy
(Superseded to 497413S)

$7.49

$

In Stock, Qty 5

0

617

Briggs & Stratton 280393

Seal, O-Ring (Oil Fill)
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 271853

Washer, Foam (Foam)
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

679

Briggs & Stratton 270382

Washer, Felt (Foam)
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

680

Briggs & Stratton 221839

Washer, Brass
(Superseded to 690401)

$3.99

$

In Stock, only 1 left!

0

681

Briggs & Stratton 299060

Valve-High Speed (Threaded)

$21.99

$

In Stock, only 2 left!

0

951

Briggs & Stratton 223286

Lever-Choke
(Superseded to 691180)

$11.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal, Throttle Shaf (Lmt 46, 49, 50, 51, 53, 86)
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

995

Briggs & Stratton 223683

Bracket-Choke Lever

$12.99

$

Usually ships in 2-12 days
