11364 - Troy-Bilt Tuff-Cut II 22" Walk-Behind Mower, 5hp ELECTRIC START Parts Diagram

Tuff-Cut II 22" Walk-Behind Mower, 5hp

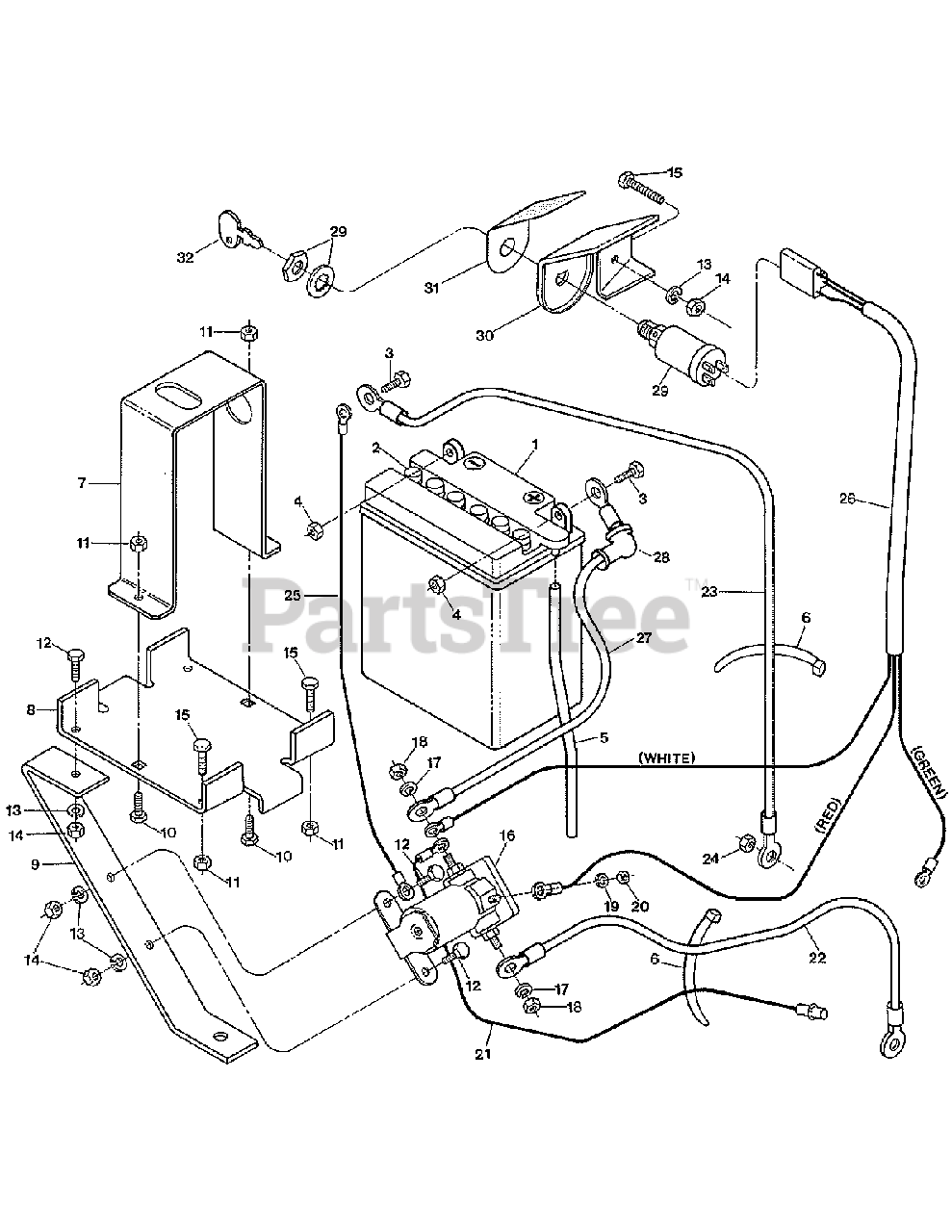

ELECTRIC START Parts Diagram

  • Title

1

MTD GW-9234B

BATTERY (INCL. 2-5)

$

$

Not available

2

MTD GW-9462

CAP-YELLOW

$

$

Not available

3

MTD GW-11361

HDW PKG-BATTERY TERMINAL (INCL. 2 NUTS REF. NO. 4)

$

$

Not available

4

MTD GW-11361

HDW PKG-BATTERY TERMINAL (INCL. 2 SCREWS REF. NO. 3)

$

$

Not available

5

MTD GW-9009

TUBE-VENT BATTERY/HSE

$

$

Not available

6

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

7

MTD GW-20758

CLAMP-BATTERY PNT

$

$

Not available

8

MTD GW-80010

BRKT-BATT BASE PNT

$

$

Not available

9

MTD GW-80011

SUPT-BATT BRKT PNT

$

$

Not available

10

Troy-Bilt GW-90017

SCR-HHCS 1/4-20X1 GR5
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

11

Troy-Bilt GW-92002

NUT-H/LK 1/4-20
(Superseded to 1110106)

$

$

Not available

12

MTD GW-90004

SCR-HHCS 1/4-20X5/8 GR5

$

$

Not available

13

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

15

MTD GW-90005

SCR-HHCS 1/4-20X1.250 GR 5

$

$

Not available

16

Troy-Bilt GW-1959

KIT-SOL W/HDW (INCL. 17-20)

$

$

Not available

17

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt GW-9826

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

19

Troy-Bilt GW-9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt GW-9809

NUT-HH M10-32X.125
(Superseded to 1186208)

$6.49

$

Usually ships in 3-6 days

0

21

MTD GW-T242204

ASSM-WIRE

$

$

Not available

22

MTD GW-T239871

CABLE-STRT TO SOLND

$

$

Not available

23

MTD GW-T239872

CABLE (-)

$

$

Not available

24

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD GW-T239749

ASSM-GROUND WIRE

$

$

Not available

26

MTD GW-T239747

WIRE HARNESS TO KEYSWITCH

$

$

Not available

27

MTD GW-T239870

CABLE-BTRY TO SOLND (USE WITH NO. 28)

$

$

Not available

28

Troy-Bilt GW-97020

BOOT-BATTERY CABLE

$

$

Not available

29

MTD GW-9230

KEYSWITCH W/KEYS (INCL. 32 AND MOUNTING WASHER & NUT)

$

$

Not available

30

MTD GW-80013

BRKT-KEYSWITCH W/DECAL (INCL. 31)

$

$

Not available

31

MTD GW-80074

DECAL-IGNITION

$

$

Not available

32

Troy-Bilt GW-9243

KEYS(1 PAIR) FOR SWITCH
(Superseded to GW-9243099)

$

$

Not available
