11363 - Troy-Bilt Tuff-Cut II 22" Walk-Behind Mower, 5hp MAIN ASSEMBLY Parts Diagram

Tuff-Cut II 22" Walk-Behind Mower, 5hp

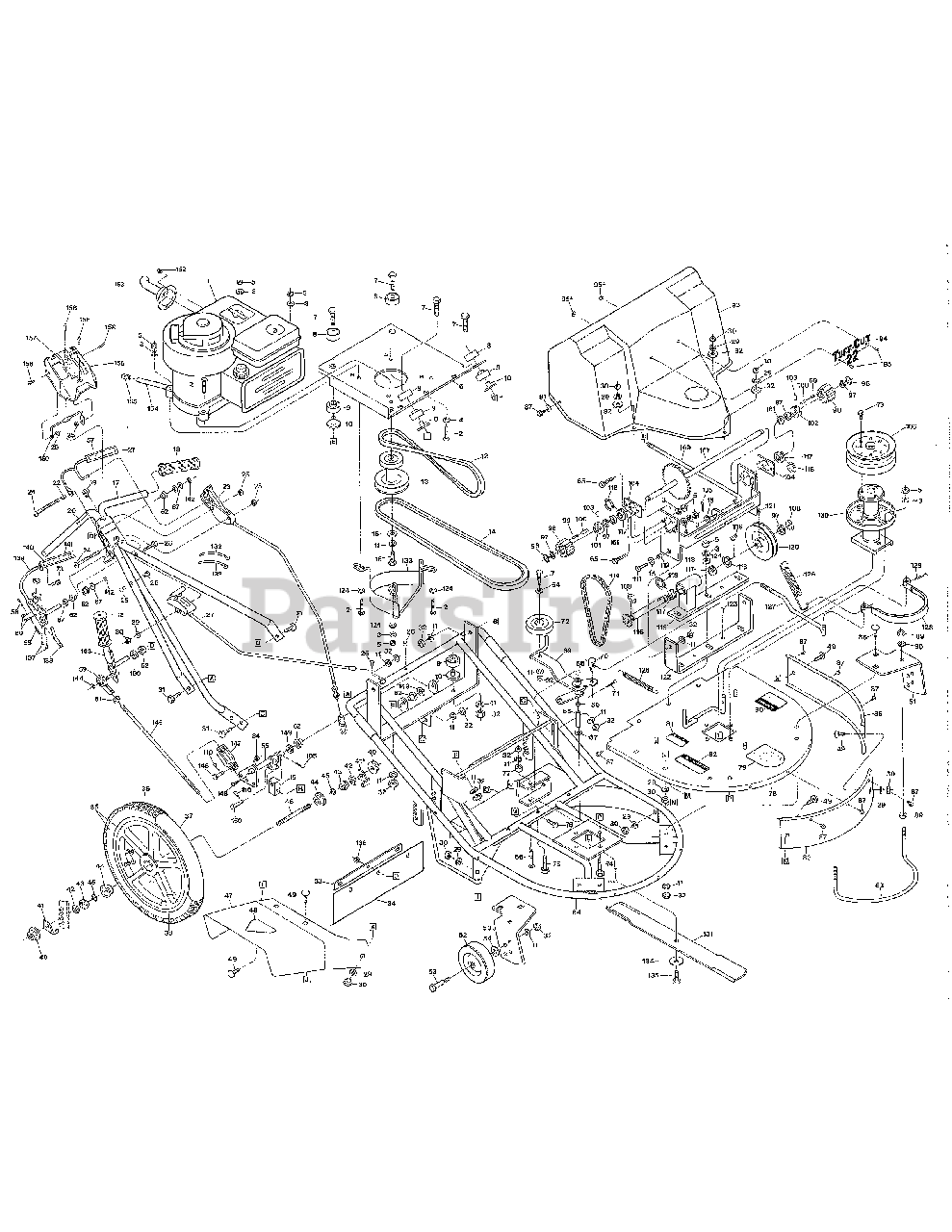

MAIN ASSEMBLY Parts Diagram

  • Title

1

ENGINE, 5HP

$

$

Not available

2

Troy-Bilt GW-90009

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-9912

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

MTD GW-9901

WASHER-.88X312X.08 ZP

$

$

Not available

5

Troy-Bilt GW-9801

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD GW-80041

BASE-ENGINE PNT

$

$

Not available

7

Troy-Bilt GW-90013

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

8

MTD GW-T200234

REBOUND MOUNT-24"

$

$

Not available

9

MTD GW-T200236

LOAD CARRYING MOUNT-24"

$

$

Not available

10

Troy-Bilt GW-T200237

TUB-SPACER 24"

$

$

Currently unavailable

11

Troy-Bilt GW-9913

WASHER-LK .375 @@ DEPLð
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

12

MTD GW-T239661

TRACTION-V BELT

$

$

Not available

13

Troy-Bilt GW-T239670

PULLEY-ENGINE

$

$

Currently unavailable

14

MTD GW-T236321

BLADE-V BELT

$

$

Not available

15

Troy-Bilt GW-9903

WASHER-1.0X.438X.104 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt GW-90028

SCR-HH 3/8-24X1.5 G5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

17

MTD GW-80087

ASSM-HANDLEBAR S-P (INCL. 18 - 2 GRIPS AND 20)

$

$

Not available

18

Troy-Bilt GW-T239797

GRIP-HANDLEBAR

$

$

Not available

19

MTD GW-97008

PLUG-METAL CAP

$

$

Not available

20

Troy-Bilt GW-T240263

DECAL-STARTING INST

$

$

Currently unavailable

21

Troy-Bilt GW-80032

ASSM-BLADE CONTROL HANDLE (INCL 57)

$

$

Currently unavailable

22

MTD GW-T242369

SPACER

$

$

Not available

23

Troy-Bilt GW-T239738

CABLE-BLADE DRIVE (LATCH & CABLE)
(Superseded to GW-T239738P)

$155.99

$

Usually ships in 3-6 days

0

24

MTD GW-90026

SCR-PHP M10-24X4.0 ZP

$

$

Not available

25

MTD GW-92001

NUT-HEX LOCK #10-24 PL

$

$

Not available

26

MTD GW-T240175

PLUG-HOLE (ENGINES ONLY)

$

$

Not available

27

Troy-Bilt GW-T239735

SPEED CONTROL-ENGINE (CABLE AND CONTROL)

$

$

Currently unavailable

28

MTD GW-90006

SCR 1/4-20X1.5 PL CSHH

$

$

Not available

29

Troy-Bilt GW-9910

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

30

Troy-Bilt GW-9800

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

31

Troy-Bilt GW-90011

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

32

Troy-Bilt GW-9802

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

33

MTD GW-80043

BRKT-PROT TRAILER PNT

$

$

Not available

34

MTD GW-T242207

TRAILER-MOWER

$

$

Not available

35

MTD GW-T242397

ASSM-TIRE & WHEEL {36,37,38,39,40,42,43,44, 45,46}

$

$

Not available

36

MTD GW-T242398

TIRE-16 X 2.125

$

$

Not available

37

MTD GW-T239808

TUBE-16"

$

$

Not available

38

MTD GW-T242459

ASSM-16" RIM {40,42,43,44,45,46}

$

$

Not available

39

MTD GW-T3823

CAP-VALVE

$

$

Not available

40

MTD GW-92003

NUT-HF/LK 3/8-24 WHIZ

$

$

Not available

41

MTD GW-T242211

TAB-WHEEL LOCK RH

$

$

Not available

41A

Troy-Bilt GW-T242212

TAB-WHEEL LOCK LH

$

$

Currently unavailable

42

MTD GW-92004

NUT-LOCK 3/8-24 PL

$

$

Not available

43

Troy-Bilt GW-92005

NUT-ACORN 3/8-24 ZP

$

$

Currently unavailable

44

Troy-Bilt GW-T239800

CUP-WHEEL

$

$

Currently unavailable

45

Troy-Bilt GW-T239803

BEARING-WHEEL

$

$

Currently unavailable

46

MTD GW-T239802

AXLE-WHEEL

$

$

Not available

47

MTD GW-80048

CHUTE-DISCHARGE W/DECAL (INCL 48)

$

$

Not available

48

MTD GW-T214744

DECAL-BLADE WARNING

$

$

Not available

49

MTD GW-90014

SCR-CARR 1/4-20X.375

$

$

Not available

50

Troy-Bilt GW-80046

HANGER-RT WHL PNT

$

$

Currently unavailable

51

MTD GW-80047

HANGER-LT WHL PNT

$

$

Not available

52

Troy-Bilt GW-80163

ASSM-TIRE&WHL FRONT

$

$

Not available

53

Troy-Bilt GW-90023

SCR-SHLDR 3/8-16X1.406

$

$

Currently unavailable

54

Troy-Bilt GW-9004

SPROCKET-21T

$

$

Currently unavailable

55

MTD GW-80044

WELD-BELLCRANK PLATED

$

$

Not available

56

MTD GW-T27503

BEARING-SLEEVE

$

$

Not available

57

Troy-Bilt GW-T242413

STICKER-BLADE BAIL

$

$

Currently unavailable

58

MTD GW-97004

PIN-COTTER .09X.75 ZP

$

$

Not available

59

Troy-Bilt GW-T24542

JOINT-BALL

$

$

Currently unavailable

60

MTD GW-97002

PIN-CLEVIS .248X1.0 ZP

$

$

Not available

61

Troy-Bilt GW-92000

NUT-HEX/JAM 3/8-24 ZP
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

62

MTD GW-97095

BUSHING-.62X.5X.43 FLNG

$

$

Not available

63

MTD GW-T242158

LATCH-TOGGLE

$

$

Not available

64

MTD GW-80142

FRAME-22" WELD PNT

$

$

Not available

65

MTD GW-90027

SCR-HHCS 5/16-18X7/8GR5

$

$

Not available

66

Troy-Bilt GW-90018

SCR-HH 3/8-16X4.5 G5
(Superseded to 710-0693)

$14.99

$

In Stock, only 2 left!

0

67

MTD GW-T13235

SHIM-WASHER

$

$

Not available

68

MTD GW-T239706

TUBE-PIVOT

$

$

Not available

69

MTD GW-80063

ARM-IDLER W/BUSHINGS (INCL. 2 BEARINGS NO 56)

$

$

Not available

70

MTD GW-T213158

TRUNNION

$

$

Not available

71

Troy-Bilt GW-9317

PIN-COTTER .094X1.0

$3.99

$

Usually ships in 3-6 days

0

72

MTD GW-T230178

PULLEY-IDLER

$

$

Not available

73

Troy-Bilt GW-90022

SCR-SELFTAP 5/16-18X5/8
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

74

Troy-Bilt GW-90007

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

75

Troy-Bilt GW-9966

SCR-HH 5/16-18X2.25 G5ZP
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

76

Troy-Bilt GW-90007

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

77

MTD GW-T241439

SPACER-.625X.387X1.0 ZP

$

$

Not available

78

Troy-Bilt GW-80091

ASSM-DECK TOP 22" (INCL. 79-82)

$

$

Currently unavailable

79

Troy-Bilt GW-80165

DECAL-LOGO 22"

$

$

Currently unavailable

80

MTD GW-80076

DECAL-WARNING PROCEDURES

$

$

Not available

81

MTD GW-T240226

DECAL-CAUTION BELT COVER

$

$

Not available

82

MTD GW-80073

DECAL-DANGER GUARD

$

$

Not available

83

Troy-Bilt GW-80068

WRAP-FRONT 22" PNT

$

$

Currently unavailable

84

MTD GW-9828

NUT W/LKWASHER 10-24 ZP

$

$

Not available

85

Troy-Bilt GW-80067

WRAP-LH PNT

$

$

Currently unavailable

86

Troy-Bilt GW-90015

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

87

MTD GW-90024

SCR-HW M10-16X.75 SELT DR

$

$

Not available

88

MTD GW-80060

BUMPER-22" PNT

$

$

Not available

89

Troy-Bilt GW-9803

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt GW-9914

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

91

Troy-Bilt GW-94019

WASHER-#10 TYPE B PLN ZP
(Superseded to 736-0931)

$4.99

$

In Stock, only 1 left!

0

92

Troy-Bilt GW-9900

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

93

Troy-Bilt GW-80168

COVER-BELT 22" TROY-BILT

$

$

Currently unavailable

93

Troy-Bilt GW-56001

KIT-SVC 22" BELT COVER TUFF-CUT

$

$

Currently unavailable

94

Troy-Bilt GW-80164

PLATE-NAME TROY-BILT

$

$

Currently unavailable

94

MTD GW-T242176

PLATE-NAME 22" TUFF-CUT

$

$

Not available

95

MTD GW-97000

RIVET-POPOP

$

$

Not available

95A

MTD GW-94009

WASHER-RIVETING

$

$

Not available

96

Troy-Bilt GW-97001

RING-HEAVY EXT .575 ID
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

97

MTD GW-94003

WASHER-1.0X.632X.03 ZP

$

$

Not available

98

MTD GW-T239761

ROLLER-DRIVE

$

$

Not available

99

Troy-Bilt GW-T239841

SPRING-DOWEL RETURN

$

$

Not available

100

MTD GW-T239840

PIN-DOWEL 1/4"

$

$

Not available

101

Troy-Bilt GW-T239633

RATCHET-RH MACH

$

$

Not available

102

Troy-Bilt GW-T239634

RATCHET-LH MACH

$

$

Currently unavailable

103

Troy-Bilt GW-97005

PIN-ROLL 3/16 X 1.5
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

104

MTD GW-80022

PLATE-BEARING PNT

$

$

Not available

105

Troy-Bilt GW-97012

PIN-COTTER 1/8-1.00
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

106

Troy-Bilt GW-80102

KIT-PULLEY W/SCRS TC II (INCL. 3 SCREWS NO. 73)

$

$

Not available

107

Troy-Bilt GW-80159

SHAFT-DRIVE POLISHED 22"

$

$

Currently unavailable

108

Troy-Bilt GW-97018

RING-RETAINING "E"
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

109

Troy-Bilt GW-80065

ROD-TRAC DR LINK PNT

$

$

Currently unavailable

110

MTD GW-97009

CLIP-HITCH PIN #13 PL

$

$

Not available

111

Troy-Bilt GW-90012

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

112

Troy-Bilt GW-94006

SPACER-.390X.630X.281

$

$

Not available

113

MTD GW-80021

BRKT-TRACTION DR PNT

$

$

Not available

114

MTD GW-T238343

CHAIN #35-46 PITCHES

$

$

Not available

115

Troy-Bilt GW-80017

BRKT-JACKSFT MTG PNT

$

$

Currently unavailable

116

Troy-Bilt GW-80066

JACKSFT-WELD HEAT TREAT

$

$

Currently unavailable

117

Troy-Bilt GW-T17320

BEARING
(Superseded to 741-0145)

$42.99

$

In Stock, only 2 left!

0

118

Troy-Bilt GW-97016

RING-RETAINING EXTERNAL

$

$

Not available

119

Troy-Bilt GW-97007

KEY-HI PRO 1/8X1/2

$

$

Currently unavailable

120

Troy-Bilt GW-T240086

PULLEY-WHEEL DRIVE

$

$

Currently unavailable

121

MTD GW-90016

SCR-SET 1/4-20X1/4

$

$

Not available

122

MTD GW-80015

BRKT-U CHANNEL PNT

$

$

Not available

123

MTD GW-97006

PIN-ROLL 1/4X1/2

$

$

Not available

124

MTD GW-94000

WASHER

$

$

Not available

125

MTD GW-T239734

SPRING-WHEEL OR RETURN

$

$

Not available

126

MTD GW-T239750

SPRING-SPINDLE BRAKE

$

$

Not available

127

MTD GW-T239708

ROD-BRAKE ENGAGEMENT

$

$

Not available

128

MTD GW-T242200

BRAKE BAND & LINING

$

$

Not available

129

Troy-Bilt GW-97010

PIN-COTTER 1/8X3/4

$

$

Currently unavailable

130

MTD GW-80137

KIT-SPINDLE TUFFCUT I&II (INCL. PULLEY NO 106 & SPINDLE MOUNTING HARDWARE)

$

$

Not available

131

Troy-Bilt GW-T239632

BLADE-22" TUFFCUT NLA

$

$

Currently unavailable

132

Troy-Bilt GW-9202

TIE-RED
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

133

MTD GW-80007

GUIDE-BELT PNT

$

$

Not available

134

Troy-Bilt GW-T241589

WASHER-BELLEVILLE 3/8

$

$

Currently unavailable

135

Troy-Bilt GW-90025

SCR-HH 3/8-24 X 1.5" G8

$

$

Currently unavailable

136

Troy-Bilt GW-9808

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

137

RIVET (SEE REF NO. 139)

$

$

Not available

138

TOGGLE SPRING (SEE REF NO 139)

$

$

Not available

139

MTD GW-80089

BAIL W/SPRING (INCL. 138 & 138)

$

$

Not available

140

MTD GW-80030

ASSM-WHEEL DR HANDLE (INCL. 141)

$

$

Not available

141

MTD GW-T242412

STICKER-TRACTION BAIL

$

$

Not available

142

Troy-Bilt GW-97013

RING-RETAINING EXTERNAL
(Superseded to GW-9516)

$4.49

$

In Stock, only 4 left!

0

143

MTD GW-80024

ASSM-WHL DR LEVER W/GRIP (INCL. 18)

$

$

Not available

144

Troy-Bilt GW-97015

RING-RETAINING EXTERNAL

$

$

Currently unavailable

145

Troy-Bilt GW-T242170

LINK-HANDLE

$

$

Currently unavailable

146

MTD GW-97011

PIN-CLEVIS

$

$

Not available

147

MTD GW-80027

CLEVIS (PLATED)

$

$

Not available

148

MTD GW-90020

SCR-PHP 10-24X.625 ZP

$

$

Not available

149

Troy-Bilt GW-20546

WASHER-#.88X.51X.063 ZP

$

$

Not available

150

MTD GW-97017

PIN-CLEVIS

$

$

Not available

151

MTD GW-80045

ADJ-BLOCK PLATED

$

$

Not available

152

Troy-Bilt GW-90002

SCR-SELF TAP

$

$

Currently unavailable

153

MTD GW-80006

PIPE-EXHAUST EXT PNT

$

$

Not available

154

MTD GW-T236347

PIPE-OIL DRAIN

$

$

Not available

155

Troy-Bilt GW-9726

PLUG-PIPE 1/4 NPT
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

156

Troy-Bilt GW-80090

SHROUD-CNTRL W/DECAL (INCL. 157)

$

$

Currently unavailable

157

MTD GW-T242414

STICKER-OPER INST

$

$

Not available

158

MTD GW-90003

SCR-PH PLPS 3/16-24X1/2

$

$

Not available

159

MTD GW-T242191

BRACE-PANEL

$

$

Not available

160

Troy-Bilt GW-9831

NUT-HFLK 3/8-16 ZP
(Superseded to 1186393)

$3.49

$

In Stock, only 2 left!

0

161

MTD GW-94004

SPACER-.640X7/8X1/8LEDLOY

$

$

Not available

Troy-Bilt GW-9848

NUT-HFLK 5/16-18 ZP (NOT SHOWN)
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0
