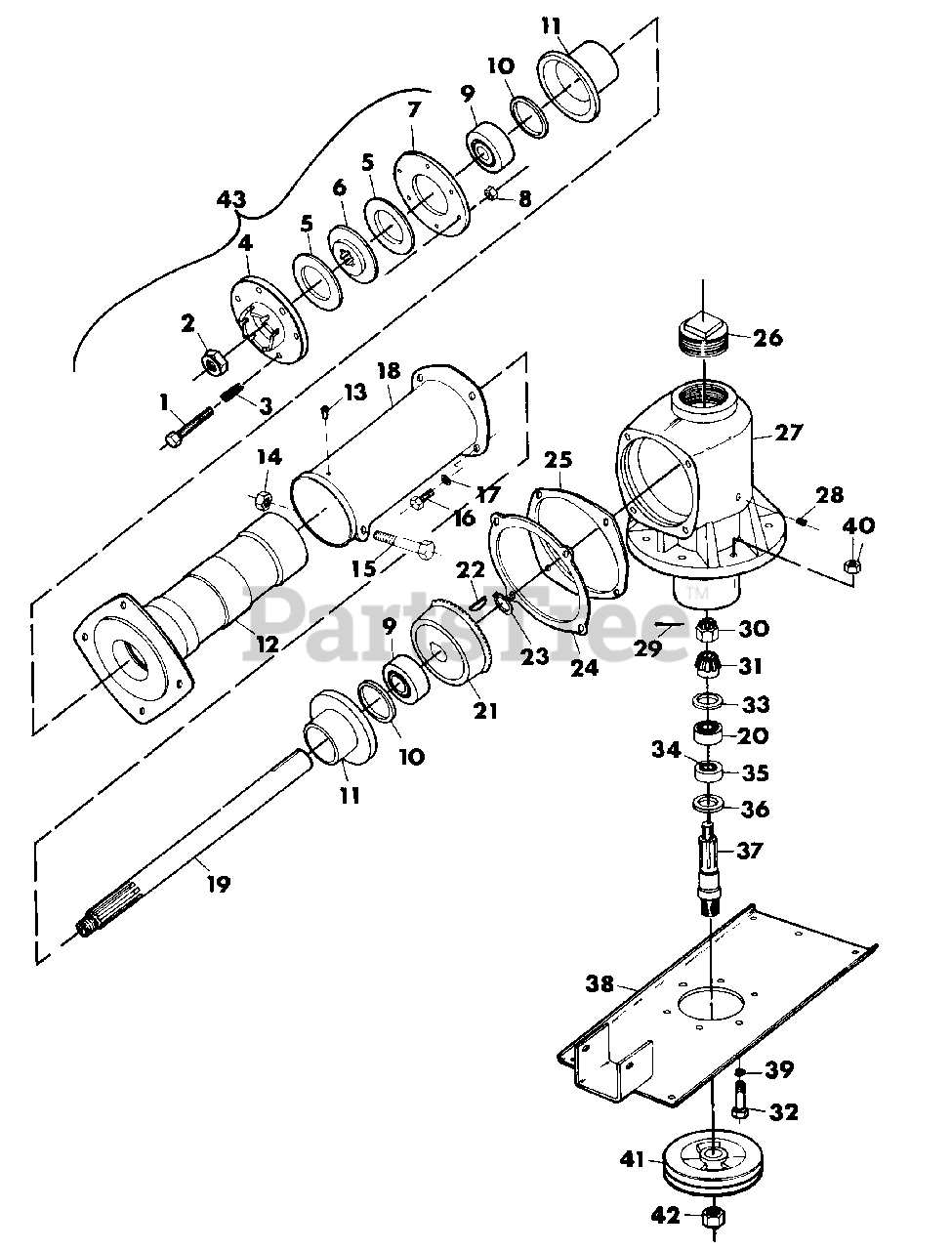

11362 - Gravely 40" Deck Drive for Commercial 2-Wheel Tractor MOWER DRIVE Parts Diagram

40" Deck Drive for Commercial 2-Wheel Tractor

MOWER DRIVE Parts Diagram

  • Title
1

Gravely 181618

BOLT, HEX 5/16-24X1.75
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

2

Gravely 013412

NUT, LOCK 5/8-18 LIGHT THIN
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 012871

SPRING
(Superseded to 08354000)

$9.49

$

Usually ships in 4-12 days

0

4

Gravely 012867

PLATE, DOG
(Superseded to 08592400)

$245.99

$

Usually ships in 4-12 days

0

5

Gravely 012870

WASHER, FRICTION
(Superseded to 58501300)

$

$

Not available

6

Gravely 012869

PLATE, DRIVE
(Superseded to 08592600)

$

$

Not available

7

Gravely 012868

PLATE, BACK
(Superseded to 08592500)

$42.99

$

Usually ships in 4-12 days

0

8

Gravely 124920

NUT, JAM 5/16-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

9

Gravely 013143

BEARING, RACE
(Superseded to 05429400)

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 013144

BEARING, CONE
(Superseded to 05429500)

$

$

Not available

10

Gravely 013122

SEAL, OIL
(Superseded to 05622100)

$12.99

$

Usually ships in 4-12 days

0

11

Gravely 012550

RETAINER, OIL SEAL
(Superseded to 08589100)

$

$

Not available

12

Gravely 011815

HOUSING, SHAFT
(Superseded to 08585700)

$

$

Not available

13

Gravely 411010

FITTING, LUBE 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 012023

CASTING, SWIVEL
(Superseded to 08587700)

$

$

Not available

19

Gravely 012566

SHAFT, DRIVE
(Superseded to 08589300)

$

$

Not available

20

Gravely 013145

BEARING, ROLLER RACE
(Superseded to 05429600)

$

$

Not available

20

Gravely 013146

BEARING, ROLLER CONE
(Superseded to 05429700)

$77.99

$

Usually ships in 4-12 days

0

21

Gravely 012862

GEAR, BEVEL
(Superseded to 08592100)

$

$

Not available

22

Gravely 120502

KEY, WOODRUFF .187X.875 HARD #11
(Superseded to 06608200)

$3.99

$

In Stock, only 1 left!

0

23

Gravely 013187

RING, RETAINING
(Superseded to 05716400)

$

$

Not available

24

Gravely 014101

SHIM, GEAR .020
(Superseded to 08582000)

$

$

Not available

24

Gravely 012490

SHIM, GEAR HOUSING .005
(Superseded to 08582000)

$

$

Not available

25

Gravely 012491

GASKET
(Superseded to 08582500)

$11.99

$

In Stock, only 3 left!

0

26

Gravely 010499

PLUG, PIPE 2 IN. 2/FILLER PLUG
(Superseded to 08580700)

$

$

Not available

27

Gravely 009236

HOUSING, 42 IN. MOWER GEAR
(Superseded to 08578400)

$

$

Not available

28

Gravely 103877

PLUG, PIPE 1/8 IN.
(Superseded to 07023700)

$

$

Not available

29

Gravely 119120

PIN, COTTER .094X1.25
(Superseded to 06713400)

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 125384

NUT, SLOTTED 5/8-18
(Superseded to 06523900)

$3.49

$

In Stock, only 1 left!

0

31

Gravely 012850

GEAR, BEVEL
(Superseded to 08591500)

$

$

Not available

32

Gravely 009229

BOLT, HEX SPECIAL
(Superseded to 07013200)

$

$

Not available

33

Gravely 012852

SHIM, GEAR
(Superseded to 08591600)

$

$

Not available

33

Gravely 013646

SHIM, GEAR .010
(Superseded to 06432100)

$

$

Not available

34

Gravely 013142

BEARING, ROLLER CONE
(Superseded to 05429300)

$71.99

$

Usually ships in 4-12 days

0

35

Gravely 013139

BEARING, ROLLER RACE
(Superseded to 05429200)

$20.99

$

Usually ships in 4-12 days

0

36

Gravely 013171

SEAL, OIL(DUAL LIP)
(Superseded to 05622200)

Note: (DUAL LIP)

$14.99

$

Usually ships in 4-12 days

0

37

Gravely 011363

SHAFT, DRIVE ROTOR
(Superseded to 08584400)

$

$

Not available

38

Gravely 011366

PLATE, MOUNTING WELDMENT
(Superseded to 08584700)

$

$

Not available

39

Gravely 120384

WASHER, LOCK 1/2
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

40

Gravely 120238

NUT, JAM 1/2-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 011364

SHEAVE, 1/2X6 DOUBLE GROOVE
(Superseded to 08584500)

$

$

Not available

42

Gravely 011365

NUT, SPECIAL
(Superseded to 07016300)

$

$

Not available

43

Gravely 010102

ASSEMBLY, CLUTCH ATTACHMENT
(Superseded to 08578500)

$

$

Not available
