1136 (136-518-100) - Cub Cadet Rear-Engine Riding Mower (1986) 36" Rear Discharge Mowing Deck Part 1 Parts Diagram

Rear-Engine Riding Mower

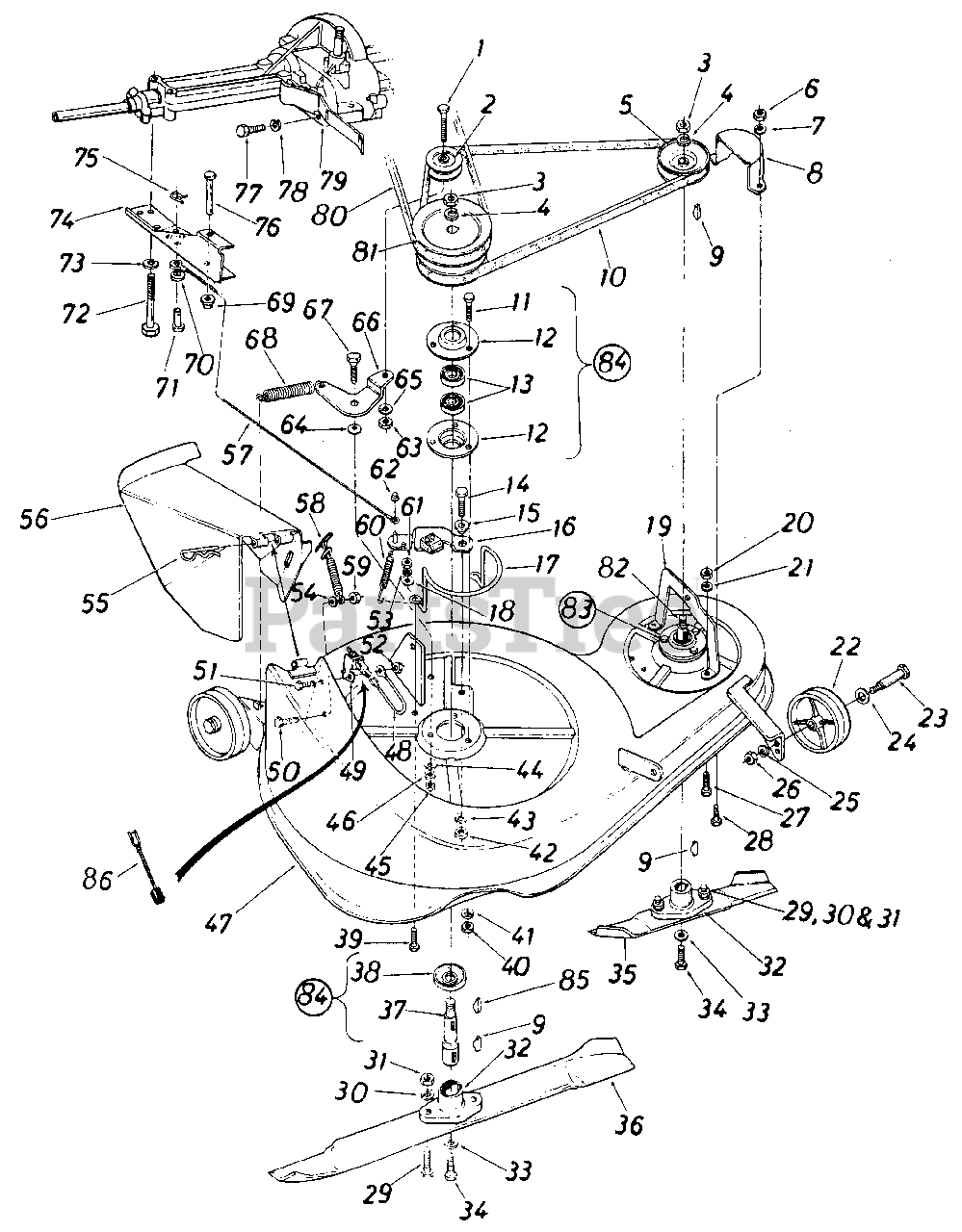

36" Rear Discharge Mowing Deck Part 1 Parts Diagram

  • Title

1

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

2

Cub Cadet 756-0116

PULLEY-V-BELT IDLER
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0318

NUT-HEX JAM 5/8-18

$3.49

$

In Stock, Qty 12

0

4

Cub Cadet 736-0317

WASHER-BELL

$7.99

$

In Stock, Qty 20+

0

5

Cub Cadet 756-0407

PULLEY

$

$

Not available

6

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

8

Cub Cadet 11987

COVER-BELT GUARD

$

$

Not available

9

Cub Cadet 714-0365

KEY-HI-PRO #6-5/32 X 5/8 DIA

$5.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 754-0250

BELT-V 1/2 X 53
(Superseded to 954-0250)

$

$

Not available

11

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 08253

HOUSING-BRG
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

13

Cub Cadet 741-0919

BEARING-BALL
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0376

SCREW-HEX 5/16-18 X 1.00

$3.99

$

In Stock, Qty 5

0

15

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 16053

BRACKET ASSY

$

$

Not available

17

Cub Cadet 747-0465

GUARD-BELT

$

$

Not available

18

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 15736

BRACKET-DECK

$

$

Currently unavailable

20

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 734-0973

WHEEL-PLAS. 5X1.38

$12.99

$

In Stock, Qty 20+

0

23

Cub Cadet 738-0414

SCREW-SHLD

$

$

Not available

24

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

27

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0117

SCREW-HEX SPECIAL 5/16-24X1.0
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

32

Cub Cadet 748-0189

ADAPTER-BLADE

$

$

Not available

33

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 8

0

34

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

35

Cub Cadet 742-0206

BLADE-13IN

$

$

Not available

36

Cub Cadet 742-0267

BLADE-24IN

$

$

Not available

37

Cub Cadet 738-0568

SPINDLE-BLADE

$

$

Not available

38

Cub Cadet 13703

SHIELD-BRG

$

$

Not available

39

Cub Cadet 710-0118

SCREW-HEX 5/16-18 X .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 15741

DECK ASSEMBLY-36 IN

$

$

Currently unavailable

48

Cub Cadet 725-0765

WIRE-REV LOCKOUT

$

$

Not available

49

Cub Cadet 725-1001

SWITCH

$

$

Not available

50

Cub Cadet 710-0286

SCREW-TRUSS MACH 1/4-20 X .50

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

53

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

55

Cub Cadet 714-0155

PIN-COTTER
(Superseded to 714-0174)

$

$

Not available

56

Cub Cadet 15990

DEFLECTOR-CHUTE

$

$

Not available

57

Cub Cadet 727-0295

CABLE ASSY-BRAKE

$

$

Not available

58

Cub Cadet 723-0296

LOCK ASSY-HOOD

$

$

Not available

59

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

60

Cub Cadet 732-0157

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, Qty 12

0

64

Cub Cadet 736-0159

WASHER-FL-.344 ID X .88 OD X .063

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 16420

BRACKET-IDLER

$

$

Currently unavailable

67

Cub Cadet 738-0297

SCREW-SHLD
(Superseded to 938-0297)

$

$

Not available

68

Cub Cadet 732-0199

SPRING-EXTENSION

$

$

Not available

69

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 736-0142

WASHER-FL-.281 ID X .50 OD X .063

$4.99

$

In Stock, Qty 20+

0

71

Cub Cadet 711-0701

PIN-CLEVIS-1/4X1/2
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

72

Cub Cadet 710-0176

SCREW-HEX 5/16-18 X 2.75

$4.49

$

In Stock, only 2 left!

0

73

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

74

Cub Cadet 15625

GUARD-BELT-LOWER

$

$

Not available

75

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

76

Cub Cadet 710-0586

PIN-WELD

$

$

Not available

77

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

79

Cub Cadet 15997

GUARD-BELT

$

$

Not available

80

Cub Cadet 754-0214

BELT-V 1/2 X 50
(Superseded to 954-0214)

$

$

Not available

81

Cub Cadet 756-0409

PULLEY

$

$

Currently unavailable

82

Cub Cadet 738-0567

SPINDLE-BLADE

$

$

Not available

83

Cub Cadet 717-0809

SPINDLE

$

$

Not available

84

Cub Cadet 717-0810

SPINDLE ASSY-BLADE

$

$

Not available

85

Cub Cadet 714-0388

KEY-3/16 X 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

86

Cub Cadet 725-1037

WIRE

$

$

Not available

Cub Cadet 15740

DECK ASSY-36IN-COMP

$

$

Currently unavailable
