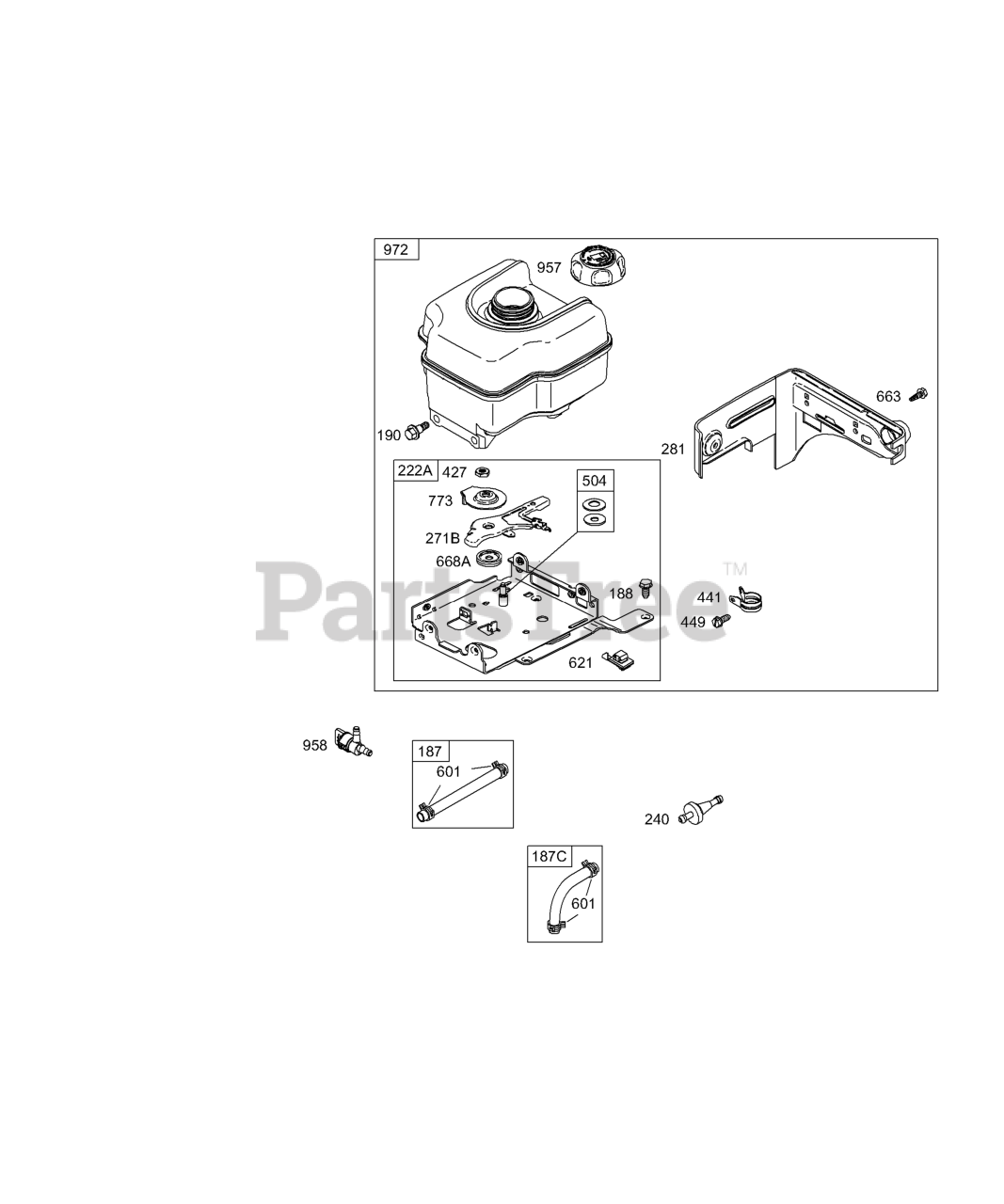

113432-0134-E1 - Briggs & Stratton Horizontal Engine Fuel Tank Parts Diagram

Horizontal Engine

Fuel Tank Parts Diagram

  • Title

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Straight)(Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187C

Briggs & Stratton 694486

Line-Fuel
(Superseded to 791866)

Note: (Molded)

$24.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, Qty 5

0

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

222A

Briggs & Stratton 694253

Bracket-Control
(Superseded to 793107)

$45.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 694485

Filter-Fuel
(Superseded to 595824)

$15.99

$

In Stock, only 1 left!

0

271B

Briggs & Stratton 694256

Lever-Control

$19.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 694252

Panel-Control
(Superseded to 793122)

$35.99

$

Usually ships in 2-12 days

0

427

Briggs & Stratton 694255

Nut

Note: (Control Bracket)

$3.49

$

In Stock, only 1 left!

0

441

Briggs & Stratton 694262

Bracket-Oil Fill

$10.99

$

Usually ships in 2-12 days

0

449

Briggs & Stratton 691693

SCREW

Note: (Oil Fill Bracket)

$3.99

$

In Stock, Qty 12

0

504

Briggs & Stratton 694254

Washer Set-Friction
(Superseded to 695383)

Note: (2 Piece)

$10.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

663

Briggs & Stratton 694593

Screw
(Superseded to 691693)

Note: (Control Panel) (23/64" Long)

$3.99

$

In Stock, Qty 12

0

668A

Briggs & Stratton 694257

Spacer

Note: (Control Bracket)

$4.99

$

In Stock, only 1 left!

0

773

Briggs & Stratton 694258

Retainer

Note: (Control Bracket)

$4.49

$

In Stock, only 1 left!

0

957

Briggs & Stratton 694261

Cap-Fuel Tank
(Superseded to 792647)

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 692586

Valve-Fuel Shut Off
(Superseded to 698180)

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic)

$89.99

$

In Stock, Qty 10

0
