113432-0117-E1 - Briggs & Stratton Horizontal Engine Air Cleaner Group, Muffler Parts Diagram

Horizontal Engine

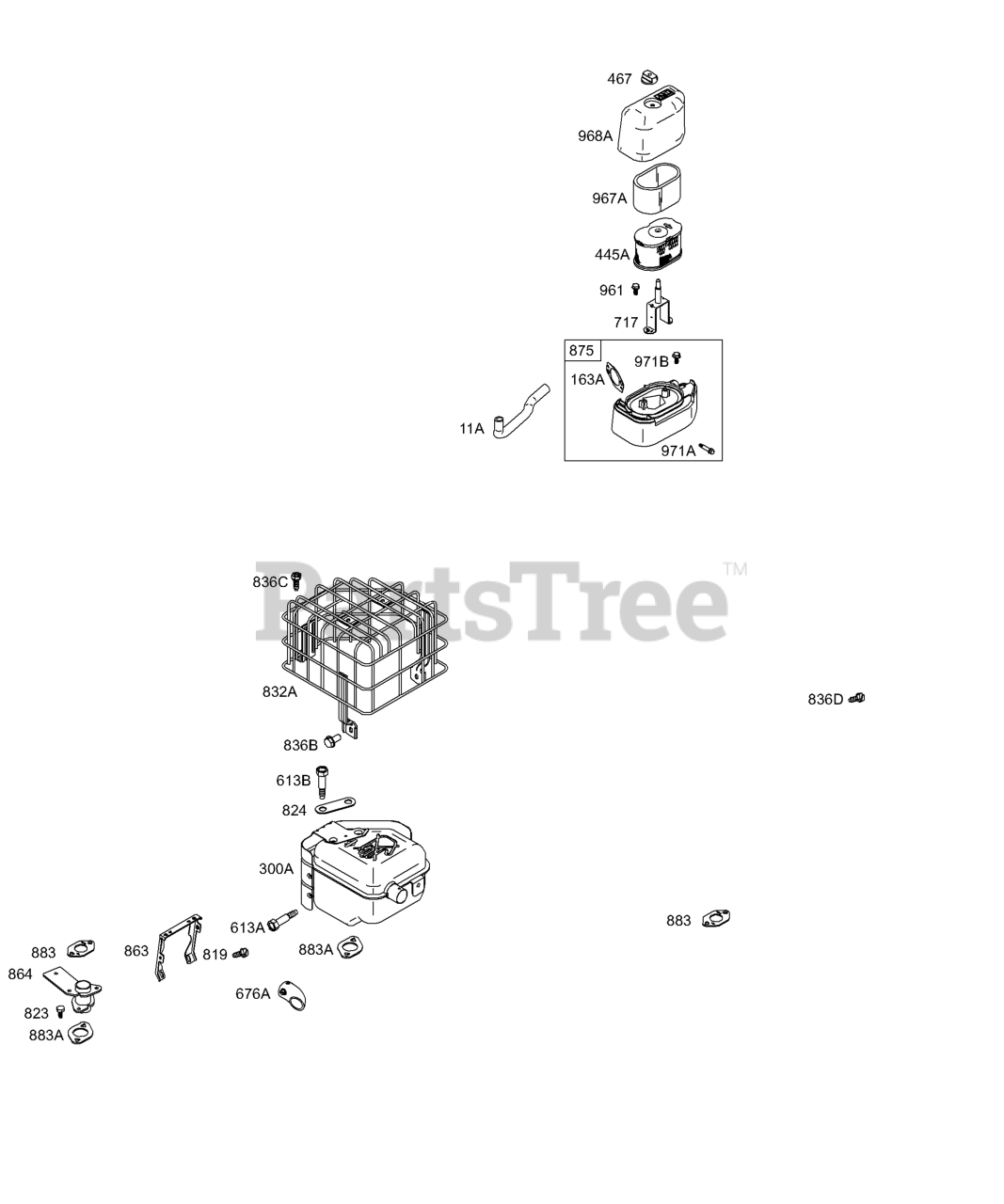

Air Cleaner Group, Muffler Parts Diagram

  • Title

11A

Briggs & Stratton 693647

Tube-Breather

Note: (High Mount Air Cleaner)

$10.99

$

In Stock, only 1 left!

0

163A

Briggs & Stratton 693458

Gasket-Air Cleaner

Note: (High Mount)

$5.99

$

In Stock, Qty 7

0

300A

Briggs & Stratton 694429

Muffler

Note: (Super Lo Tone)

$54.99

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 697029

Filter-Air Cleaner Cartridge

Note: (High Mount)

$13.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 691668

Knob-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 694460

Screw

Note: (Muffler)

$18.99

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 691108

SCREW

Note: (Muffler)

$3.49

$

In Stock, Qty 20+

0

676A

Briggs & Stratton 696029

Deflector-Muffler

$24.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 693462

Bracket-Air Cleaner

$8.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 691685

Screw

Note: (Muffler Bracket)

$3.99

$

In Stock, Qty 6

0

823

Briggs & Stratton 691665

Screw

Note: (Muffler Adapter)

$7.99

$

In Stock, only 4 left!

0

824

Briggs & Stratton 696017

Gasket-Heat Shield

$13.99

$

In Stock, only 1 left!

0

832A

Briggs & Stratton 694459

Guard-Muffler
(Superseded to 697818)

Note: (Used With Super Lo Tone Muffler)

$53.99

$

Usually ships in 2-12 days

0

836B

Briggs & Stratton 691003

SCREW

Note: (Muffler Guard)

$3.49

$

In Stock, Qty 9

0

836C

Briggs & Stratton 691665

Screw

Note: (Muffler Guard)

$7.99

$

In Stock, only 4 left!

0

836D

Briggs & Stratton 696519

Screw

Note: (Muffler Guard)

$2.49

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 692596

Bracket-Muffler
(Superseded to 699229)

$24.99

$

Usually ships in 2-12 days

0

864

Briggs & Stratton 694430

Adapter-Muffler
(Superseded to 699232)

$37.99

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 693459

Base-Air Cleaner

Note: (Plastic) (High Mount)

$

$

Not available

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: (Between Adapter And Head)

$4.49

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 697815

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

961

Briggs & Stratton 693598

Screw
(Superseded to 698304)

Note: (Air Cleaner Bracket)

$3.49

$

Usually ships in 2-12 days

0

967A

Briggs & Stratton 273356S

Filter-Pre Cleaner

Note: (High Mount)

$5.49

$

In Stock, Qty 10

0

968A

Briggs & Stratton 693460

Cover-Air Cleaner

Note: (High Mount)

$24.99

$

In Stock, only 1 left!

0

971A

Briggs & Stratton 690349

Screw

Note: (Air Cleaner Base to Carburetor)

$6.99

$

In Stock, only 1 left!

0

971B

Briggs & Stratton 691693

SCREW

Note: (Air Cleaner Base to Carburetor)

$3.99

$

In Stock, Qty 12

0
