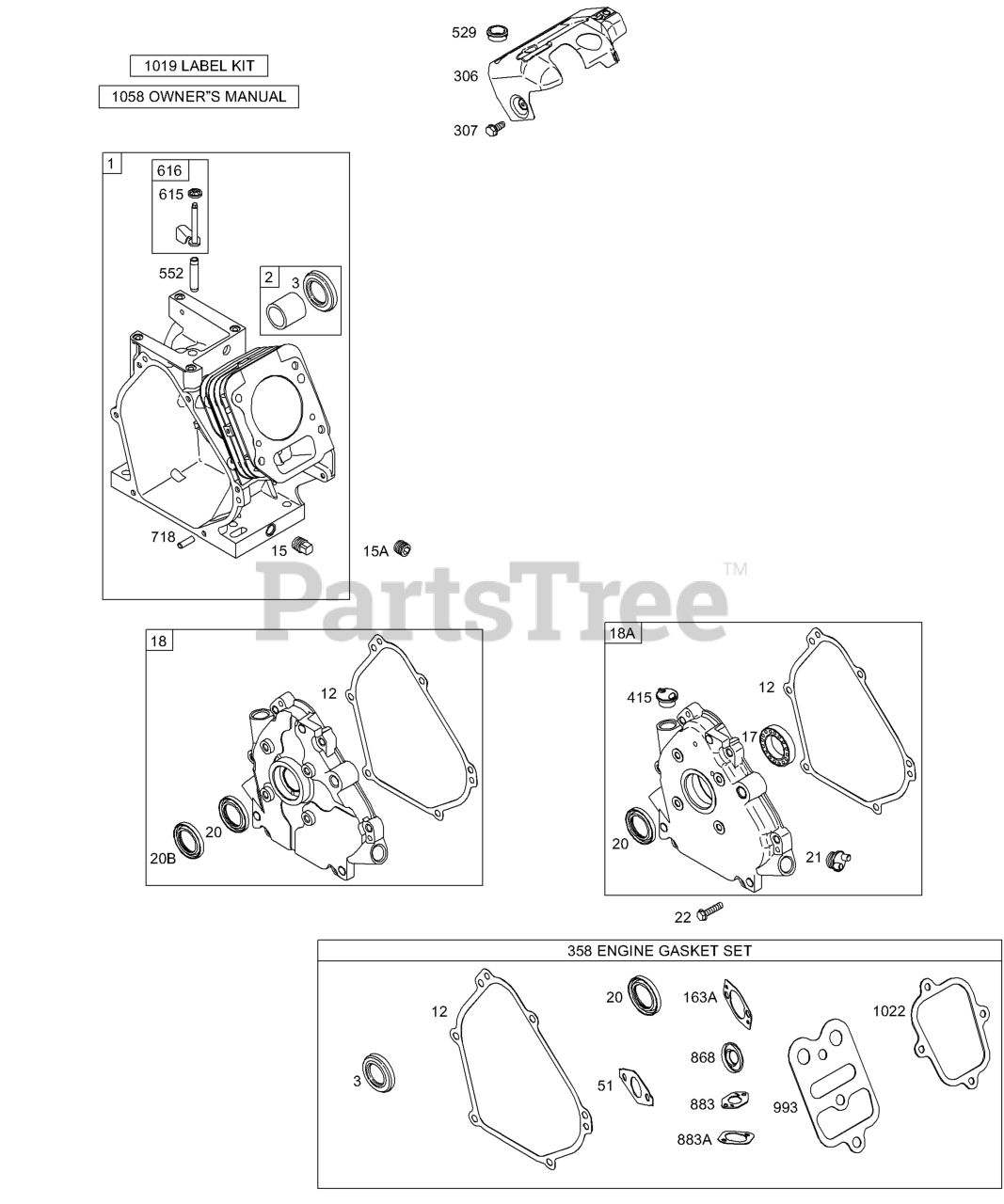

113432-0115-E1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump, Cylinder, Kits/Gasket Sets - Engine Parts Diagram

Horizontal Engine

Crankcase Cover/Sump, Cylinder, Kits/Gasket Sets - Engine Parts Diagram

  • Title

1

Briggs & Stratton 690045

Cylinder Assembly
(Superseded to 699505)

$255.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 13

0

12

Briggs & Stratton 692549

Gasket-Crankcase
(Superseded to 699485)

$8.99

$

In Stock, Qty 16

0

15

Briggs & Stratton 691686

PLUG, Oil Drain

Note: (Square Head)

$5.49

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 691682

Plug-Oil Drain

Note: (Hex Socket)

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 692517

Bearing-Ball
(Superseded to 798538)

$31.99

$

Usually ships in 2-12 days

0

18A

Briggs & Stratton 690047

Cover-Crankcase
(Superseded to 699672)

$199.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

20B

Briggs & Stratton 694171

Seal-Oil

Note: (PTO Side)

$27.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692551

Screw

Note: (Crankcase Cover/Sump)

$3.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692555

Gasket-Intake

$3.99

$

In Stock, Qty 7

0

163A

Briggs & Stratton 693458

Gasket-Air Cleaner

Note: (High Mount)

$5.99

$

In Stock, Qty 7

0

306

Briggs & Stratton 693610

Shield-Cylinder
(Superseded to 795334)

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 695155

Gasket Set-Engine
(Superseded to 698216)

$69.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 693463

Plug

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 692553

Grommet

$3.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 692346

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

Retainer-Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

$9.49

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, Qty 9

0

883

Briggs & Stratton 691893

Gasket-Exhaust

Note: (Between Adapter And Head)

$4.49

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 697815

Gasket-Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 2 left!

0

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1019

Briggs & Stratton 694851

Kit-Label

$33.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, only 2 left!

0

1058

Briggs & Stratton 275092

Manual-Owner's

$

$

Not available
