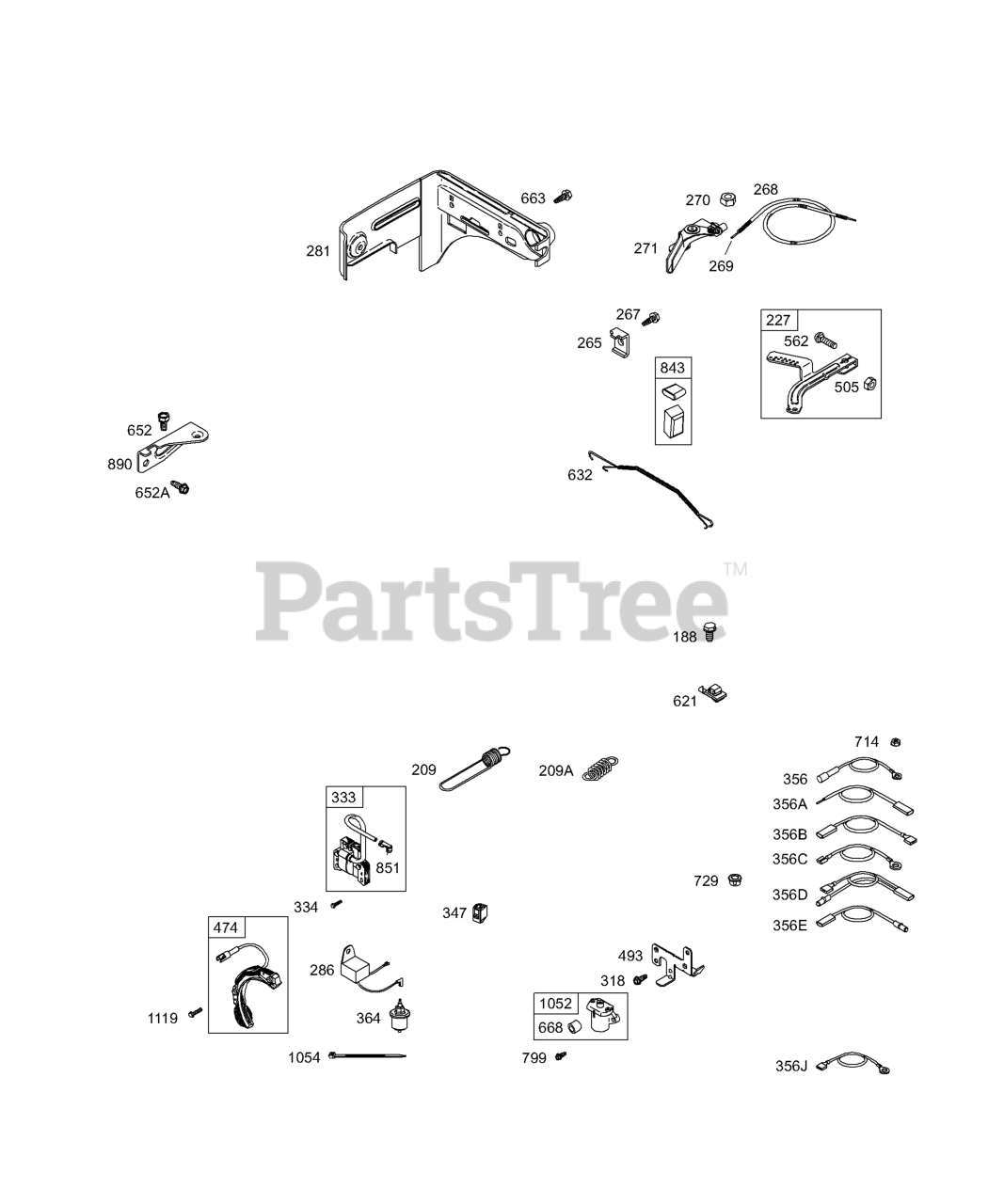

113432-0035-E1 - Briggs & Stratton Horizontal Engine Controls, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Controls, Governor Spring, Ignition Parts Diagram

  • Title
188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

209

Briggs & Stratton 693206

Spring-Governor

Note: (Yellow)

$7.49

$

In Stock, only 1 left!

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 6

0

267

Briggs & Stratton 692577

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 694252

Panel-Control
(Superseded to 793122)

$35.99

$

Usually ships in 2-12 days

0

286

Briggs & Stratton 697939

Module-Oil Sensor
(Superseded to 794185)

$61.99

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 693609

Screw

Note: (Mounting Bracket)

$2.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 697854

SWITCH, Rocker

Note: (3 Tines, ON/OFF Marking, 3 Position, Non-Lighted)

$13.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 693650

Wire-Stop

Note: (1 Wire, 6-1/4" Long)(Ring Terminal, And Push-On Insulated Pin Socket)

$8.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 692390

Wire-Stop

Note: (1 Wire, 17" Long)(Snap Connect Insulated Female Blade Terminal, AndBare Wire End)

$

$

Not available

356B

Briggs & Stratton 692602

Wire-Stop

Note: (1 Wire, 14" Long)(Snap Connect Insulated Female Blade Terminal, AndInsulated Push-On Female Blade Terminal)

$11.99

$

Usually ships in 2-12 days

0

356C

Briggs & Stratton 695630

WIRE, Stop

Note: (1 Wire, 6-1/2" Long)(Push-On Female Blade Terminal, And Ring Terminal)

$7.99

$

Usually ships in 2-12 days

0

356D

Briggs & Stratton 693651

Wire-Stop

Note: (2 Wires, 14" And 10" Long)(Snap Connect Insulated Female BladeTerminal, Insulated Push-On Female Blade Terminal, And Snap Connect

$11.99

$

Usually ships in 2-12 days

0

364

Briggs & Stratton 695693

Terminal-Oil Plug

$13.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 694457

Alternator
(Superseded to 793640)

$67.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 693599

Bracket-Mounting

Note: (Oil Sensor)

$4.49

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 94852

Bolt
(Superseded to 691119)

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

621

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 3 left!

0

652

Briggs & Stratton 691108

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, Qty 20+

0

652A

Briggs & Stratton 695629

SCREW

Note: (Support Bracket)

$3.49

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 694593

Screw
(Superseded to 691693)

Note: (Control Panel) (23/64" Long)

$3.99

$

In Stock, Qty 8

0

668

Briggs & Stratton 693604

Spacer

Note: (Oil Sensor)

$4.99

$

Usually ships in 2-12 days

0

714

Briggs & Stratton 693649

Nut

Note: (Wire Stop)

$2.99

$

Usually ships in 2-12 days

0

729

$4.49

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 693609

Screw

Note: (Oil Sensor)

$2.99

$

Usually ships in 2-12 days

0

843

$8.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

890

Briggs & Stratton 694933

Bracket-Support
(Superseded to 790203)

$5.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 696954

Sensor-Oil
(Superseded to 790141)

$61.99

$

Usually ships in 2-12 days

0

1054

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
