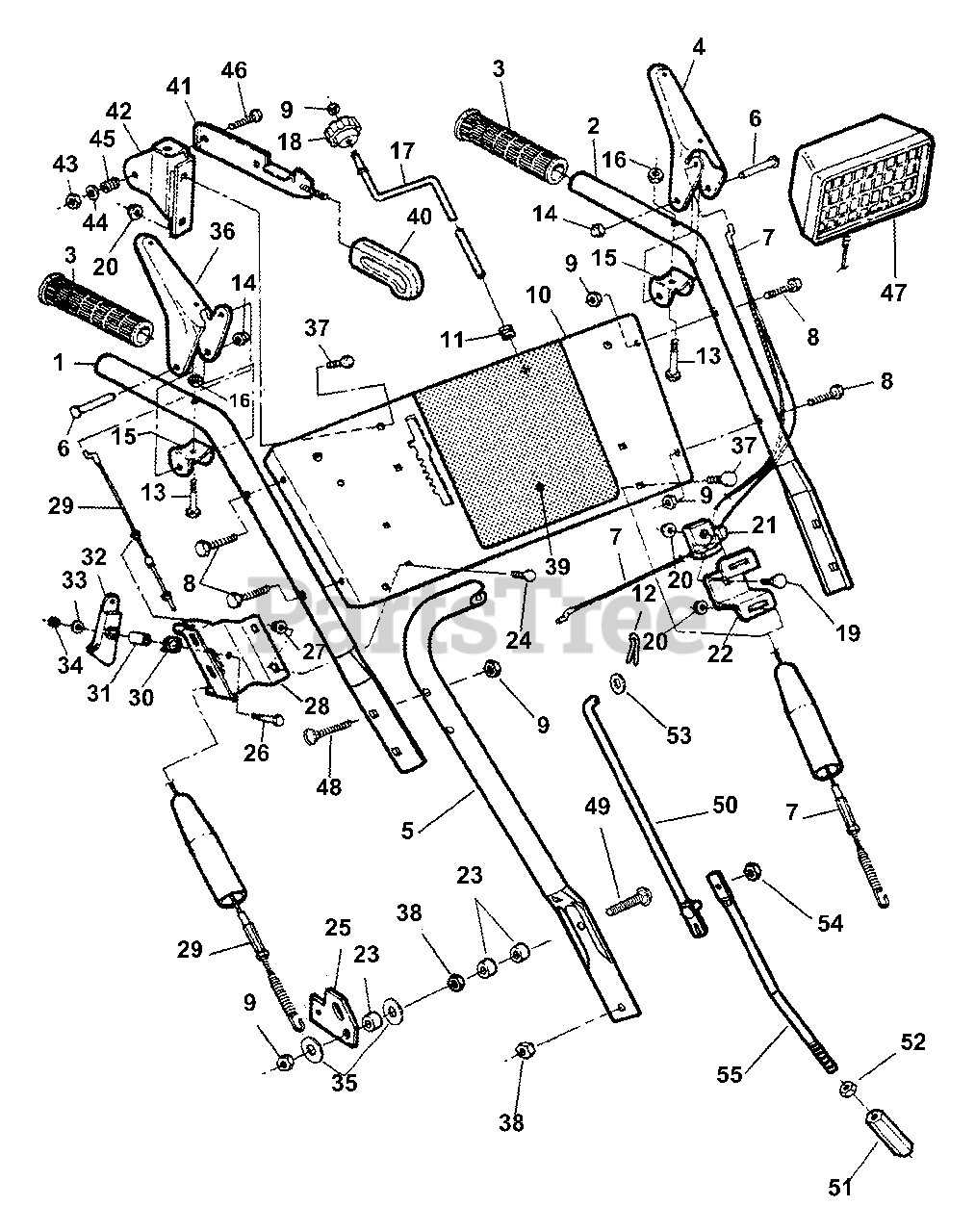

11306 (84715) - Snapper 30" Snow Thrower, 11hp Handle, Controls Parts Diagram

30" Snow Thrower, 11hp

Handle, Controls Parts Diagram

  • Title
1

Snapper 7074294

BAR, Handle (Right Side)
(Superseded to 7074294YP)

$23.99

$

Usually ships in 2-12 days

0

2

Snapper 7074295

BAR, Handle (Left Side)

$

$

Not available

3

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

4

Snapper 7032907

HANDLE, Left Side
(Superseded to 7032907YP)

$29.99

$

Usually ships in 2-12 days

0

5

Snapper 7074297

HANDLE BAR, Lower
(Superseded to 7074297YP)

$113.99

$

Usually ships in 2-12 days

0

6

Snapper 7016297

PIN, 1/4 x 1-7/8" Clevis

$

$

Not available

7

Snapper 7016311

CABLE, Left Side Clutch
(Superseded to 7016311YP)

$53.99

$

Usually ships in 2-12 days

0

8

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703906)

Note: Was 91066

$4.99

$

In Stock, only 4 left!

0

9

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade B
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 18

0

10

Snapper 7074487

PANEL, Control
(Superseded to 7074487YP)

$42.99

$

Usually ships in 2-12 days

0

11

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 11

0

12

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

13

Snapper 7091025

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 7091025YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7091020

NUT, 1/4" Push
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 6

0

17

Snapper 7074309

CRANK, Chute

$

$

Not available

18

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 1 left!

0

20

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 5

0

21

Snapper 7015960

GUIDE, Cable
(Superseded to 7015960YP)

$6.99

$

Usually ships in 2-12 days

0

22

Snapper 7032651

BRACKET, Cable Guide Support

$

$

Not available

23

Snapper 7013849

SPACER, 5/16"
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7091085

BOLT, #10-24 x 1/2" Flat Head Carriage
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7032910

LEVER, Clutch
(Superseded to 7032910YP)

$19.99

$

Usually ships in 2-12 days

0

26

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

27

Snapper 7090623

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7038352

BRACKET, Cam
(Superseded to 7038352YP)

$23.99

$

Usually ships in 2-12 days

0

29

Snapper 7016310

CABLE, Auger (Right Side)
(Superseded to 7016310YP)

$

$

Not available

30

Snapper 7015966

SPRING Cam Lock

$

$

Not available

31

Snapper 7015969

SPACER
(Superseded to 7015969YP)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper 7018980

LOCK, Cam
(Superseded to 7018980YP)

$92.99

$

Usually ships in 2-12 days

0

33

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

Note: Was 91099

$

$

Not available

35

Snapper 7016314

WASHER, 5/16 x 1-1/4" Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

36

Snapper 7032908

HANDLE, Right Side

$

$

Not available

37

Snapper 7091064

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

38

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

39

DECAL, Instruction (see decal pages)

$

$

Not available

40

Snapper 7016334

KNOB, Shift Handle
(Superseded to 7016334YP)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7040660

WELDMENT, Shift Handle

$

$

Not available

42

Snapper 7037962

BRACKET, Shift Lever
(Superseded to 7037962YP)

$20.99

$

Usually ships in 2-12 days

0

43

Snapper 7091606

NUT, 5/16-24 Hex Center Lock, Grade B
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

44

Snapper 7091076

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

45

Snapper 7023933

SPRING
(Superseded to 7023933YP)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7090244

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 7091513YP)

$4.49

$

In Stock, Qty 13

0

47

Snapper 7061191

KIT, Light Assembly (Rectangular)
(Superseded to 7061191YP)

$63.99

$

Usually ships in 2-12 days

0

48

Snapper 7090760

BOLT, 5/16-18 x 2", Square Neck Carriage, Grade 5

$

$

Not available

49

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Square Neck Carriage, Grade 5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

50

Snapper 7074312

ROD, Upper Shift
(Superseded to 7074312YP)

$84.99

$

In Stock, only 1 left!

0

51

Snapper 7016304

NUT, 3/8-16 x 1-13/16 Connector
(Superseded to 7016304YP)

$7.49

$

Usually ships in 2-12 days

0

52

Snapper 7091302

NUT, 3/8-16 Hex, Grade B
(Superseded to 7091302SM)

Note: Was 91071

$4.49

$

Usually ships in 2-12 days

0

53

Snapper 7091149

WASHER, 3/8" Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

54

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

55

Snapper 7074313

ROD, Lower Shift
(Superseded to 7074313YP)

$

$

Not available
