11306 (84715) - Snapper 30" Snow Thrower, 11hp Chain Case (Traction Drive) Parts Diagram

30" Snow Thrower, 11hp

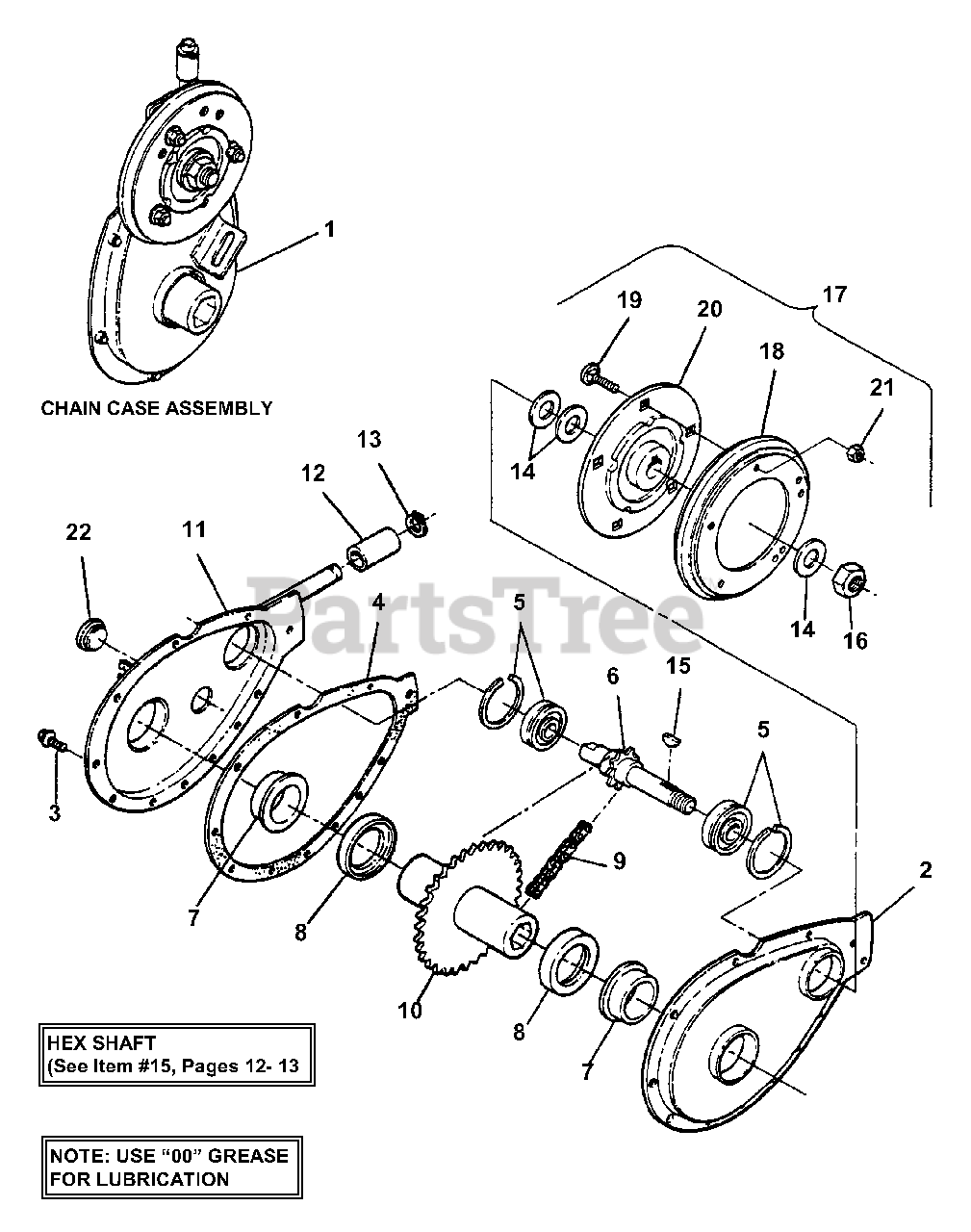

Chain Case (Traction Drive) Parts Diagram

  • Title

1

Snapper 7051269

ASSEMBLY, Chain Case
(Superseded to 7051269YP)

Note: (Includes Items 2 Thru 22)

$487.99

$

Usually ships in 2-12 days

0

2

Snapper 7033543

COVER, Sprocket

$

$

Not available

3

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

4

Snapper 7028761

GASKET
(Superseded to 7028761YP)

$24.99

$

In Stock, Qty 20+

0

5

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7010940

ASSEMBLY, Shaft & Sprocket
(Superseded to 7010940YP)

$93.99

$

Usually ships in 2-12 days

0

7

Snapper 7013881

BUSHING
(Superseded to 7013881YP)

$

$

Not available

8

Snapper 7013882

WASHER, Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 10

0

9

Snapper 7010941

CHAIN
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

10

Snapper 7040465

ASSEMBLY, Hub & Sprocket
(Superseded to 7040465YP)

$233.99

$

Usually ships in 2-12 days

0

11

Snapper 7047776

CHASE, Sprocket

$

$

Not available

12

Snapper 7020908

ROLLER
(Superseded to 7020908YP)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7010776

RING, 1/2" External Snap (Heavy Duty)
(Superseded to 7010776YP)

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7010614

KEY, 1/8 x 5/8" Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7050614

ASSEMBLY, Drive Disc
(Superseded to 7050614YP)

Note: (Includes Items 18 Thru 22)

$100.99

$

Usually ships in 2-12 days

0

18

Snapper 7010765

DISC, Driven (R/B 7018782)
(Superseded to 7018782SM)

$

$

Not available

19

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703798)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7020911

HUB
(Superseded to 7020911YP)

$73.99

$

Usually ships in 2-12 days

0

21

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7011024

PLUG
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0
