11301 - Troy-Bilt Vacu-Cut 21" Walk-Behind Mower (SN: 0100101 & Above) DECK AND DRIVE ASSY. Parts Diagram

Vacu-Cut 21" Walk-Behind Mower

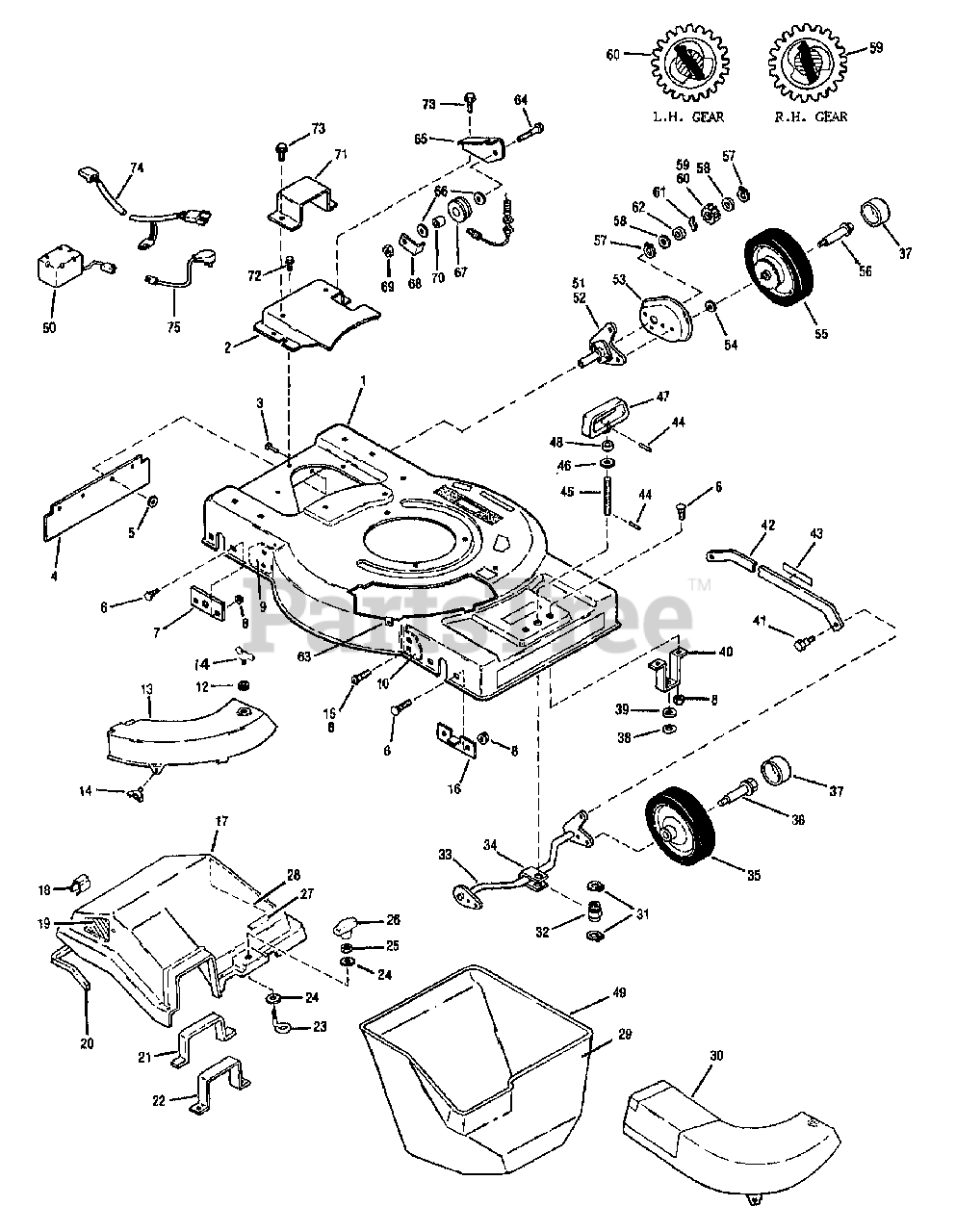

DECK AND DRIVE ASSY. Parts Diagram

  • Title
1

Troy-Bilt 1748772010

BASE-MOWER STD START

$

$

Currently unavailable

1

Troy-Bilt 1753140010

BASE-ELEC MOWER

$

$

Currently unavailable

2

Troy-Bilt 1751565010

COVER-TRANSMISSION

$

$

Currently unavailable

3

Troy-Bilt 1185878

RIVET-POP 3/16"DIA
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1743223

SHIELD-REAR

$

$

Currently unavailable

5

Troy-Bilt 03620

WASHER-.188

$

$

Currently unavailable

6

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1753099

HUB-SUPPORT WHEEL

$

$

Currently unavailable

8

Troy-Bilt 1186391

NUT-HFLK 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1753135

ASSM-BAFFLE REAR

$

$

Currently unavailable

10

Troy-Bilt 1743221

ASSM-BAFFLE FRONT

$

$

Currently unavailable

?11

0

THIS REF. NO. NOT USED

$

$

Not available

12

Troy-Bilt 1743949

GROMMET-PLASTIC

$

$

Currently unavailable

13

Troy-Bilt 1744545

COVER-DECK

$

$

Currently unavailable

14

Troy-Bilt 1753502

SCR-WING 1/4-20 X 1/2"

$

$

Currently unavailable

15

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

16

MTD 1743277

BRACKET-AXLE

$

$

Not available

17

Troy-Bilt 1753512010

ASSM-COVER (INCL. 18-28)

$

$

Currently unavailable

18

Troy-Bilt 1744542

CLIP-HANDLE

$

$

Currently unavailable

19

Troy-Bilt 1748064

SCREEN-SMALL

$

$

Currently unavailable

20

Troy-Bilt 1746641

COVER-SEAL

$

$

Currently unavailable

21

Troy-Bilt 1753371

SEAL-CHUTE

$

$

Currently unavailable

22

Troy-Bilt 1753281

SUPPORT-CHUTE

$

$

Currently unavailable

$

$

Currently unavailable

24

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

25

Troy-Bilt 1186229

NUT-HEX 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

$

$

Currently unavailable

27

Troy-Bilt 1753822

PLATE-LOGO

$

$

Currently unavailable

28

Troy-Bilt 1748065

SCREEN-LARGE

$

$

Currently unavailable

29

Troy-Bilt 1753509

BAG WITH TAG

$

$

Currently unavailable

30

Troy-Bilt 1753515010

ASSM-BODY CHUTE COVER

$

$

Currently unavailable

31

MTD 1185425

RING-RET "E" .668 ID

$

$

Not available

32

Troy-Bilt 1745780

NUT-HGT ADJUSTMENT

$

$

Currently unavailable

33

Troy-Bilt 1743263

ASSM-FRONT AXLE

$

$

Currently unavailable

34

Troy-Bilt 1744847

CHANNEL-HGT ADJUSTMENT

$

$

Currently unavailable

35

Troy-Bilt 1754231

ASSM-WHEEL/TIRE FRONT

$

$

Currently unavailable

36

$

$

Not available

37

MTD 1761762

CAP-HUB

$

$

Not available

38

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06
(Superseded to GW-20546)

$

$

Not available

39

MTD 1746786

WASHER-1.0X.53X.06 NYLON

$

$

Not available

40

Troy-Bilt 1743265

BRKT-HGT ADJ

$

$

Currently unavailable

41

MTD 1743278

BOLT-SHOULDER GR. 5

$

$

Not available

42

Troy-Bilt 1743274010

LINK-HGT ADJ

$

$

Currently unavailable

43

Troy-Bilt 1753768

DECAL-HT ADJ

$

$

Currently unavailable

44

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

45

Troy-Bilt 1743266

SCR-HGT ADJ

$

$

Currently unavailable

46

Troy-Bilt 1749482

WASHER-WAVE .81X.51X.016

$

$

Currently unavailable

47

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

48

$

$

Currently unavailable

49

Troy-Bilt 1749922

FRAME W/BAG

$

$

Currently unavailable

50

MTD 1903686

KIT-BATTERY REPLACE

$

$

Not available

51

Troy-Bilt 1750911

ASSM-WHEEL HUB RH

$

$

Currently unavailable

52

MTD 1750912

ASSM-WHEEL HUB

$

$

Not available

53

Troy-Bilt 1743279021

COVER-DRIVE WHEEL

$

$

Currently unavailable

54

MTD 9901

WASHER-.88X312X.08

$

$

Not available

55

Troy-Bilt 1754230

ASSM-WHEEL/TIRE REAR

$

$

Currently unavailable

56

Troy-Bilt 1743293

BOLT-SHOULDER-GR. 5

$

$

Currently unavailable

57

MTD 1118804

RING-RETAINING

$

$

Not available

58

MTD 1702646

WASHER-FLAT 1.0X.516X.031

$

$

Not available

59

Troy-Bilt 1746398

GEAR-DRIVE RH

$

$

Currently unavailable

60

MTD 1746399

GEAR-DRIVE LH

$

$

Not available

61

MTD 1746511

DOG DRIVE

$

$

Not available

62

Troy-Bilt 1744468

SPACER-DR GEAR .936X.50X.143 P

$

$

Currently unavailable

63

Troy-Bilt 1185893

NUT-SPEED

$

$

Not available

64

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

65

Troy-Bilt 1753503

SUPT-CABLE

$

$

Currently unavailable

66

Troy-Bilt 1720883

WASHER-FLAT 1.25X.28X.062

$

$

Not available

67

Troy-Bilt 1749796

CABLE-PULLEY

$

$

Currently unavailable

68

$

$

Currently unavailable

69

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

70

$

$

Currently unavailable

71

Troy-Bilt 1753339010

BRKT-BATTERY

$

$

Currently unavailable

72

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

73

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

74

Troy-Bilt 1753223

HARNESS-WIRING ELECTRIC START

$

$

Currently unavailable

75

Troy-Bilt 1733251

CHARGER-BATTERY (ELECTRIC START)

$

$

Currently unavailable
