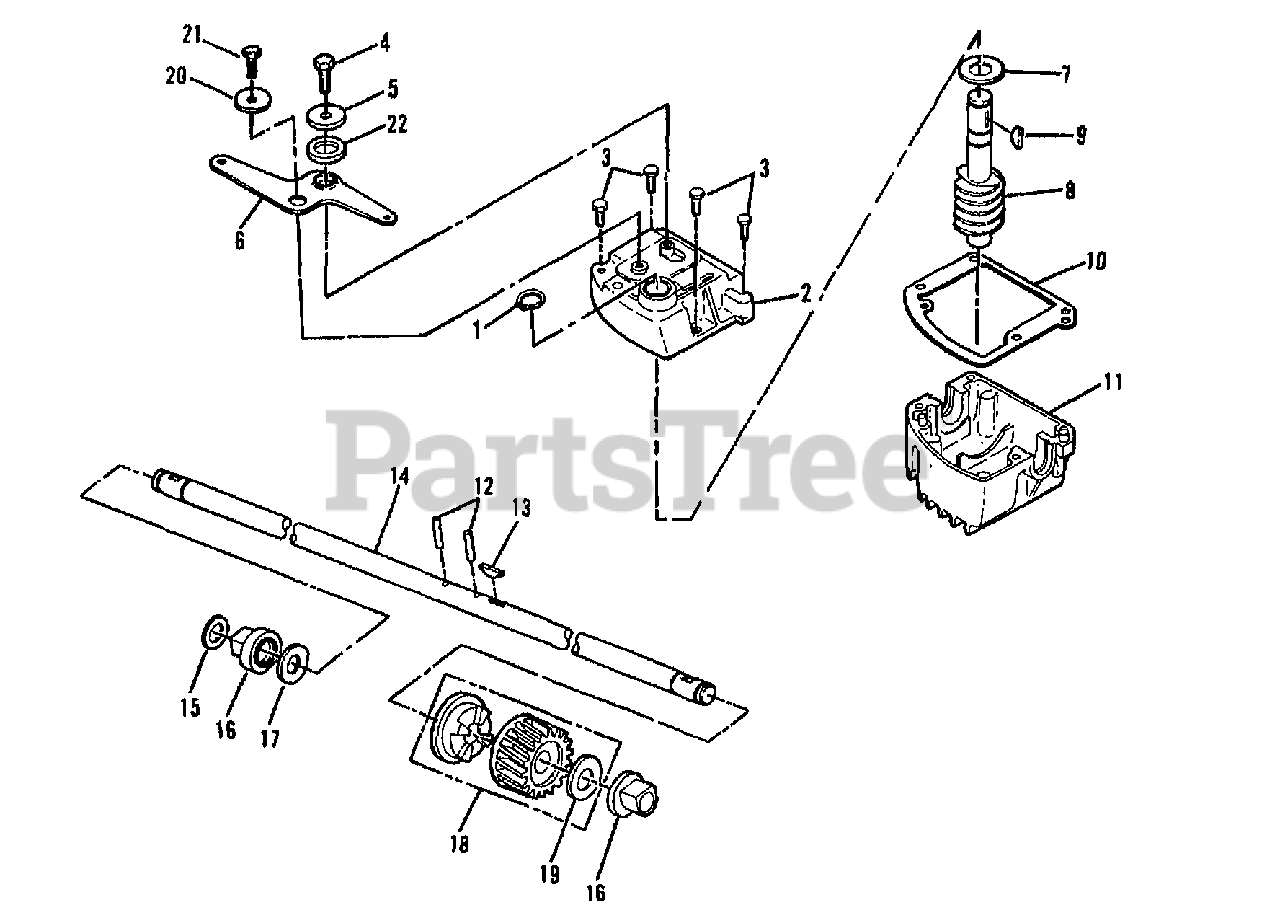

11300 - Troy-Bilt Vacu-Cut 21" Walk-Behind Mower (SN: 0100101 & Above) TRANSMISSION Parts Diagram

Vacu-Cut 21" Walk-Behind Mower

TRANSMISSION Parts Diagram

  • Title

1

MTD 1118804

RING-RETAINING

$

$

Not available

2

MTD 1753504

ASSM-HOUSING

$

$

Not available

3

Troy-Bilt 1185555

HEX S.T. NO. 8-32 x 1/2" BOLT

$

$

Currently unavailable

4

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1747151

WASHER

$

$

Currently unavailable

6

Troy-Bilt 1748421

LEVER-CLUTCH

$

$

Currently unavailable

7

Troy-Bilt 1747153

WASHER

$

$

Currently unavailable

7

Troy-Bilt 1711979

WASHER

$

$

Currently unavailable

7

Troy-Bilt 1747154

WASHER

$

$

Currently unavailable

8

MTD 1747155

SHAFT-INPUT

$

$

Not available

9

MTD 1747156

KEY-WDRF

$

$

Not available

10

Troy-Bilt 1747157

GASKET

$

$

Currently unavailable

11

Troy-Bilt 1747158

ASSM-HOUSING

$

$

Currently unavailable

12

Troy-Bilt 1747159

PIN

$

$

Currently unavailable

13

Troy-Bilt 1747160

KEY-HI PRO

$

$

Currently unavailable

14

Troy-Bilt 1747161

SHAFT-OUTPUT

$

$

Currently unavailable

15

Troy-Bilt 1711979

WASHER

$

$

Currently unavailable

16

MTD 1747162

ASSM-BRG & SEAL

$

$

Not available

17

Troy-Bilt 1711979

WASHER

$

$

Currently unavailable

18

Troy-Bilt 1748422

HELICAL GEAR & CLUTCH DOG ASSEMBLY, KIT

$

$

Currently unavailable

19

Troy-Bilt 1711979

WASHER

$

$

Currently unavailable

20

Troy-Bilt 1103959

WASHER-.505X.22X.05 (TRANSMISSION 1747891)

$4.99

$

In Stock, Qty 14

0

21

MTD 1185712

SCREW, TAPPING 10-24 x 1/2 (TRANSMISSION 1747891)

$

$

Not available

Troy-Bilt 1754998

TRANSMISSION-VACUCUT

$

$

Currently unavailable

22

Troy-Bilt 1748423

FOAM SEAL

$

$

Currently unavailable
