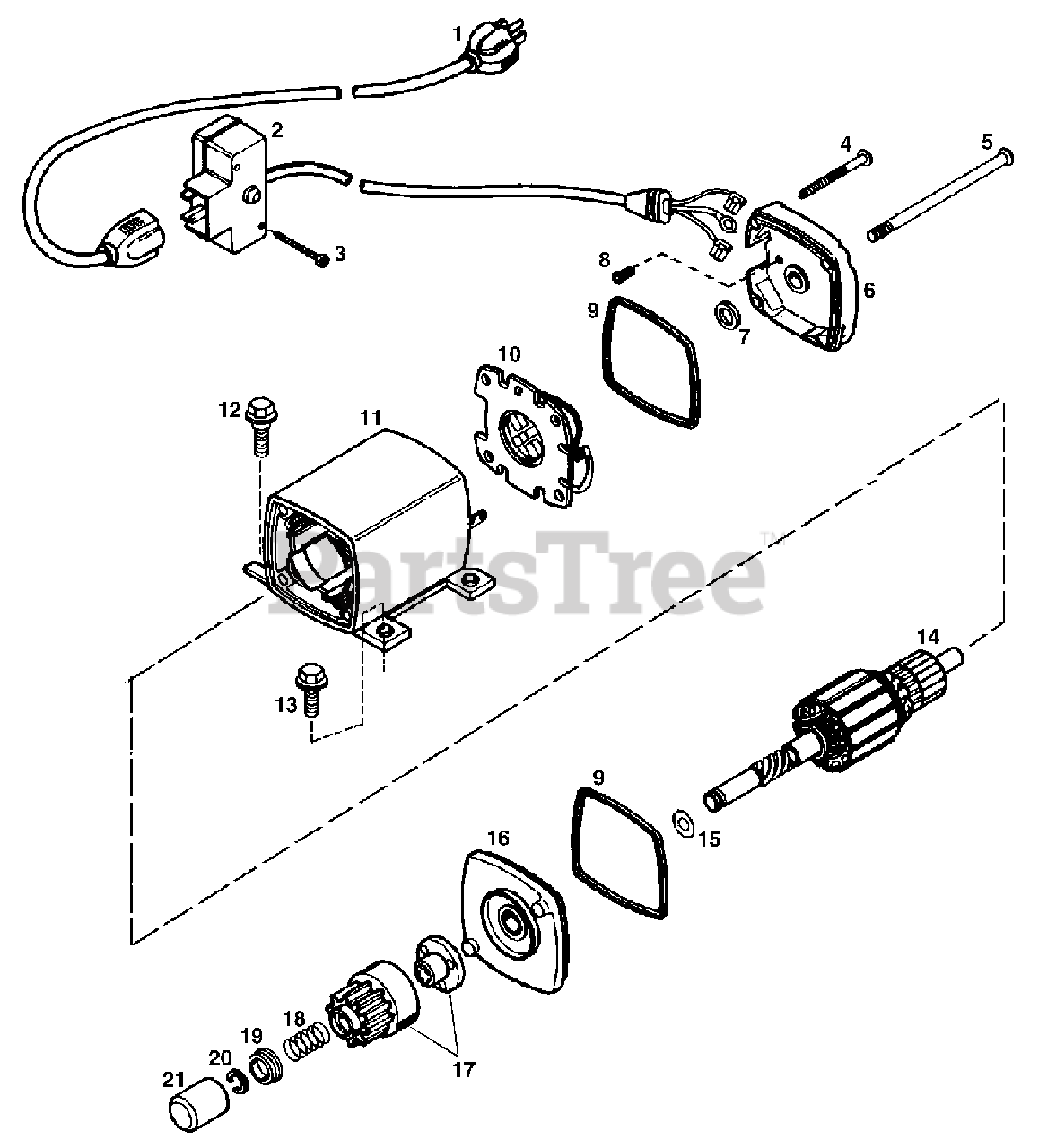

1130 TE (31AE773H101) - Cub Cadet 30" Snow Thrower Engine (1999) Starter Parts Diagram

30" Snow Thrower Engine

Starter Parts Diagram

  • Title

1

Cub Cadet TC-32450B

Extension Cord (10'6")
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

2

Cub Cadet TC-35454

Switch Box Ass’y

Note: (Incl. Ref #3)

$

$

Not available

3

Cub Cadet TC-651032

Screw, 12-16 x 5/8"

$1.99

$

In Stock, only 1 left!

0

4

Cub Cadet TC-35456

Ground Screw

$1.99

$

In Stock, only 3 left!

0

5

Cub Cadet TC-35455

Case Bolt

$

$

Not available

6

Cub Cadet TC-35453

Commutator End Cap Ass’y

Note: (Incl. Ref #9)

$41.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

8

Cub Cadet TC-33441

Ground Screw

$

$

Not available

9

Cub Cadet TC-35450

"O" Ring

$3.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-35452A

Brush Card Ass’y

$58.99

$

In Stock, only 1 left!

0

11

Cub Cadet TC-35451A

Housing Ass’y

$

$

Not available

12

Cub Cadet TC-650820

Screw, 1/4-20 X 1/2"

$3.99

$

In Stock, Qty 15

0

13

Cub Cadet TC-30063

Screw, Torx T-30, 1/4-20 X 1/2"

$1.99

$

In Stock, Qty 20+

0

14

Cub Cadet TC-35915

Armature

$

$

Not available

15

Cub Cadet TC-35911

Thrust Washer

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet TC-35449

Drive End Cap Ass’y

Note: (Incl. Ref #9)

$36.99

$

Usually ships in 3-12 days

0

17

Cub Cadet TC-37050

Gear & Nut
(Superseded to TC-37052A)

Note: (Incl. Ref #20)

$47.99

$

In Stock, only 3 left!

0

18

Cub Cadet TC-33431

Anti-drift Spring

$3.99

$

Usually ships in 3-12 days

0

19

Cub Cadet TC-33430

Spring Retainer

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet TC-33842

Retainer Ring

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet TC-33451

Dust Cover

$3.49

$

In Stock, Qty 5

0
