1130 SWE (31AH573H100) - Cub Cadet 30" Snow Thrower (2000) Blower Housing Parts Diagram

30" Snow Thrower

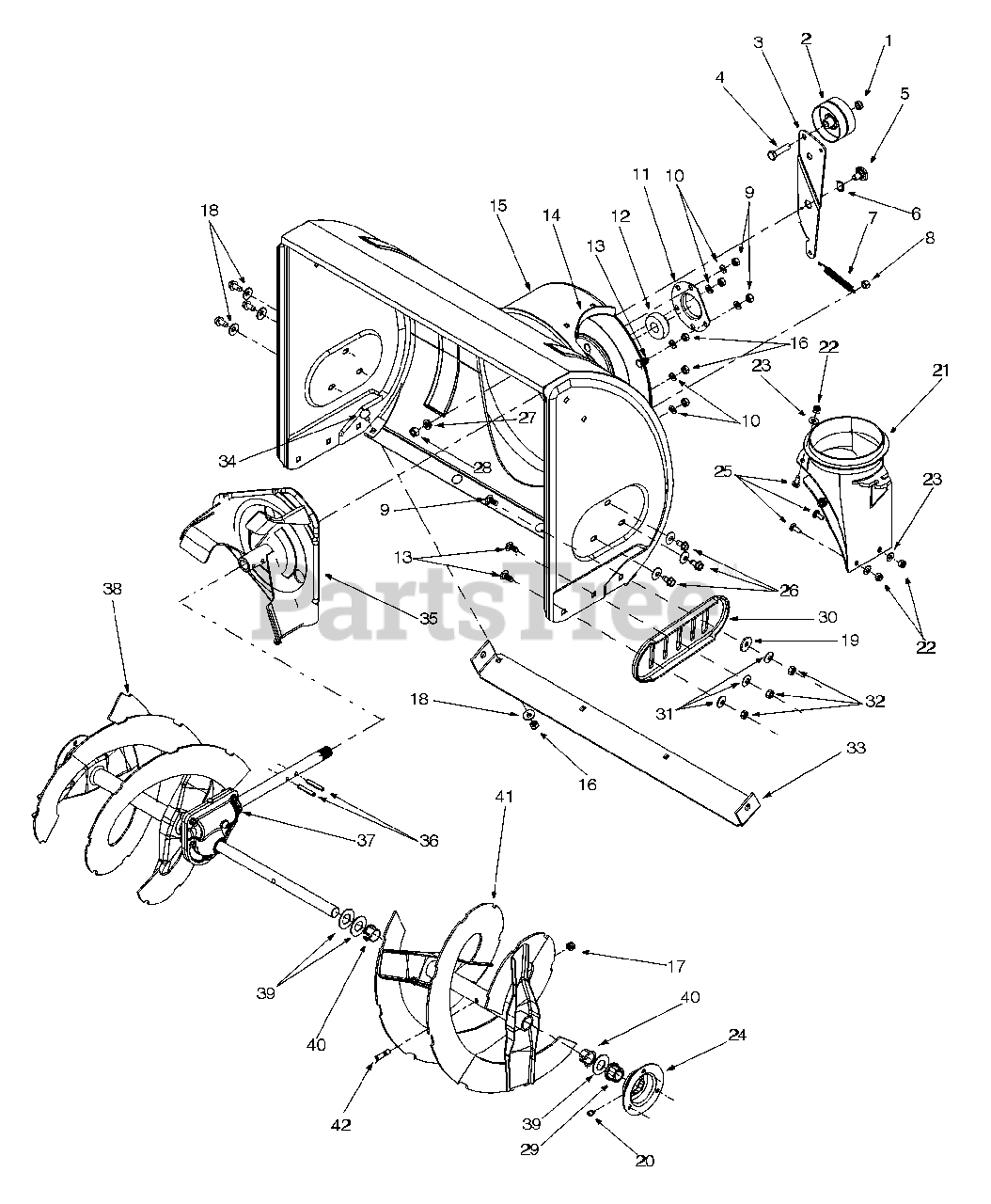

Blower Housing Parts Diagram

  • Title

1

Cub Cadet 712-0116

Lock Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

2

Cub Cadet 756-0178

Flat Idler

$20.99

$

In Stock, only 4 left!

0

3

Cub Cadet 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

Cub Cadet 784-5632A-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

Cub Cadet 738-0281

Shoulder Screw

$10.99

$

In Stock, only 2 left!

0

6

Cub Cadet 736-0174

Wave Washer

$6.99

$

In Stock, Qty 7

0

7

Cub Cadet 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

Cub Cadet 710-0276

Carriage Bolt, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 05931

Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 705-5226

Chute Reinforcement

Variations

Cub Cadet 705-5226-0498

Chute Reinforcement - OLD CUB YELLOW (0498)

$10.99

$

In Stock, Qty 7

0

Cub Cadet 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

Cub Cadet 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 684-0055B

30" Housing Assy
(Superseded to 684-0055C)

Note: (For model 1130 SWE)

Variations

Cub Cadet 684-0055B-0638

30" HOUSING ASSEMBLY (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0055B-0498

30" HOUSING ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0055B-0650

30" HOUSING ASSEMBLY (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0055B-0662

30" HOUSING ASSEMBLY (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0055B-0665

30" HOUSING ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0055B-0716

30" HOUSING ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 684-0040C

26" Housing Assy
(Superseded to 684-0040D)

Note: (For model 826 SWE)

Variations

Cub Cadet 684-0040C-0709

USE 684-0040D-0709 HOUSING AS - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 684-0040C-0483

USE 684-0040D-0483 HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0040C-0498

USE 684-0040D-0716 HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0040C-0638

USE 684-0040D-0638 HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0040C-0650

USE 684-0040D-0650 HOUSING AS - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0040C-0662

26" HOUSING ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0040C-0691

26" HOUSING ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 684-0040C-0629

USE 684-0040D-0629 HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0040C-0665

USE 684-0040D-0665 HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0040C-0667

USE 684-0040D-0667 HOUSING AS - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 684-0040C-0683

26" HOUSING ASSEMBLY - LESCO GREEN (0683)

$

$

Not available

Cub Cadet 684-0040C-0689

USE 684-0040D-0689 HOUSING AS - POLO GREEN (0689)

$

$

Not available

$

$

16

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0231

Flat Wshr, .344ID x 1.125 OD

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 737-3000

Grease Fitting, 3/16" Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 731-1379A

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

22

Cub Cadet 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

Cub Cadet 736-0463

Flat Washer

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 784-0399

Bearing Housing w/Fitting
(Superseded to 784-5618A-0637)

$13.99

$

In Stock, only 2 left!

0

25

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0604

Hex Screw 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

29

Cub Cadet 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

30

Cub Cadet 784-5038B

Skid Shoe
(Superseded to 784-5038B-0637)

Variations

Cub Cadet 784-5038B-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5038B-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 784-5575

Shave Plate
(Superseded to 790-00119-0637)

Note: (For model 1130 SWE)

Variations

Cub Cadet 784-5575-0637

Shave Plate, 30" Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, Qty 20+

0

$39.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A

Shave Plate
(Superseded to 790-00121-0637)

Note: (For model 826 SWE)

Variations

Cub Cadet 784-5579A-0629

Shave Plate, 26" Silver - SILVER FLAKE (0629)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0667

Shave Plate, 26" Blue - MIDNIGHT BLUE (0667)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0689

Shave Plate, 26" Green - POLO GREEN (0689)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0691

Shave Plate, 26" Black - BLACK JACK (0691)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0692

Shave Plate, 26" Blue - AGWAY BLUE (0692)

$36.99

$

In Stock, Qty 20+

0

$36.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

Cub Cadet 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

Cub Cadet 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

36

Cub Cadet 715-0114

Pin

$9.49

$

In Stock, Qty 20+

0

37

Cub Cadet 618-0417

30" Gear Assy
(Superseded to 918-0417B)

Note: (For model 1130 SWE)

$400.99

$

Usually ships in 3-6 days

0

Cub Cadet 618-0415

26" Gear Assy
(Superseded to 918-0415B)

Note: (For model 826 SWE)

$442.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 605-5248A

30" Spiral RH
(Superseded to 684-04186-0637)

Note: (For model 1130 SWE)

Variations

Cub Cadet 605-5248A-0637

Auger Spiral Assembly, RH 30" - POWDER BLACK (0637)

$201.99

$

Usually ships in 3-6 days

0

$201.99

$

Usually ships in 3-6 days

0

Cub Cadet 605-5192A

26" Spiral RH
(Superseded to 684-04182-0637)

Note: (For model 826 SWE)

Variations

Cub Cadet 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$187.99

$

Usually ships in 3-6 days

0

$187.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 605-5249A

30" Spiral LH
(Superseded to 684-04187-0637)

Note: (For model 1130 SWE)

Variations

Cub Cadet 605-5249A-0637

Auger Spiral Assembly, LH 30" - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 605-5193A

26" Spiral LH
(Superseded to 684-04183-0637)

Note: (For model 826 SWE)

Variations

Cub Cadet 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0
