1130 STE (961910019-04) - Husqvarna 30" Snow Blower (2008-09) DRIVE Parts Diagram

30" Snow Blower

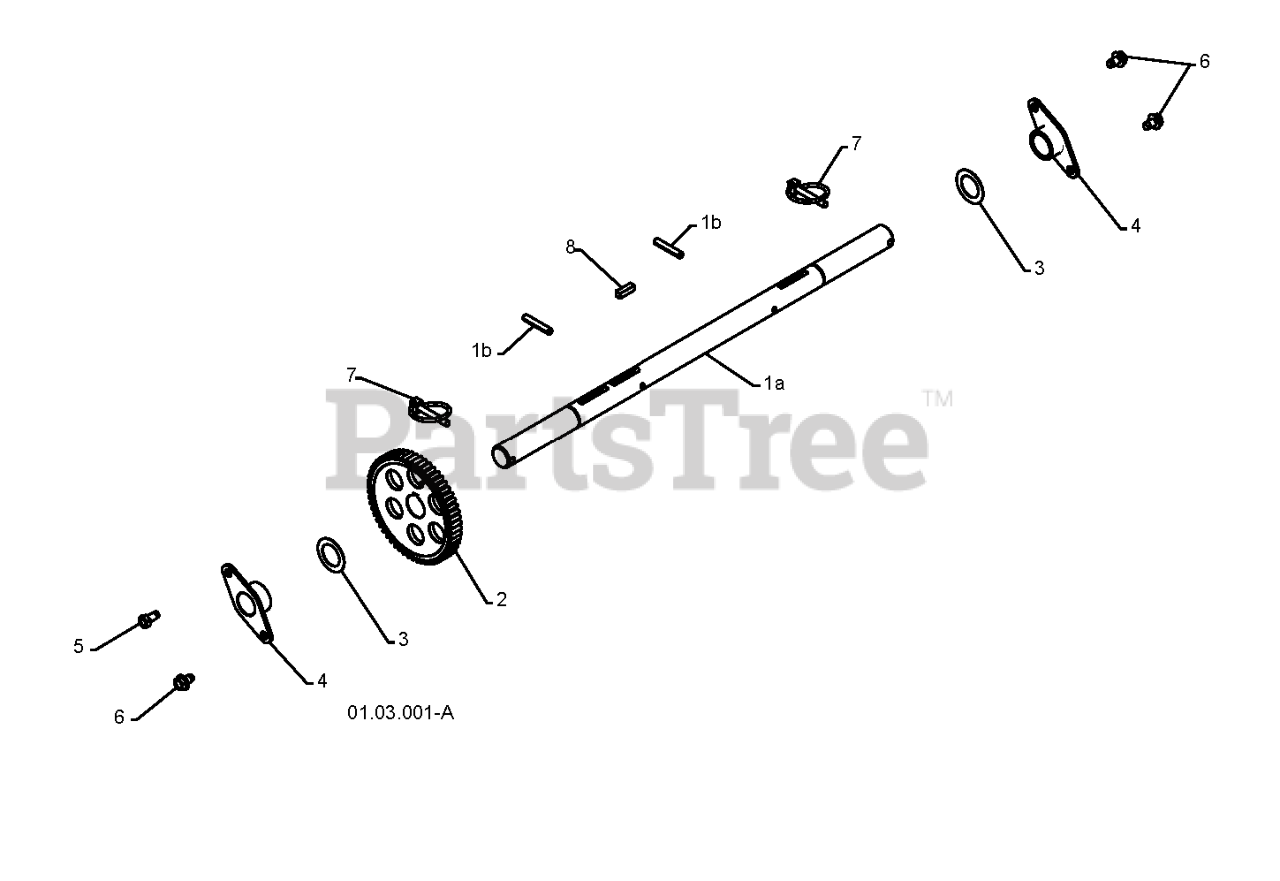

DRIVE Parts Diagram

  • Title
6

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0

1

Husqvarna 532404923

AXLE.ASM.SHAFT.W/ROLLPIN.PS

Note: (assy of 1a,1b)

$66.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532155443

PIN KLIK, 1/4

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

8

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

1a

Husqvarna 532404307

SHAFT.AXLE.POWER.STEERING

$72.99

$

Usually ships in 3-10 days

0

1b

Husqvarna 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180081

GEAR, AXLE (58T)
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0
