1130 STE (961910019-00) - Husqvarna 30" Snow Blower (2007-07) DRIVE Parts Diagram

30" Snow Blower

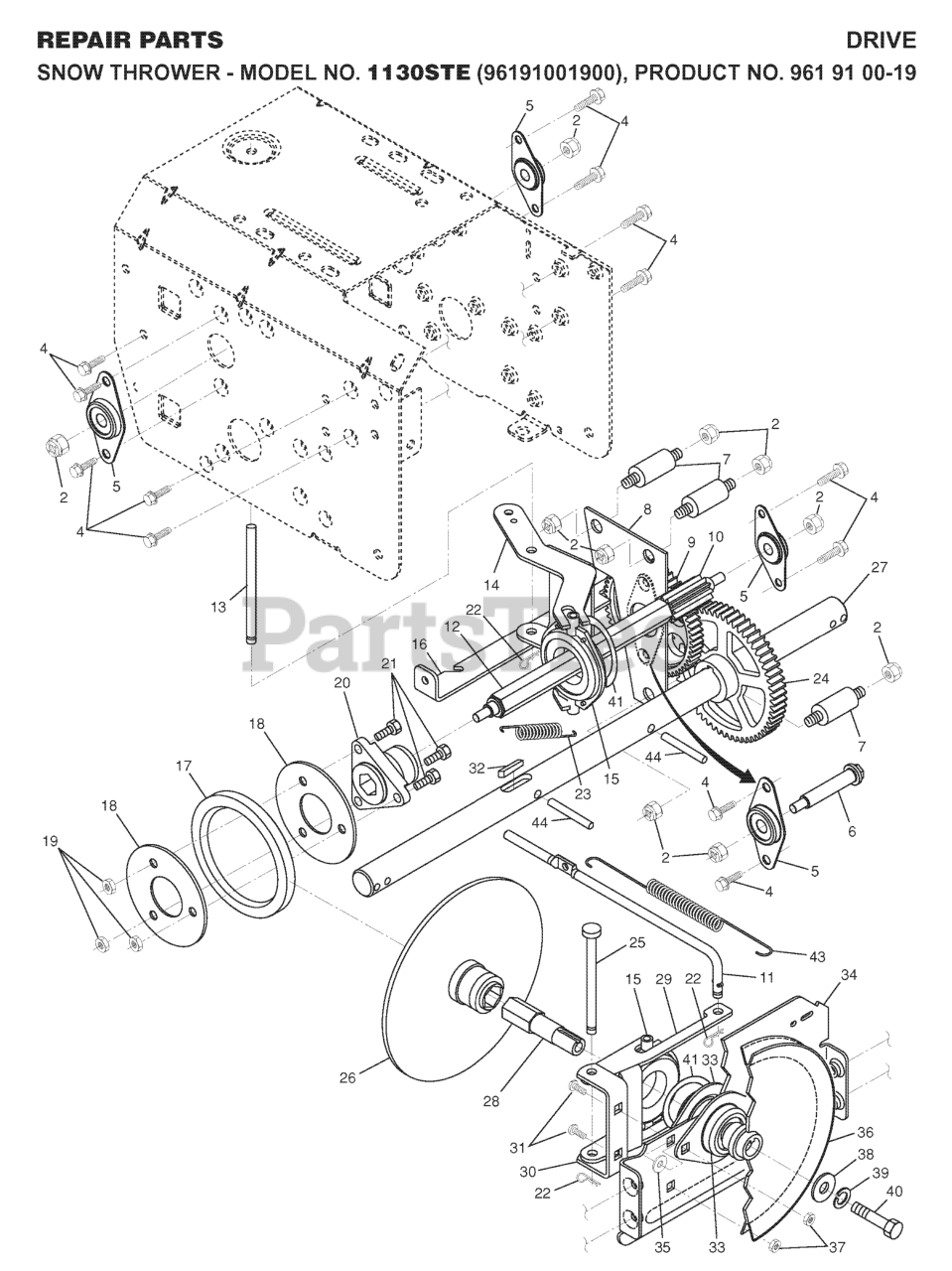

DRIVE Parts Diagram

  • Title

17

Husqvarna 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$26.99

$

In Stock, only 1 left!

0

6

Husqvarna 532180134

SHAFT, AUXILIARY

$

$

Not available

10

Husqvarna 532180065

GEAR, PINION

$

$

Not available

35

Husqvarna 532182504

SPACER, BEARING

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532197764

SHAFT.HEX.SHORT

$14.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532192907

AUXILLARY PLATE
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 532191080

PULLEY.TRACTION.7.75

$66.99

$

In Stock, only 1 left!

0

27

Husqvarna 532404307

SHAFT.AXLE.POWER.STEERING

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187714

ROD.CLUTCH.YELLOW.ZINC

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532179270

SPACER, PLATE

$11.99

$

Usually ships in 3-10 days

0

40

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

33

Husqvarna 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

20

Husqvarna 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532187857

BRACKET, PIVOT, SHIFT
(Superseded to 532435793)

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 8

0

9

Husqvarna 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

24

Husqvarna 532180081

GEAR, AXLE (58T)
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

29

Husqvarna 532184077

LEVER.SHIFTER.PLATE.BLACK

$12.99

$

Usually ships in 3-10 days

0

31

Husqvarna 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532180017

BEARING, FLANGE

$26.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532179095

SPRING.RETURN

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

34

Husqvarna 532184075

PLATE.DRIVE.MOUNTING.BLACK

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532184076

BRACKET, SHIFTER SUPPORT
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532184080

LEVER, SPEED CONTROL

$

$

Not available

44

Husqvarna 532184206

PIN.ROLL.3/16

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532178695

PIN, PIVOT LEVER

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532435789)

$

$

Not available

38

Husqvarna 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532180066

SHAFT.HEX.LONG

$

$

Not available

21

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 532197763

DRIVE PLATE WELDMENT

$66.99

$

Usually ships in 3-10 days

0

39

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0
