1130 STE (961910004-02) - Husqvarna 30" Snow Blower (2007-01) WHEELS & TIRES Parts Diagram

30" Snow Blower

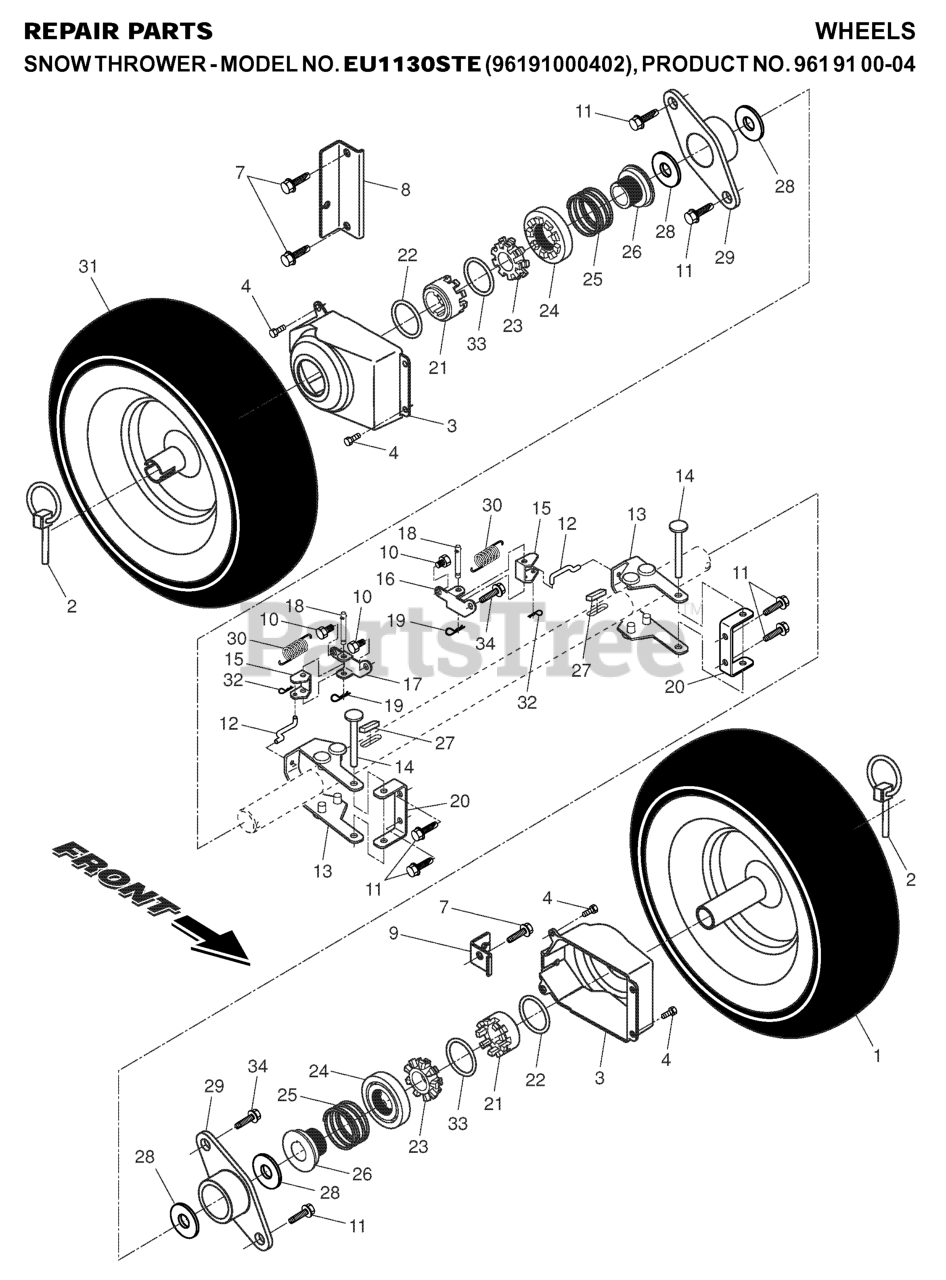

WHEELS & TIRES Parts Diagram

  • Title
26

Husqvarna 532194940

RP.LOBE.AXLE
(Superseded to 581645101)

$

$

Not available

3

Husqvarna 532405161

COVER, POWER STEERING

$10.99

$

In Stock, only 1 left!

0

11

Husqvarna 532198584

SCREW, HEX HEAD 5/16-18 X 1/2

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

31

Husqvarna 532199502

16 X 4.8 RH WHEEL
(Superseded to 532198267)

$

$

Not available

20

Husqvarna 532184197

BRACKET.STEER.PNT.BLACK

$

$

Not available

19

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532406057

LINK, STEERING LEVER

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532199501

16 X 4.8 LH WHEEL GREY
(Superseded to 532439408)

$

$

Not available

25

Husqvarna 532179139

SPRING, CLUTCH SLIDE

$6.49

$

In Stock, Qty 8

0

14

Husqvarna 532182015

PIN, STEERING LEVER

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532181847

PIN, STEERING BELLCRANK

$12.99

$

In Stock, only 1 left!

0

24

Husqvarna 532194941

RP.SLIDE.CLUTCH
(Superseded to 581644901)

$44.99

$

In Stock, only 2 left!

0

2

Husqvarna 532155443

PIN KLIK, 1/4

$8.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532199518

BELLCRANK.STEER
(Superseded to 532194944)

$

$

Not available

10

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, only 2 left!

0

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532187622

LOBE WHEEL

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532199512

BRACKET.STEER.PIVOT.LH.YZ
(Superseded to 532194939)

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532187859

BRACKET, STEERING CABLE RH
(Superseded to 532185603)

$12.99

$

In Stock, only 1 left!

0

30

Husqvarna 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0

27

Husqvarna 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

32

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 532187858

BRACKET, STEERING CABLE LH
(Superseded to 532415263)

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532199519

YOKE, STEERING
(Superseded to 532445266)

$21.99

$

In Stock, only 1 left!

0

21

Husqvarna 532192126

RP.DRIVER WHEEL
(Superseded to 581645001)

$31.99

$

In Stock, only 1 left!

0

22

Husqvarna 532182466

RING, WIRE RETAINER

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 532199511

BRKT.STEER.PIVOT.RH
(Superseded to 532194943)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0
