1130 SBE XP (961930018-01) - Husqvarna 30" Snow Blower (2008-01) Auger Housing / Impeller Assembly Parts Diagram

30" Snow Blower

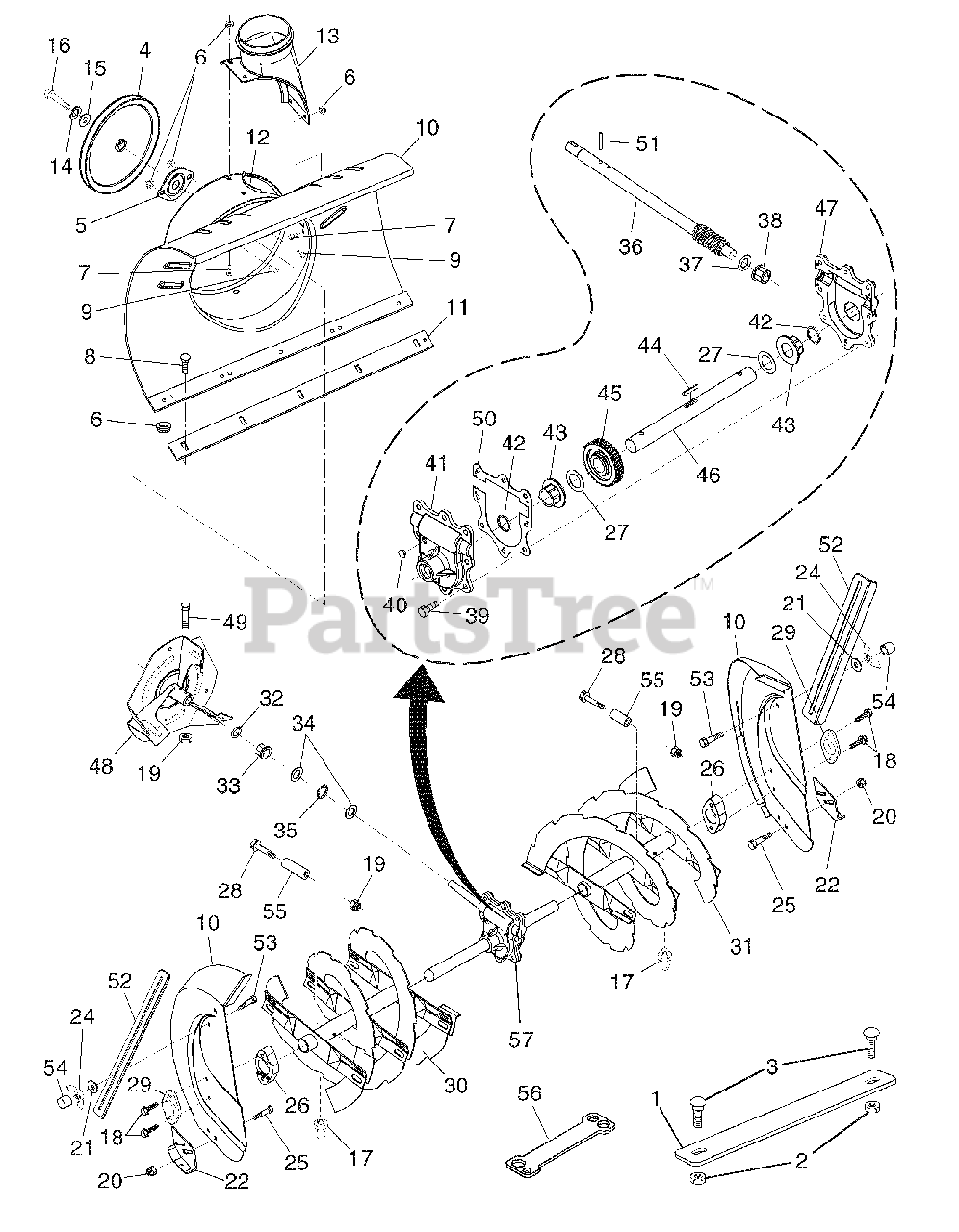

Auger Housing / Impeller Assembly Parts Diagram

  • Title

1

Husqvarna 532188663

Bar, Weight
(Superseded to 532182516)

$72.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532751153

Nut, Hex 5/16-18

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 872110510

Bolt, Carriage 5/16-18 x 1-1/4

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 532191079

Pulley, Impeller
(Superseded to 532427071)

$

$

Not available

5

Husqvarna 532188909

Bearing Assembly, Flange

$28.99

$

In Stock, only 4 left!

0

6

Husqvarna 532155377

Nut, Hex Flange 5/16-18

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532180355

Bolt, Flat Head, Carriage 5/16-1 8 x 5/8

$7.49

$

In Stock, Qty 13

0

8

Husqvarna 872270505

Bolt, Carriage 5/16-1 8 x 5/8
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532163183

Bolt

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532407721

Housing, Auger
(Superseded to 581708369)

$

$

Not available

11

Husqvarna 532407645

Bar, Scraper
(Superseded to 532435830)

$24.99

$

In Stock, Qty 5

0

12

Husqvarna 532184095

Bracket, Corner Discharge
(Superseded to 597433002)

$4.99

$

In Stock, Qty 8

0

13

Husqvarna 532175322

Base, Discharge Chute
(Superseded to 585056901)

$11.99

$

In Stock, only 4 left!

0

14

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 819111507

Washer, Flat

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 874940516

Screw, Hex Head 5/16-18 x 1.00

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532405637

Grease Fitting

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532179582

Screw, Hex Head 5/16 x 1

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 873800400

Nut, Hex Lock 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 532155377

Nut, Hex Lock 5/16-18

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532401347

Washer, Flat 5/16

$2.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532407834

Skid Plate, Heavy Duty

$20.99

$

In Stock, only 1 left!

0

24

Husqvarna 532128638

Wing Nut

$7.49

$

In Stock, Qty 8

0

25

Husqvarna 872270506

Bolt, Shoulder 1/4-20
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532187925

Bearing Retainer, Plastic

$62.99

$

In Stock, only 2 left!

0

27

Husqvarna 532174697

Washer, Thrust, 1"
(Superseded to 532007396)

$

$

Not available

28

Husqvarna 532198636

Screw
(Superseded to 588077502)

$5.99

$

In Stock, Qty 20+

0

29

Husqvarna 532188170

Bearing

$

$

Not available

30

Husqvarna 532407722

Auger Assembly, RH
(Superseded to 532435545)

$159.99

$

In Stock, only 1 left!

0

31

Husqvarna 532407723

Auger Assembly, LH
(Superseded to 532435544)

$

$

Not available

32

Husqvarna 532407768

O-Ring

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 532407769

Bushing, Flange 3/4

$9.49

$

In Stock, only 1 left!

0

34

Husqvarna 532174681

Washer, Thrust 3/4

$14.99

$

In Stock, only 3 left!

0

35

Husqvarna 532174684

Bearing, Thrust 3/4

$9.99

$

In Stock, only 2 left!

0

36

Husqvarna 532407757

Shaft, Impeller

$102.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532174683

Washer, Thrust 5/8

$7.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532407758

Bushing, Flange 5/8
(Superseded to 532174686)

$

$

Not available

39

Husqvarna 532407767

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

40

Husqvarna 532407760

Plug, Case
(Superseded to 532086447)

$

$

Not available

41

Husqvarna 532407761

Housing, Gearbox, RH
(Superseded to 532174688)

$

$

Not available

42

Husqvarna 532407770

Seal, Oil
(Superseded to 532174698)

$

$

Not available

43

Husqvarna 532407762

Bushing, Flange, 1"
(Superseded to 532174701)

$

$

Not available

44

Husqvarna 532189282

Key, Square 1/4 x 1/4 x 7/8

$7.49

$

In Stock, only 1 left!

0

45

Husqvarna 532407763

Gear, Worm
(Superseded to 598831601)

$265.99

$

In Stock, only 1 left!

0

46

Husqvarna 532407764

Shaft, Auger
(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532407765

Housing, Gearbox, LH

$26.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532184105

Impeller Assembly
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

49

Husqvarna 874780426

Screw, Hex Head 1/4-20 x 1-5/8
(Superseded to 596322101)

$3.99

$

In Stock, Qty 9

0

50

Husqvarna 532407766

Gasket, Gearbox
(Superseded to 532175311)

$9.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532184205

Pin, Roll 3/16 x 1-1/8
(Superseded to 532007836)

$4.99

$

In Stock, Qty 7

0

52

Husqvarna 532184747

Bar, Drift
(Superseded to 532435832)

$22.99

$

Usually ships in 3-10 days

0

53

Husqvarna 872270506

Bolt, Hex Head
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

54

Husqvarna 532198709

Stop

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532198638

Spacer

$7.49

$

In Stock, Qty 12

0

56

Husqvarna 532180684

Multi-Wrench
(Superseded to 532429112)

$4.99

$

In Stock, only 1 left!

0

57

Husqvarna 532196710

Gearbox Assembly
(Superseded to 598831601)

$265.99

$

In Stock, only 1 left!

0
