1130 SBE OV (961930021) - Husqvarna 30" Snow Blower (2006-09) CHASSIS, ENGINE & PULLEYS Parts Diagram

30" Snow Blower

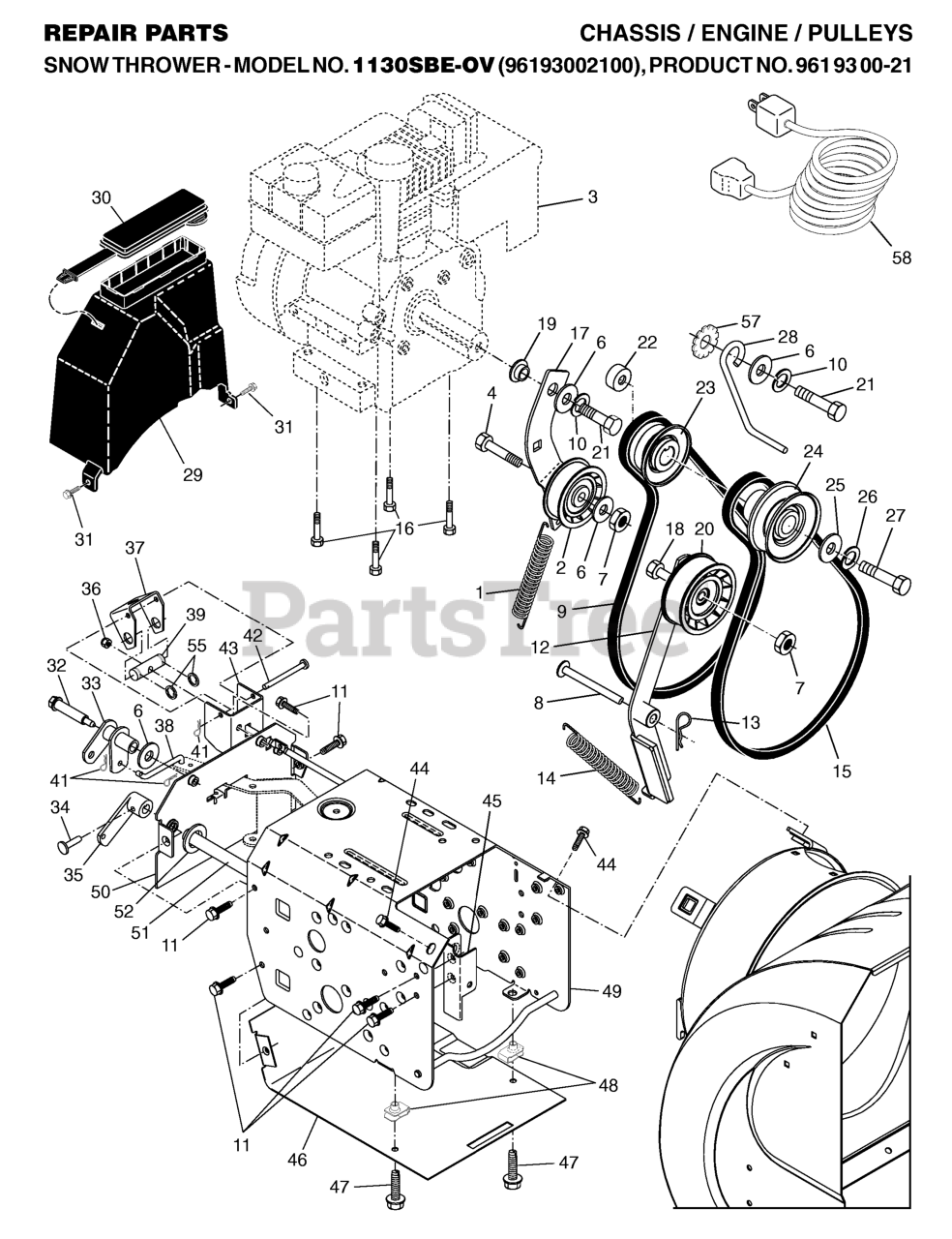

CHASSIS, ENGINE & PULLEYS Parts Diagram

  • Title
55

Husqvarna 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

43

$

$

Not available

7

Husqvarna 532166785

LOCKNUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

18

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

35

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

58

Husqvarna 532198563

CORD.ELECTRIC.10FT.120V.SNOW

$24.99

$

In Stock, only 2 left!

0

12

Husqvarna 532179259

ARM ASSEMBLY, IMPELLER IDLER
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

1

Husqvarna 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.49

$

In Stock, only 4 left!

0

36

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

STEEL WASHER

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 18

0

29

Husqvarna 532192213

COVER.ASM.BELT/STORAGE
(Superseded to 532443030)

$40.99

$

In Stock, only 1 left!

0

11

Husqvarna 532198584

SCREW, HEX HEAD 5/16-18 X 1/2

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532192110

TRUNNION, TRACTION

$

$

Not available

10

Husqvarna 532198552

WASHER, LOCK 5/16

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532408008

BELT-V.IMPELLER.DRIVE

$

$

Not available

38

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

2

Husqvarna 532180522

PULLEY.W/SPACER.2.25

$31.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532184074

BRACKET, IDLER PIVOT
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532179092

V-BELT, TRACTION DRIVE
(Superseded to 532416954)

$

$

Not available

44

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

26

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

27

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532184084

PAN, FRAME BOTTOM
(Superseded to 532178624)

$

$

Not available

28

Husqvarna 532155452

BELT.GUIDE.RH

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532179256

BOLT, SHOULDER 5/16-18

$

$

Not available

19

Husqvarna 532198559

BUSHING, IDLER PIVOT

$

$

Not available

23

Husqvarna 532180478

PULLEY,ENGINE TRACTION DRIVE
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532178830

COVER.STORAGE.SNOW

$

$

Not available

17

Husqvarna 532184804

IDLER ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

22

Husqvarna 532179371

SPACER, ENGINE PULLEY

$9.49

$

Usually ships in 3-10 days

0

51

Husqvarna 532406109

SHAFT, AUGER CONTROL
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

31

Husqvarna 532400524

SCREW, HEX HEAD 1/4-20
(Superseded to 532405024)

$

$

Not available

$4.99

$

In Stock, only 3 left!

0

52

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

24

Husqvarna 532178813

PULLEY.ENG.IMPELLER.SNOW
(Superseded to 532426492)

$

$

Not available

57

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 532179065

PIN, PIVOT BRACKET

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532178828

SPRING, BRAKE

$6.49

$

In Stock, only 2 left!

0

37

Husqvarna 532184086

BRACKET, PIVOT

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532188002

PLATE, FRAME END
(Superseded to 583706301)

$14.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532407642

FRAME ASSEMBLY
(Superseded to 532404431)

$

$

Not available

47

Husqvarna 871020512

Screw, Hex Head 5/16-18 x 3/4

$

$

Not available

34

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532181156

NUT.SPEED.5/16-18

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 532187853

BELLCRANK SHIFTER

$15.99

$

Usually ships in 3-10 days

0
