1130 SBE (961930017-04) - Husqvarna 30" Snow Blower (2007-12) Control Panel / Discharge Chute Parts Diagram

30" Snow Blower

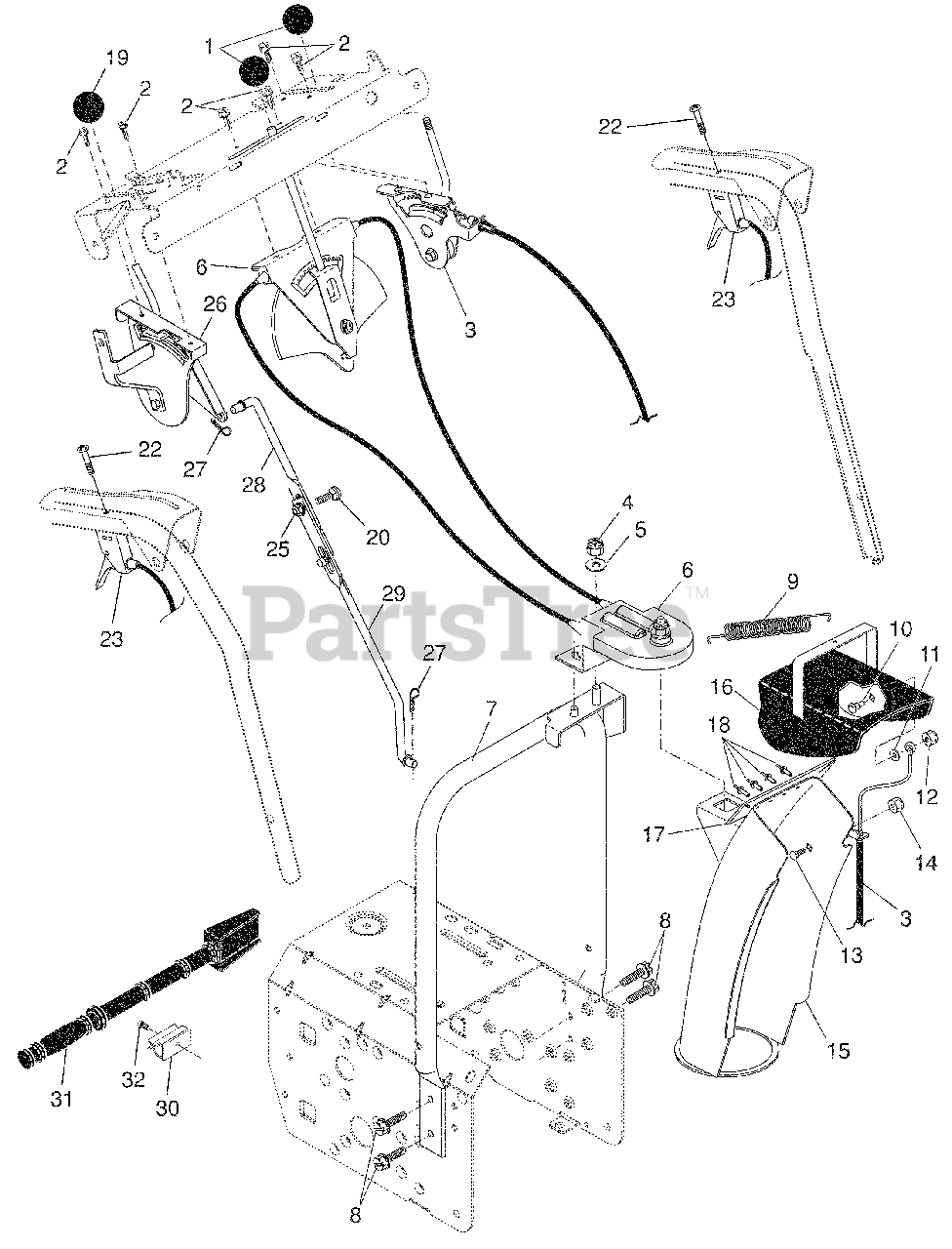

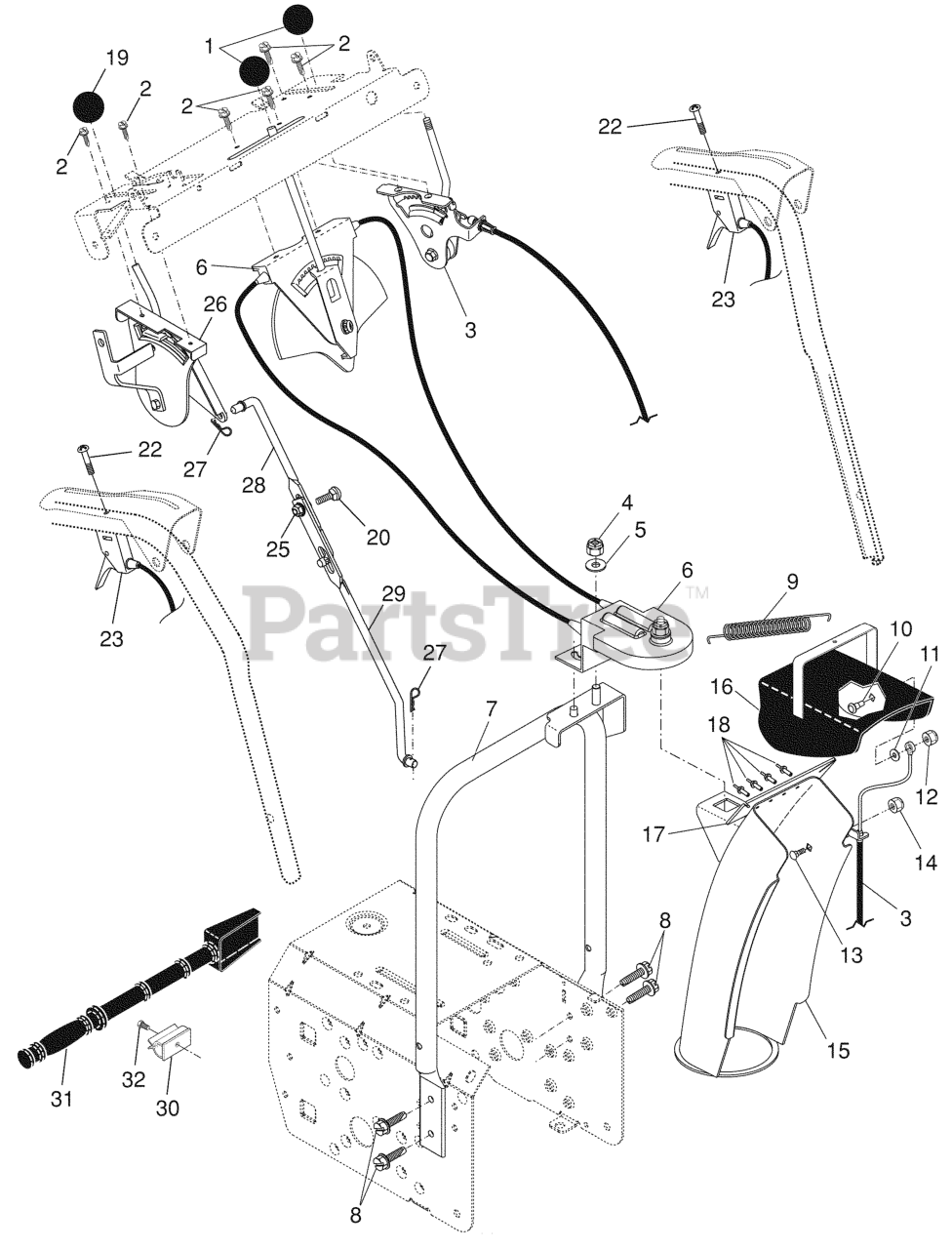

Control Panel / Discharge Chute Parts Diagram

  • Title
1

Husqvarna 532414280

Knob, Lever

$7.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817501010

Screw #10-24 x 5/8

$

$

Not available

3

Husqvarna 532198475

Control Assembly, Deflector
(Superseded to 587030801)

$80.99

$

In Stock, Qty 5

0

4

Husqvarna 873800600

Nut, Lock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 819131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532404974

Control Assembly, Chute Rotater
(Superseded to 532428272)

$182.99

$

In Stock, only 1 left!

0

7

Husqvarna 532407643

Support, Pivot
(Superseded to 532443617)

$

$

Not available

8

Husqvarna 532150078

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532184505

Spring, Deflector

$7.99

$

In Stock, Qty 11

0

10

Husqvarna 532179829

Bolt, Shoulder

$6.49

$

In Stock, Qty 11

0

11

Husqvarna 532179246

Washer, Friction, Nylon

$7.49

$

In Stock, Qty 10

0

12

Husqvarna 532191730

Nut, Lock 1/4-20

$7.49

$

In Stock, Qty 5

0

13

Husqvarna 872250505

Bolt, Carriage 5/16-18
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532751153

Nut, Lock 5/16-18

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 532407650

Chute Assembly
(Superseded to 588077802)

$120.99

$

In Stock, only 2 left!

0

16

Husqvarna 532184113

Deflector Assembly
(Superseded to 588077802)

$120.99

$

In Stock, only 2 left!

0

17

Husqvarna 532179145

Seal, Deflector
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532128415

Rivet, Blind

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532414281

Knob, Speed Control Lever

$22.99

$

In Stock, only 1 left!

0

20

Husqvarna 872270506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 874041024

Screw #10-24 x 1-1/2

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192449

Control Assembly, Power Steering
(Superseded to 532421249)

$44.99

$

In Stock, Qty 9

0

25

Husqvarna 532155377

Nut, Lock 5/16-18

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532198474

Lever Assembly, Speed Control
(Superseded to 532429667)

$

$

Not available

27

Husqvarna 532169675

Retainer, Hairpin

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 532180445

Rod, Upper, Speed Control

$39.99

$

In Stock, Qty 5

0

29

Husqvarna 532187716

Rod, Lower, Speed Control

$

$

Not available

30

Husqvarna 532405400

Clamp, Clean-Out Tool

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532192199

Tool, Clean-Out

$34.99

$

In Stock, only 2 left!

0

$7.49

$

In Stock, Qty 20+

0
