1130 SBE (961930017-04) - Husqvarna 30" Snow Blower (2007-12) Chassis / Engine / Pulleys Parts Diagram

30" Snow Blower

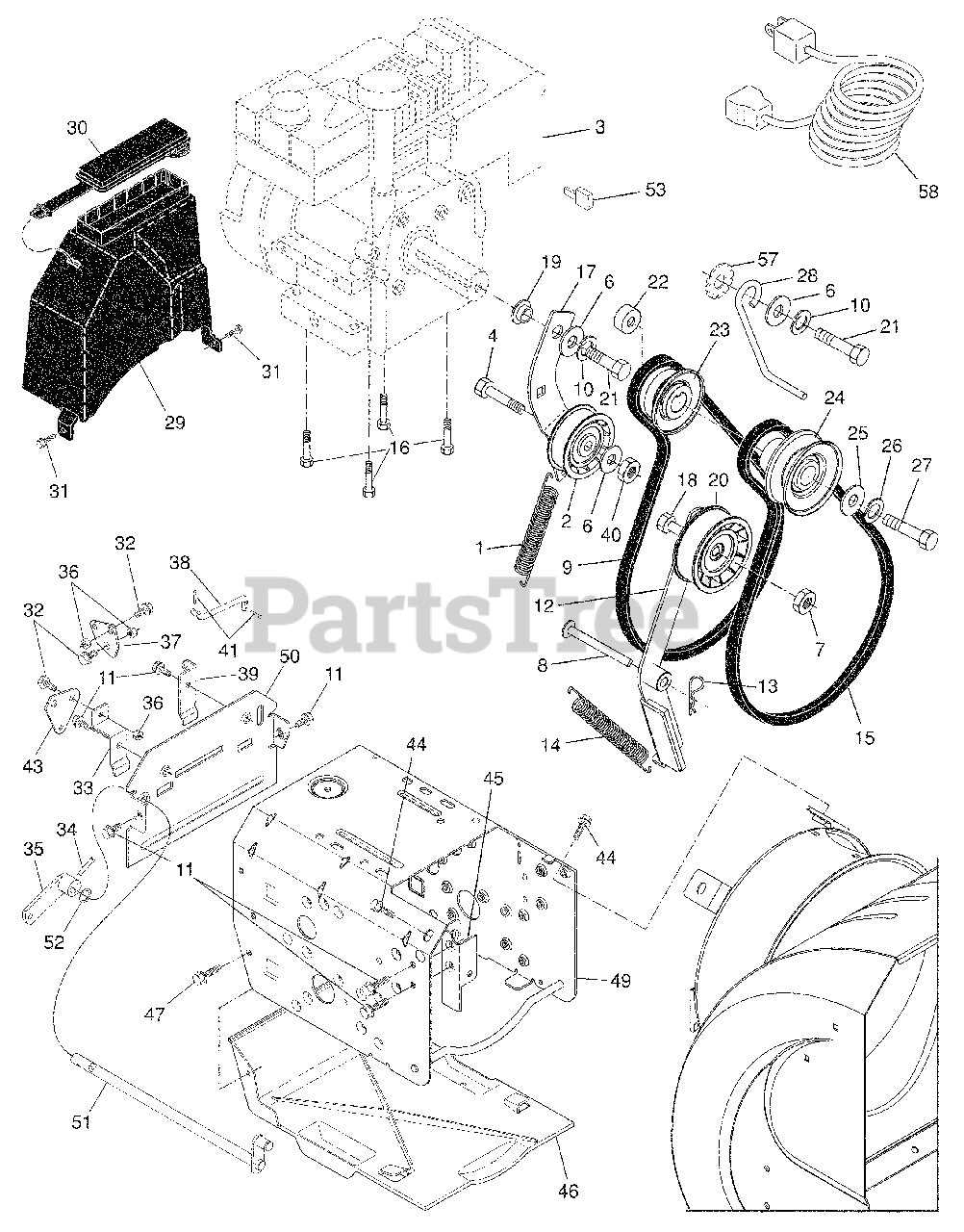

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532181044

Spring, Traction Idler
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

2

Husqvarna 532180522

Pulley, Idler (2-1/4)

$31.99

$

In Stock, only 2 left!

0

3

Engine, Tecumseh, Model Number LH358SA-159648A

Note: (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

$

$

Not available

4

Husqvarna 874780520

Screw, Hex Head 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

Washer, Flat

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 532166785

Nut, Jam, Lock 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 532175330

Pin, Idler Pivot

$5.99

$

In Stock, Qty 18

0

9

Husqvarna 532179092

V-Belt, Traction Drive
(Superseded to 532416954)

$

$

Not available

10

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532410420

Impeller Arm / Pad Assembly
(Superseded to 532422111)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532178828

Spring, Brake

$6.49

$

In Stock, Qty 6

0

15

Husqvarna 532408010

V-Belt, Impeller Drive

$42.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532150406

Screw, Hex Head 3/8-16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532179521

Arm, Idler

$

$

Not available

18

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

19

Husqvarna 532175331

Bushing, Idler Pivot
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

Pulley, Idler (2-3/4)

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

Screw, Hex Head 5/16-18 x 1

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 532409475

Spacer, Engine Pulley

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532180478

Pulley, Engine, Traction Drive
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532179157

Pulley, Engine, Impeller Drive
(Superseded to 532426491)

$26.99

$

In Stock, only 1 left!

0

25

Husqvarna 532400026

Washer, Flat 3/8

$9.49

$

In Stock, only 3 left!

0

26

Husqvarna 532850263

Washer, Lock, Helical 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532155452

Guide, Belt

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532192213

Belt Cover Assembly
(Superseded to 532443030)

Note: (Includes Toolbox Cover)

$40.99

$

In Stock, only 1 left!

0

30

Husqvarna 532178830

Cover, Toolbox

$

$

Not available

31

Husqvarna 817490408

Screw, Hex Head 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532402881

Bolt, Shoulder 3/8-25

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532415433

Bracket, Shifter

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 532198580

Clevis, Pin

$6.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532405485

Arm, Auger Control

$9.99

$

In Stock, only 1 left!

0

36

Husqvarna 532191730

Nut 1/4-20

$7.49

$

In Stock, Qty 5

0

37

Husqvarna 532415435

Plate, Clutch

$2.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532187101

Link, Speed Control

$

$

Not available

39

Husqvarna 532416864

Bracket, Clutch

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873930500

Locknut, Hex

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532700279

Hairpin, Cotter 3/32 x 1/2

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532415450

Plate, Shifter

$7.99

$

In Stock, only 3 left!

0

44

Husqvarna 817000616

Screw, Hex Head

$7.49

$

In Stock, only 2 left!

0

45

Husqvarna 532184074

Pivot Bracket, Impeller Idler Arm
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532410877

Pan, Frame Bottom

$31.99

$

In Stock, only 2 left!

0

47

Husqvarna 532184471

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532416155

Frame Assembly

$42.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532416921

Plate, Rear

$

$

Not available

51

Husqvarna 532406109

Shaft, Auger Control
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

52

Husqvarna 532057079

Washer, Hardened

$6.49

$

In Stock, Qty 12

0

53

Husqvarna 532035062

Key, Safety
(Superseded to 531300340)

$

$

Not available

57

Husqvarna 811050500

Washer, Lock, External Tooth 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 4 left!

0

58

Husqvarna 532198563

Power Cord

$24.99

$

In Stock, only 1 left!

0
