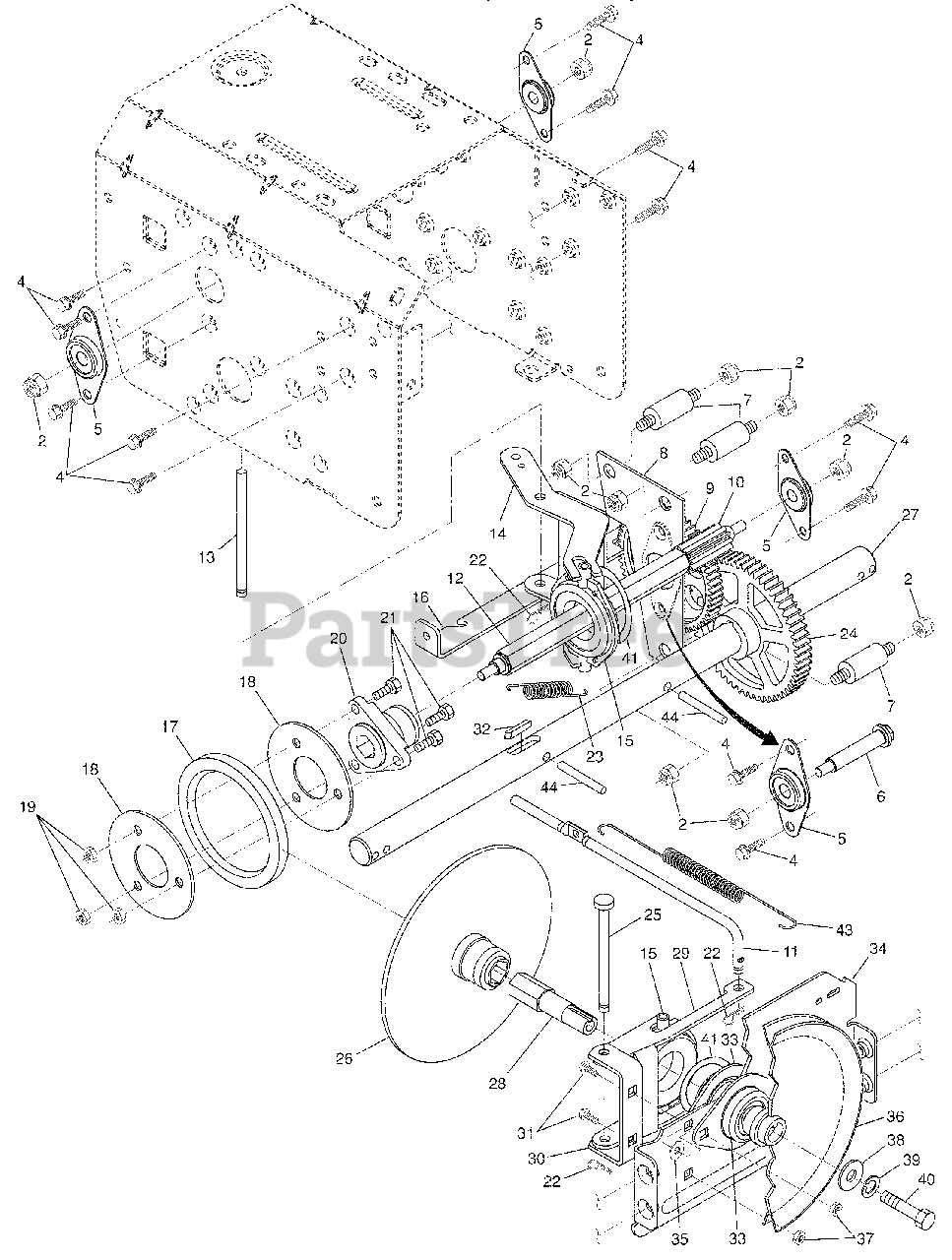

1130 SBE (961930017-03) - Husqvarna 30" Snow Blower (2007-09) Drive Parts Diagram

30" Snow Blower

Drive Parts Diagram

  • Title

2

Husqvarna 532751153

Nut, Lock 5/16-18

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 817490508

Screw, Hex Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532180017

Bearing, Flange

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532180134

Shaft, Auxiliary

$

$

Not available

7

Husqvarna 532179270

Spacer, Plate

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532192907

Plate, Auxiliary
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532180082

Gear, Intermediate (12/58)
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

10

Husqvarna 532180065

Gear, Pinion

$

$

Not available

11

Husqvarna 532187714

Rod, Clutch

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532180066

Shaft, Long, Hex

$

$

Not available

13

Husqvarna 532178807

Pin, Pivot

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532184080

Lever, Shifter / Wheel

$

$

Not available

15

Husqvarna 532175344

Trunnion Bearing Assembly
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

16

Husqvarna 532187857

Bracket, Pivot, Shift
(Superseded to 532435793)

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532179831

Ring, Rubber Wheel
(Superseded to 585021001)

$26.99

$

In Stock, only 4 left!

0

18

Husqvarna 532199509

Plate, Rubber Wheel
(Superseded to 532435789)

$

$

Not available

19

Husqvarna 873930500

Nut, Lock 5/16-18

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 532178613

Hub, Rubber Wheel

$30.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874760514

Screw, Hex Head 5/16-18 x 7/8
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532180135

Spring, Bias

$6.49

$

In Stock, Qty 10

0

24

Husqvarna 532180081

Gear, Axle (58 Teeth)
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

25

Husqvarna 532178695

Pin, Pivot Lever

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532197763

Plate Assembly, Drive

$66.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532404307

Shaft, Axle

$72.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532197764

Shaft, Short Hex

$14.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532184077

Lever, Shifter Plate

$12.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532184076

Bracket, Shifter Support
(Superseded to 532175349)

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 872270505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532189282

Key, Square 1/4 x 1/4 x 7/8

$7.49

$

In Stock, only 1 left!

0

33

Husqvarna 532188909

Bearing, Flange

$28.99

$

In Stock, only 4 left!

0

34

Husqvarna 532184075

Plate, Drive Mounting

$14.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532182504

Spacer, Bearing

$6.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532191080

Pulley, Traction Drive

$66.99

$

In Stock, only 1 left!

0

37

Husqvarna 532155377

Nut, Lock 5/16-18

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 819111507

Washer, Flat

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 3 left!

0

41

Husqvarna 812000012

Ring, Retaining
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532179095

Spring, Return

$6.49

$

In Stock, only 1 left!

0

44

Husqvarna 532184206

Pin, Roll

$4.99

$

Usually ships in 3-10 days

0
