1130 SB XLS (961930030-00) - Husqvarna 30" Snow Blower (2008-09) Transmission / Drive Parts Diagram

30" Snow Blower

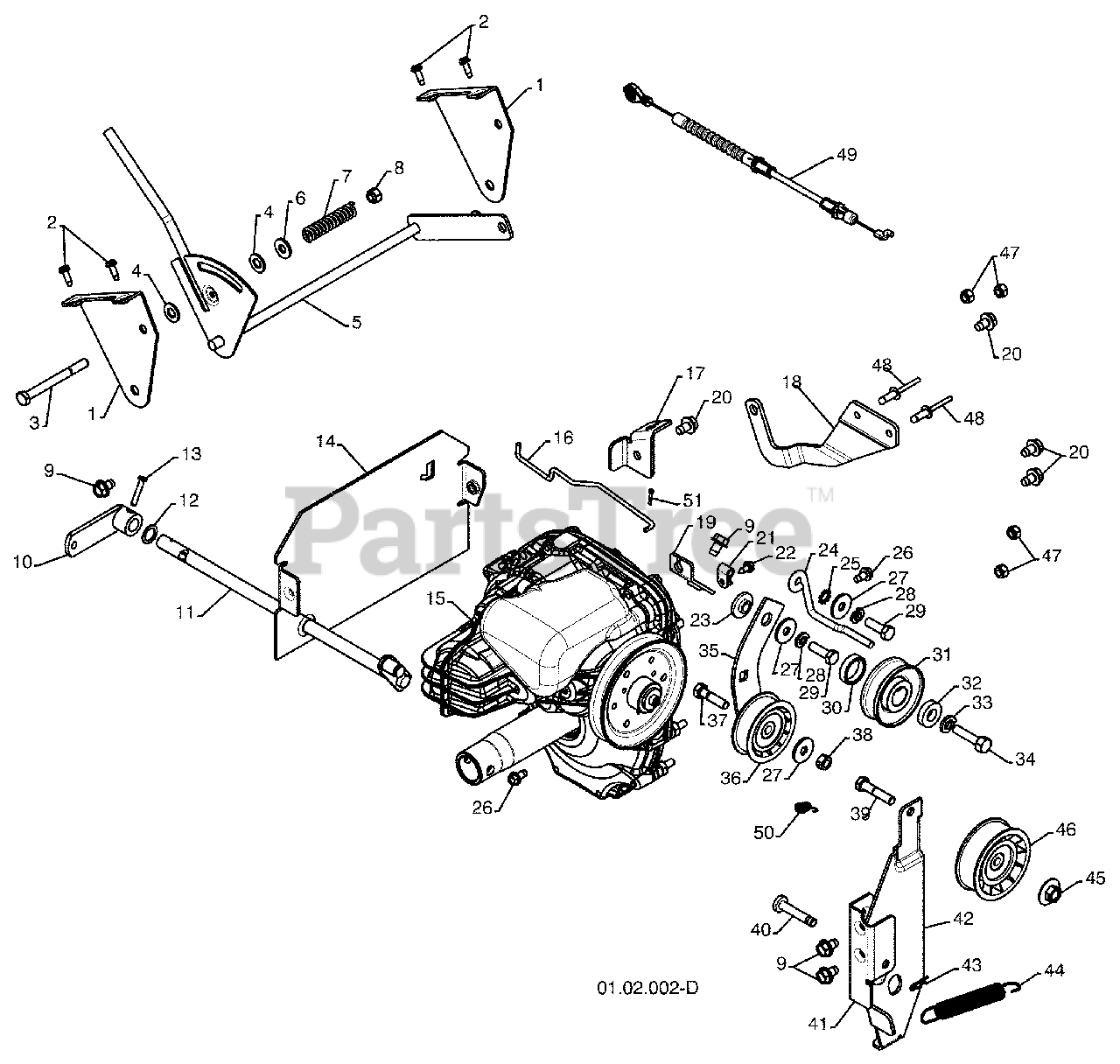

Transmission / Drive Parts Diagram

  • Title
1

Husqvarna 532192002

SHIFT BRACKET
(Superseded to 532443344)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

3

Husqvarna 874760552

SCREW 5/16-18 X 3.25

$

$

Not available

4

Husqvarna 532179246

PLASTIC WASHER

$7.49

$

In Stock, Qty 6

0

5

Husqvarna 532192001

SHIFT ASSEMBLY

$34.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 532192195

FRICTION SPRING

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 873800500

NUT 5/16-18

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 817490508

BOLT 5/16-18 X .500
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532405484

CONTROL ARM

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532406109

CONTROL SHAFT
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 10

0

13

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532407868

REAR PLATE

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532187776

TRANSMISSION

$1092.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532192000

REAR CABLE BRACKET

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187787

CONTROL ARM

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532191993

FRONT CABLE BRACKET

$

$

Not available

20

Husqvarna 532150078

SCREW 5/16-18 X .750
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817391208

SCREW .12 X .50

$

$

Not available

23

Husqvarna 532175331

BUSHING
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532193607

BELT GUIDE

$14.99

$

In Stock, only 1 left!

0

25

Husqvarna 811050500

LOCKWASHER 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 817490408

SCREW 1/4-20 X .500
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 810040500

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 874610516

SCREW 5/16-18 X 1.00

$4.99

$

In Stock, only 3 left!

0

$9.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532180478

ENGINE TRACTION PULLEY
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

$9.49

$

In Stock, only 3 left!

0

33

Husqvarna 532850263

LOCKWASHER 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 532851084

SCREW 3/8-24 X 1.38
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532187786

TRACTION IDLER ARM
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

36

Husqvarna 532180522

IDLER PULLEY

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 874780520

SCREW 5/16-18 X 1.25
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873930500

NUT 5/16-18

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 874780524

SCREW 5/16-18 X 1.50
(Superseded to 539976935)

$

$

Not available

$5.99

$

In Stock, Qty 18

0

41

Husqvarna 532407849

IDLER PIVOT BRACKET

$

$

Not available

42

Husqvarna 532422111

IDLER BRAKE ARM

$15.99

$

In Stock, only 1 left!

0

43

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532178828

BRAKE SPRING

$6.49

$

In Stock, only 2 left!

0

45

Husqvarna 532166785

NUT 5/16-18
(Superseded to 585802801)

$5.99

$

In Stock, only 2 left!

0

$24.99

$

Usually ships in 3-10 days

0

47

Husqvarna 873800400

NUT 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

48

Husqvarna 532191995

POP RIVET 1/4 X .475

$2.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532198466

CLUTCH CABLE

$

$

Not available

50

Husqvarna 532192873

TRACTION SPRING

$4.99

$

In Stock, only 4 left!

0

51

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0
