1130 (31AH5SQ5711) - Troy-Bilt Storm 30" Snow Thrower (2007) Auger & Auger Housing Parts Diagram

Storm 30" Snow Thrower

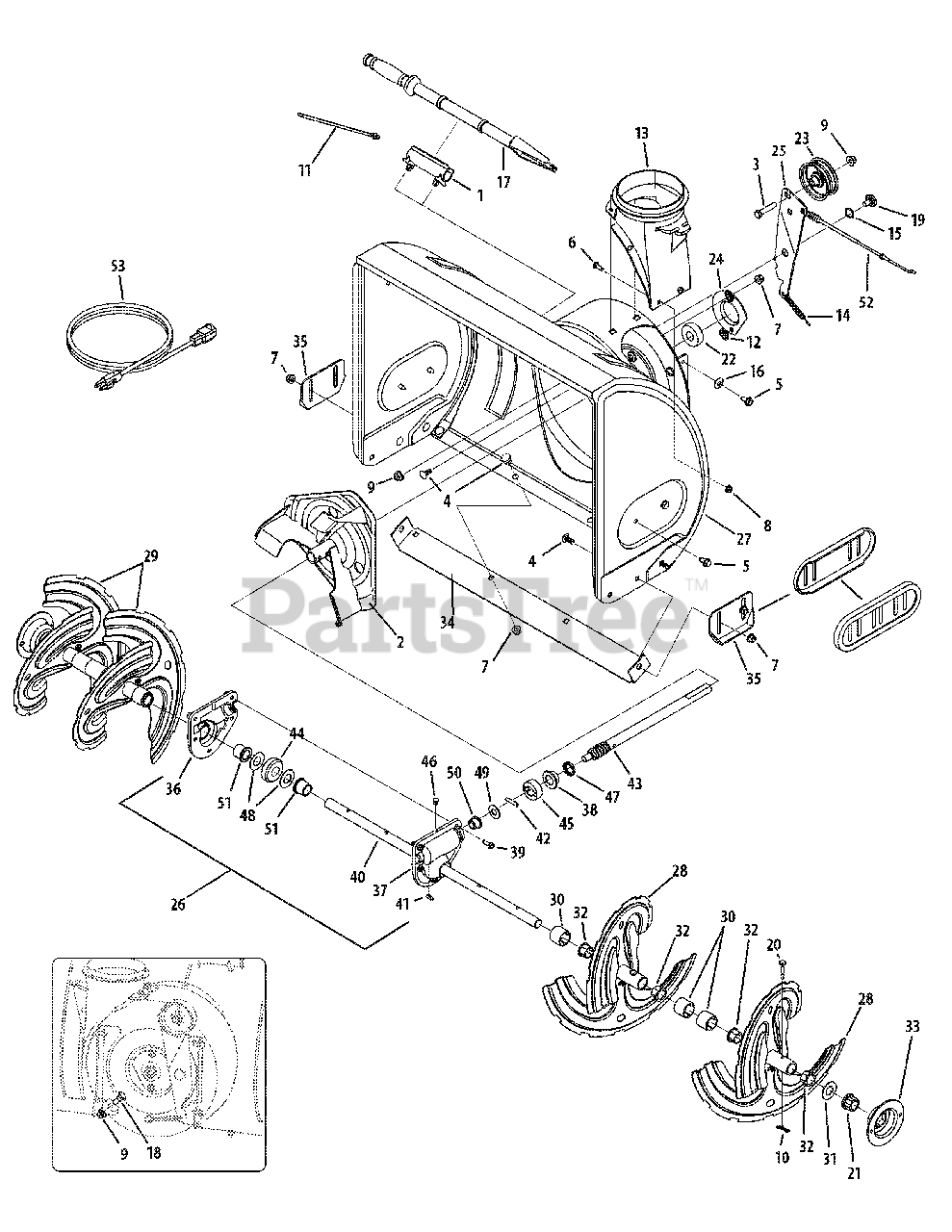

Auger & Auger Housing Parts Diagram

1

Troy-Bilt 731-2635

Clean-out Tool Bracket
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 8

0

2

Troy-Bilt 684-04057A-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)
(Superseded to 684-04057C-0637)

Variations

$73.99

$

In Stock, Qty 13

0

3

Troy-Bilt 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18, .750 Gr1

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-04484

Screw, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0703

Carriage Screw, 1/4-20, .750, Gr5

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04065

Flaneg Lock Nut, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 726-04012

Speed Nut

$7.49

$

In Stock, only 4 left!

0

13

Troy-Bilt 731-04705

Chute Adapter
(Superseded to 731-04705D)

$26.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 732-04460

Extension Spring, .38 OD x 3.6

$5.49

$

In Stock, Qty 14

0

15

Troy-Bilt 736-0174

Wave Washer, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 731-2643

Clean-out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 3 left!

0

18

Troy-Bilt 738-0143

Shoulder Screw, .498 x .34, 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-0281

Shoulder Screw, .625 x .17, 3/8-16

$10.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0245

Hex Flange Bearing x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 741-0309

Ball Bearing, .75 ID x 1.85 OD
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-0981B

Idler Pulley, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 790-00075

Bearing Housing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 6

0

25

Cub Cadet 790-00080C-0637

Auger Idler Bracket - POWDER BLACK
(Superseded to 790-00080D)

Variations

$28.99

$

In Stock, Qty 5

0

26

Troy-Bilt 618-04170A

AUger Gearbox Assembly, 22"
(Superseded to 918-04170C)

$399.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 618-04171A

Auger Gearbox Assembly, 24"
(Superseded to 918-04171C)

$407.99

$

In Stock, Qty 6

0

26

Troy-Bilt 618-04172A

Auger Gearbox Assembly, 26"
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 618-04173A

Auger Gearbox Assembly, 28"
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 618-04194A

Auger Gearbox Assembly, 30"
(Superseded to 918-04165B)

$447.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 684-04262-0638

HOUSING ASM-AUGER - MTD/TROY-BILT RED (0638)
(Superseded to 684-04262A)

Variations

$

$

Not available

27

Troy-Bilt 684-04265-0638

HOUSING ASM-AUGER - MTD/TROY-BILT RED (0638)
(Superseded to 684-04265A)

Variations

$293.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 684-04264-0606

HOUSING ASM-AUGER - MAJESTIC ORANGE (0606)
(Superseded to 684-04264A)

Variations

$275.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 684-04268-0691

HOUSING ASM-AUGER - BLACK JACK (0691)
(Superseded to 684-04268A)

Variations

$374.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 684-04273-0638

HOUSING ASM-AUGER - MTD/TROY-BILT RED (0638)
(Superseded to 684-04273A)

Variations

$310.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)
(Superseded to 684-04107A)

Variations

$89.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)
(Superseded to 684-04108A)

Variations

$94.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 731-04870

Spacer, 1.25 OD x .75 ID x 1.00

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 741-0493A

Flange Bushing, .80 ID x .91 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

Variations

$22.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 790-00117-0637

Shave Plate, 22" Black - POWDER BLACK

Variations

$30.99

$

In Stock, Qty 17

0

34

Troy-Bilt 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

Variations

$34.99

$

In Stock, Qty 19

0

34

Troy-Bilt 790-00121-0637

Shave Plate, 26" Powder Black - POWDER BLACK

Variations

$36.99

$

In Stock, Qty 13

0

34

Troy-Bilt 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

Variations

$37.99

$

In Stock, Qty 6

0

34

Troy-Bilt 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

Variations

$39.99

$

In Stock, Qty 6

0

35

Troy-Bilt 790-5580

Skid Shoe, Standard

$

$

Currently unavailable

35

Troy-Bilt 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

Variations

$30.99

$

In Stock, only 4 left!

0

35

Troy-Bilt 790-05984

Skid Shoe. Plastic

$

$

Currently unavailable

36

Troy-Bilt 618-0124A

Auger Housing, RH Reduced
(Superseded to 918-0124A)

$52.99

$

In Stock, only 2 left!

0

37

Troy-Bilt 618-0123A

Auger Housing, LH Reduced
(Superseded to 918-0123A)

$52.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 6

0

39

Troy-Bilt 710-0642

Sel-tapping Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 711-04286

Auger Axle, 22"
(Superseded to 711-04286A)

$45.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 711-04285

Auger Axle, 24"
(Superseded to 711-04285A)

$90.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 711-04284

Auger Axle, 26"
(Superseded to 711-06144)

$82.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 711-04283

Auger Axle, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 711-04282

AUger Axle, 30"
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 714-0161

Hi-pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 715-04021

Dowel Pin, .25 OD x 1.2

$4.49

$

In Stock, only 4 left!

0

43

Troy-Bilt 717-04126

Worm Shaft, .75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, only 3 left!

0

44

Troy-Bilt 717-04449

Worm Gear, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 12

0

46

Troy-Bilt 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

47

Troy-Bilt 721-0327

Oil Seal, .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 736-0351

Flat Washer, .760 ID x 1.5 OD

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 736-3084

Flat Washer, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 741-0663

Flange Bearing, .75 x 1.0 x .925

$9.99

$

In Stock, Qty 15

0

51

Troy-Bilt 741-0661A

Flaneg Bearing, .75 x 1.00 x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 746-04230

Auger Clutch Cable, 47.23"
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 629-0071

Extension Cord, 110V, 3-Prong
(Superseded to 929-0071B)

Note: If equipped

$21.99

$

In Stock, Qty 6

0
