113-338A137 - Western Sun Walk-Behind Mower (1993) (Intermountain Farmer) Handle And Deck Assemby Parts Diagram

Walk-Behind Mower

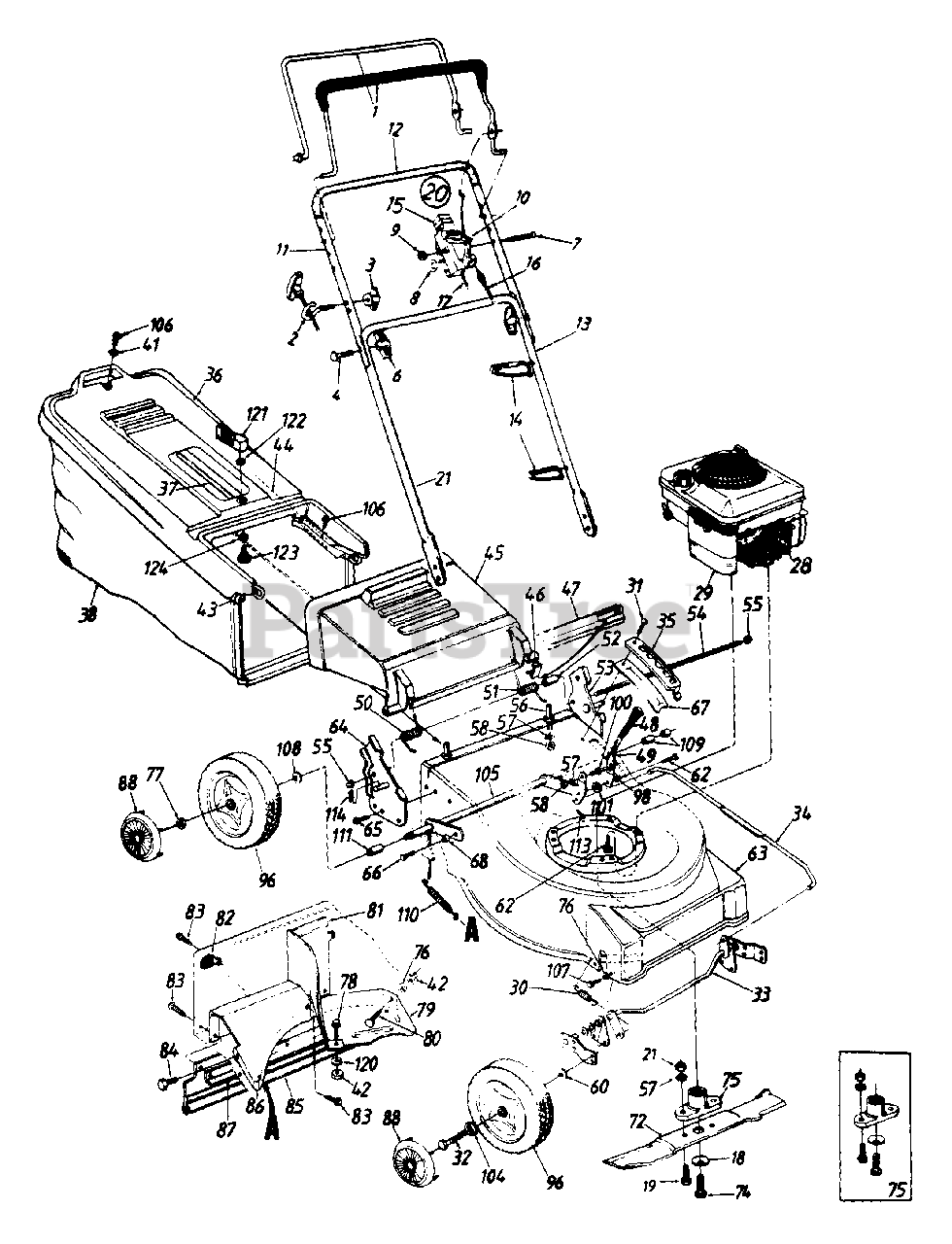

Handle And Deck Assemby Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0276

2" Lg. Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

8

MTD 736-0501

Spr. Wash..66" I.D
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

11

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

16

MTD 746-0554

Control Cable
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

17

MTD 746-0843

Throttle Control Wire - 55"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

18

MTD 736-0453

Bell-Wash 46" ID
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

19

MTD 710-7055

Hex Bolt 3/8-24 x 1" Lg.

$

$

Currently unavailable

20

MTD 811-0016A

Throttle Box Comp

Note: (Incl Ref 7, 8,9, 10, 15)

$

$

Currently unavailable

21

UNKNOWN

$

$

Not available

28

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

29

Engine

$

$

Not available

30

MTD 732-0589

Extension spring 2.39" Lg

$

$

Not available

31

MTD 710-1017

Torx Hd. AB-Tap Scr. 1/4"- 62" Lg.

$8.49

$

In Stock, Qty 9

0

32

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

33

MTD 17022

Front Axle Ass'y.
(Superseded to 17022-0637)

Variations

MTD 17022-0637

AXLE ASSY - POWDER BLACK (0637)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

34

MTD 747-0699

Height Adj. Connecting Rod

$

$

Not available

35

MTD 17323

Height Adjustment Plate

$

$

Not available

36

MTD 731-0857A

Hardtop Bag Cover
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

37

MTD 731-0856

Hardtop Handle
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

38

MTD 764-0252

Grass Bag
(Superseded to 964-0252)

$143.99

$

In Stock, only 1 left!

0

41

MTD 736-0463

Fl-Wash..281" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 12

0

42

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

MTD 764-0411

Front Catcher Frame
(Superseded to 764-0411-0637)

Variations

MTD 764-0411-0637

CATCHER-FRT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

44

MTD 749-0736A

Rear Catcher Frame

$

$

Not available

45

MTD 731-0659

Chute Deflector

$

$

Currently unavailable

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0858

Seal - Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

MTD 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

MTD 732-0578A

Torsion spring - R.H.
(Superseded to 732-0578B)

$

$

Not available

51

MTD 732-0577A

Torsion spring - L.H.
(Superseded to 932-0577B)

$

$

Not available

52

MTD 750-0566

Spacer .255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

53

MTD 12297A

Handle Brkt Ass'y - L.H.

$

$

Not available

54

MTD 747-0696B

Hinge Pin 17.75" Lg.

$

$

Currently unavailable

55

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

56

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

MTD 736-0169

L-Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0105

Bell-Wash 38" I.D. x 88" O.D.

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0654A

Hex L-Wash Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

63

MTD 16997

21" Deck Ass'y

$

$

Currently unavailable

64

MTD 12296A

Handle Brkt Ass'y - R.H.
(Superseded to 12296B-0637)

$

$

Not available

65

MTD 710-0892

Hex L-Wash Hd AB-Tap Scr 1/4 x 62" Lg.
(Superseded to 910-0892)

$

$

Not available

66

MTD 710-1006

Hex Wash Hd. Tap Scr. 3/8-16 x 75" Lg.
(Superseded to 910-1006)

$

$

Not available

67

MTD 721-0216

Height Adjustment Support

$

$

Not available

68

MTD 750-0526

Spacer 385" I.D.

$4.99

$

In Stock, only 1 left!

0

72

MTD 742-0621

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

74

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

75

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

76

MTD 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

77

MTD 712-0346

Hex Jam Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

78

MTD 710-0252

Hex Bolt 1/4-20 x 85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

79

MTD 17013

Rear Belt Baffle

$

$

Not available

80

MTD 710-0167

Carr Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

MTD 17007

Rear Panel Baffle

Variations

MTD 17007-0637

Rear Panel Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 731-0931

Corner Plug

$

$

Not available

83

MTD 710-1017

Torx Mach AB-Tap Scr 1/4" x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

MTD 710-0352

Hex B-Tap Scr 1/4 x 38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 731-0669

Rear Flap

$50.99

$

Usually ships in 3-6 days

0

86

MTD 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

MTD 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

MTD 14847

Retaining Strip

Variations

MTD 14847-0637

Retaining Strip - POWDER BLACK (0637)

$

$

Not available

$

$

88

Hub Cap

$

$

Not available

96

MTD 734-1512A

Wheel Ass'y Comp
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

98

MTD 750-0624

Shld Spacer 50" Dia.

$

$

Not available

100

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

MTD 736-0258

Fl-Wash .375" I.D. x 1.0"

$4.49

$

In Stock, only 3 left!

0

104

MTD 736-0232

Wave Wash .53" I.D x .78"

$4.99

$

In Stock, Qty 12

0

105

MTD 17031

Rear Axle Ass'y

$

$

Not available

106

MTD 710-0892

Hex L-Wash AB-Tap Scr 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

107

MTD 710-0352

Hex L-Wash MD AB-Tap Scr 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

108

MTD 736-0108

Fl-Wash .510" I.D x .75"

$6.99

$

Usually ships in 3-6 days

0

109

MTD 711-0500

Spacer 526" I.D.

$

$

Not available

110

MTD 732-0481

Extension spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

MTD 717-0313

Sleeve .526" I.D.

$

$

Currently unavailable

113

MTD 714-0507

Cotter Pin 3/32" Dia. x 75"

$4.49

$

In Stock, Qty 12

0

114

MTD 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

120

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

121

MTD 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

122

MTD 736-0498

Internal L-Wash 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

123

MTD 738-0137

Shld Bolt .342" Dia. x .268

$

$

Not available

124

MTD 736-0286

Wave Washer 3/8" I.D.
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0
