113-108C190 - White Outdoor 21" Walk-Behind Mower (1993) 21" ERS Mulching 3-in-1 Mower Parts Diagram

21" Walk-Behind Mower

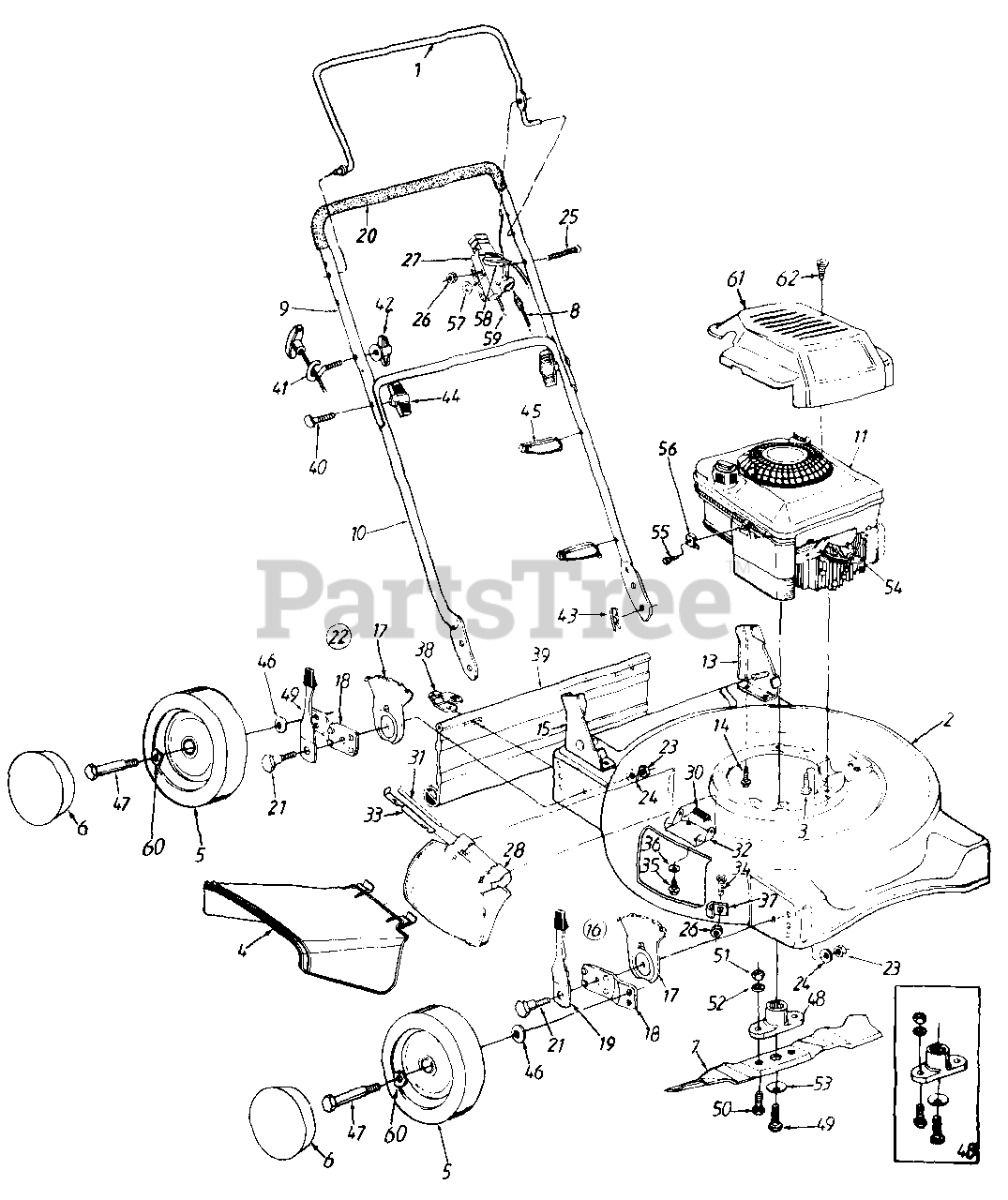

21" ERS Mulching 3-in-1 Mower Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

682-0016

20" Deck Assembly

$

$

Not available

3

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

4

White Outdoor 731-1407

Side Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

5

White Outdoor 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

White Outdoor 741-0484

Wheel Bearings
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

6

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

7

White Outdoor 742-0720

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

8

White Outdoor 746-0550

Control Cable - 39" (Green)
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

9

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

11

5 H.P. Engine

$

$

Not available

13

White Outdoor 12935B

Handle Brkt. Ass'y. - L.H.

Variations

White Outdoor 12935B-0637

No Longer Available BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

14

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

15

White Outdoor 12936B

Handle Brkt. Ass'y. - R.H.

Variations

White Outdoor 12936B-0637

No Longer Available BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 14578

Hgt. Adj. Ass'y. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

17

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

18

White Outdoor 15262B

Small Wheel Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

19

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

20

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

21

White Outdoor 738-0507B

Shoulder Bolt .5" Dia. x .434"

$4.49

$

In Stock, only 4 left!

0

22

White Outdoor 14579

Height Adj. Ass'y. - L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

23

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

24

White Outdoor 736-0356

Bell-Wash. .39" I.D.
(Superseded to 936-0356)

$

$

Not available

25

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

26

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

27

White Outdoor 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

28

White Outdoor 682-7000

Mulching Plug Ass'y.

Note: (Incl. Ref. 30, 31, 32)

$

$

Not available

30

White Outdoor 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 782-7006

Plug Adapter

Variations

White Outdoor 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

33

UNKNOWN

$

$

Not available

34

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

35

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 736-0270

Bell-Wash. .265" I.D.

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 782-7009

Chute Stop Brkt.

Variations

White Outdoor 782-7009-0637

No Longer Available BRACKET-CHUTE STOP - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

39

White Outdoor 731-1447

Rear Flap

$

$

Not available

40

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

41

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

42

White Outdoor 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

43

White Outdoor 714-0104

Int. Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 720-0276

Handle Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

45

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

46

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

48

White Outdoor 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

49

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. - Gr. 5

$3.99

$

In Stock, Qty 9

0

50

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

51

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

54

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

55

White Outdoor 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

56

White Outdoor 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

57

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

58

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

59

White Outdoor 746-0842

Throttle Wire - 51" (Red)
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

60

White Outdoor 736-0504

Wave-Wash.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

61

White Outdoor 751B281302

Engine Shroud

$

$

Not available

62

White Outdoor 710-1256

Screw #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0
