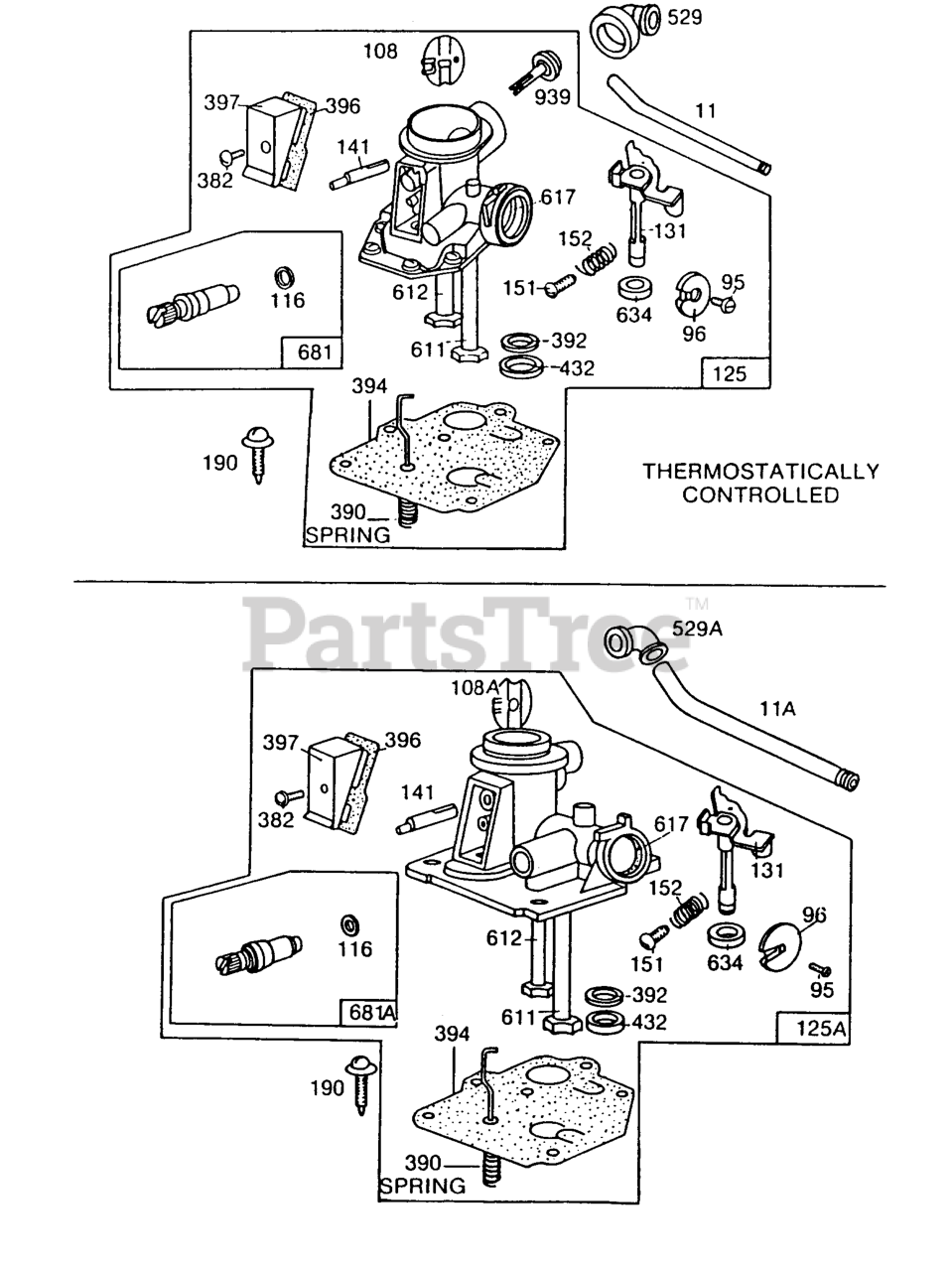

112902-3131-01 - Briggs & Stratton Vertical Engine Carburetor Assemblies Parts Diagram

Vertical Engine

Carburetor Assemblies Parts Diagram

  • Title

11A

Briggs & Stratton 231043

Tube-Breather

$7.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 231292

Tube-Breather

$4.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 280178

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280429

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

125A

Briggs & Stratton 395957

Carburetor Assy.

$

$

Not available

125

Briggs & Stratton 397178

Carburetor Assy.

$123.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 299977

Shaft-Throttle

$15.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 11

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

382

Briggs & Stratton 93545

Screw-Cover

$3.49

$

In Stock, only 1 left!

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Pump Diaphragm
(Superseded to 692206)

$4.49

$

In Stock, Qty 10

0

394

Briggs & Stratton 391643

Diaphragm-Carburetor
(Superseded to 391681)

$19.99

$

In Stock, Qty 8

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, Qty 5

0

529A

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

529

Briggs & Stratton 280368

Grommet-Breather

$7.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 297219

Tube-Pick Up (2-5/8" Long)
(Superseded to 297219S)

$8.99

$

Usually ships in 2-12 days

0

612

Briggs & Stratton 296811

Pipe/Sleeve Assy
(Superseded to 497413S)

$7.49

$

In Stock, Qty 9

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

681A

Briggs & Stratton 393451

Neddle Valve (Plastic Body)
(Superseded to 395508)

$8.99

$

Usually ships in 2-12 days

0

681

Briggs & Stratton 395508

Valve-High Speed (Nylon Body)

$8.99

$

Usually ships in 2-12 days

0

939

Briggs & Stratton 395665

Shaft-Auto Choke (Includes Spring)

$14.99

$

Usually ships in 2-12 days

0
