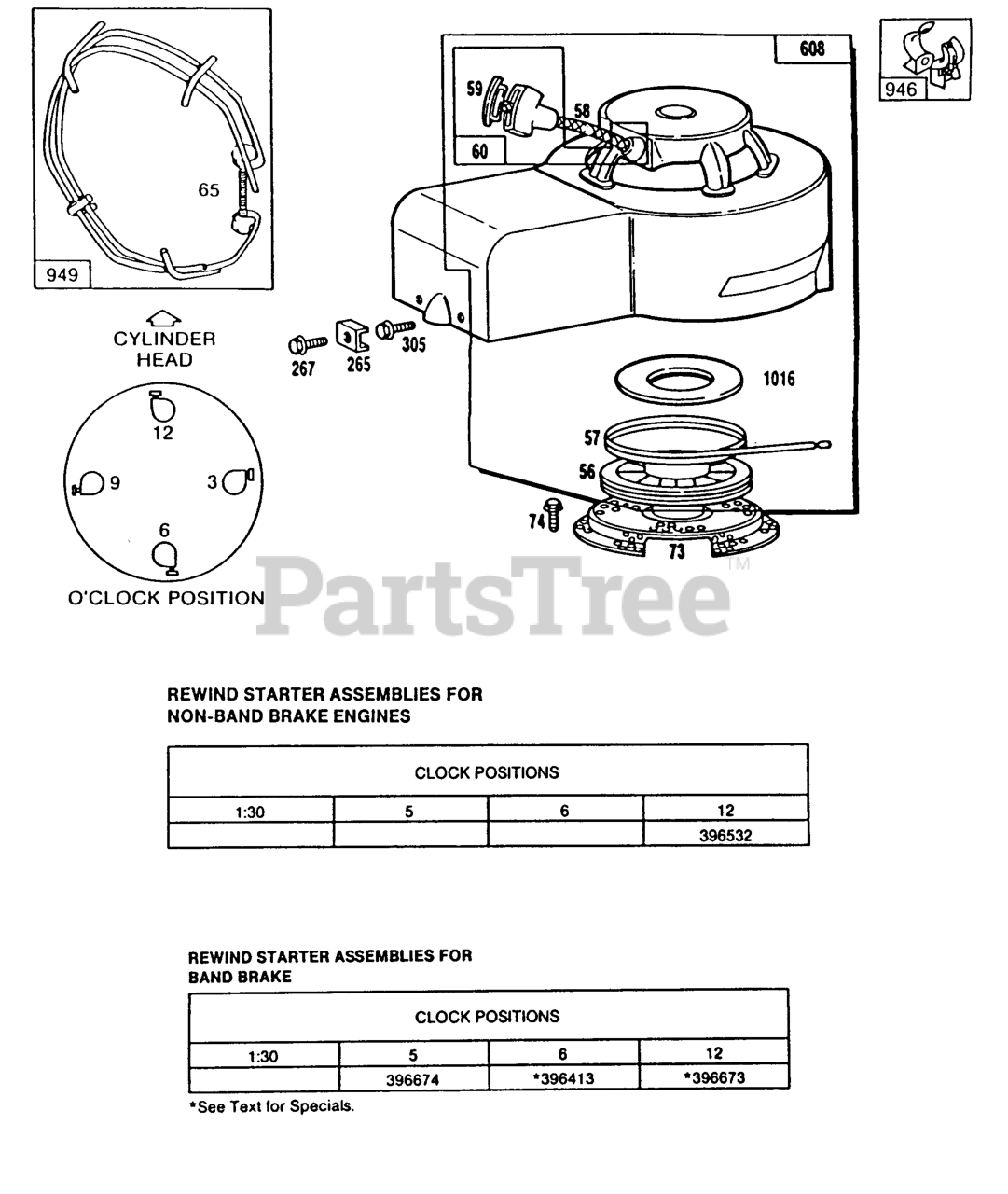

112902-3131-01 - Briggs & Stratton Vertical Engine Blower Hsgs,Rewind Parts Diagram

Vertical Engine

Blower Hsgs,Rewind Parts Diagram

  • Title
56

Briggs & Stratton 280117

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 12

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 280406

Rope, Starter (81" Cut To Required Length)
(Superseded to 280406S)

Note: If longer rope is needed, Order No. 280399 and cut to required length. Order 66734 for 48-5/8" long rope.

$8.49

$

In Stock, Qty 5

0

59

Briggs & Stratton 396892

Insert-Starter Rope

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94124

Screw-Round Head

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

Note: Included in Starter Drive Kit-Part No. 395727

$3.99

$

In Stock, Qty 8

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw, Hex Head Thr
(Superseded to 691044)

$3.99

$

In Stock, Qty 6

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

608

No Nomenclature

$

$

Not available

608

Briggs & Stratton 396413

Rewind Starter Assemblies For Band-Brake Clock Positions 6

Note: See Text for Specials

$40.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 396532

Starter-Rewind (12 O'clock)

$44.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 396673

Starter-Rewind (82" Rope, 12 O'clock)

Note: See Text for Specials

$55.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 396674

Starter-Rewind (88" Rope, 6 O'clock)

$67.99

$

Usually ships in 2-12 days

0

946

Briggs & Stratton 396526

Guide-Rope
(Superseded to 205912GS)

$4.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 396579

Guard-Finger (Includes Mtg. Parts)

$9.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
