112702-3065-01 - Briggs & Stratton Vertical Engine (2)Sump Bases,Right Angle Dr Parts Diagram

Vertical Engine

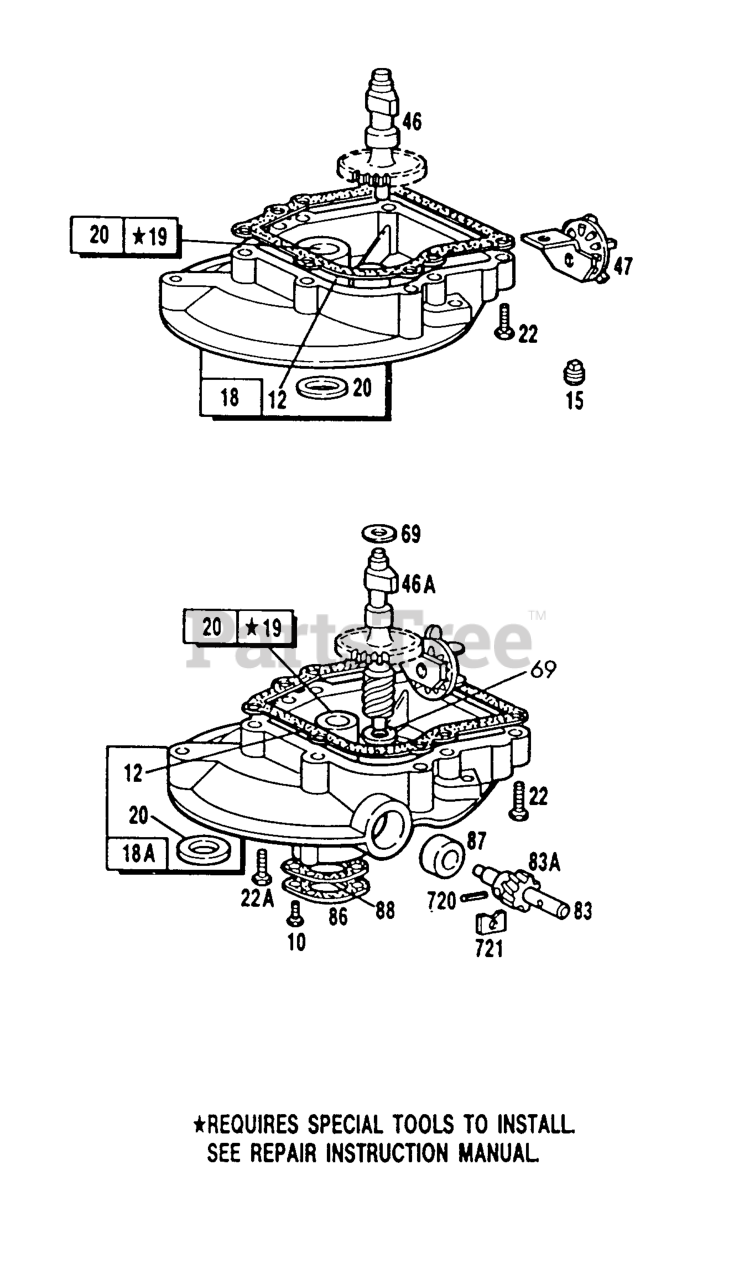

(2)Sump Bases,Right Angle Dr Parts Diagram

  • Title

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

Note: Included in Gasket Set-Part No. 493263

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

Note: Included in Gasket Set-Part No. 493263

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

Note: Included in Gasket Set-Part No. 493263

$5.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 91084

Plug, Pipe (Standar (3/8")
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

18

Briggs & Stratton 395384

Sump-Oil
(Superseded to 590569)

$104.99

$

In Stock, Qty 5

0

19

Briggs & Stratton 293709

Bushing/Seal Kit (Plain)

Note: Requires Special Tools for Installation.

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

46A

Briggs & Stratton 395904

Cam Gear, Worm And Oil Slinger Assy.

$69.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 395856

Gear-Cam

$69.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear And Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 66874

Washer-Thrust (11/16" O.d. X 15/32" I.d.)

$3.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 68938

Washer, Thrust
(Superseded to 691074)

Note: Used on Auxiliary Drive P.T.O. Camshaft and is Located Next to the Worm Gear. (13/16 ODx17/32 ID) Use on Aux Drive PTO.Cam

$

$

Not available

83A

Briggs & Stratton 231278

Gear, Helical (Clockwise)
(Superseded to 690516)

$40.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 230831

Shaft-Drive
(Superseded to 691240)

$9.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 221780

Cover-Sump
(Superseded to 690398)

$3.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 391484

Seal, Auxiliary PTO (For 1/2"Auxiliary Drive Shaft)
(Superseded to 691952)

$9.99

$

In Stock, Qty 8

0

88

Briggs & Stratton 270328

Gasket-Sump Cover
(Superseded to 691868)

$4.49

$

Usually ships in 2-12 days

0

720

Briggs & Stratton 93474

Pin-Shaft
(Superseded to 691623)

$

$

Not available

721

Briggs & Stratton 221779

Stop-Shaft
(Superseded to 690397)

$4.99

$

Usually ships in 2-12 days

0
