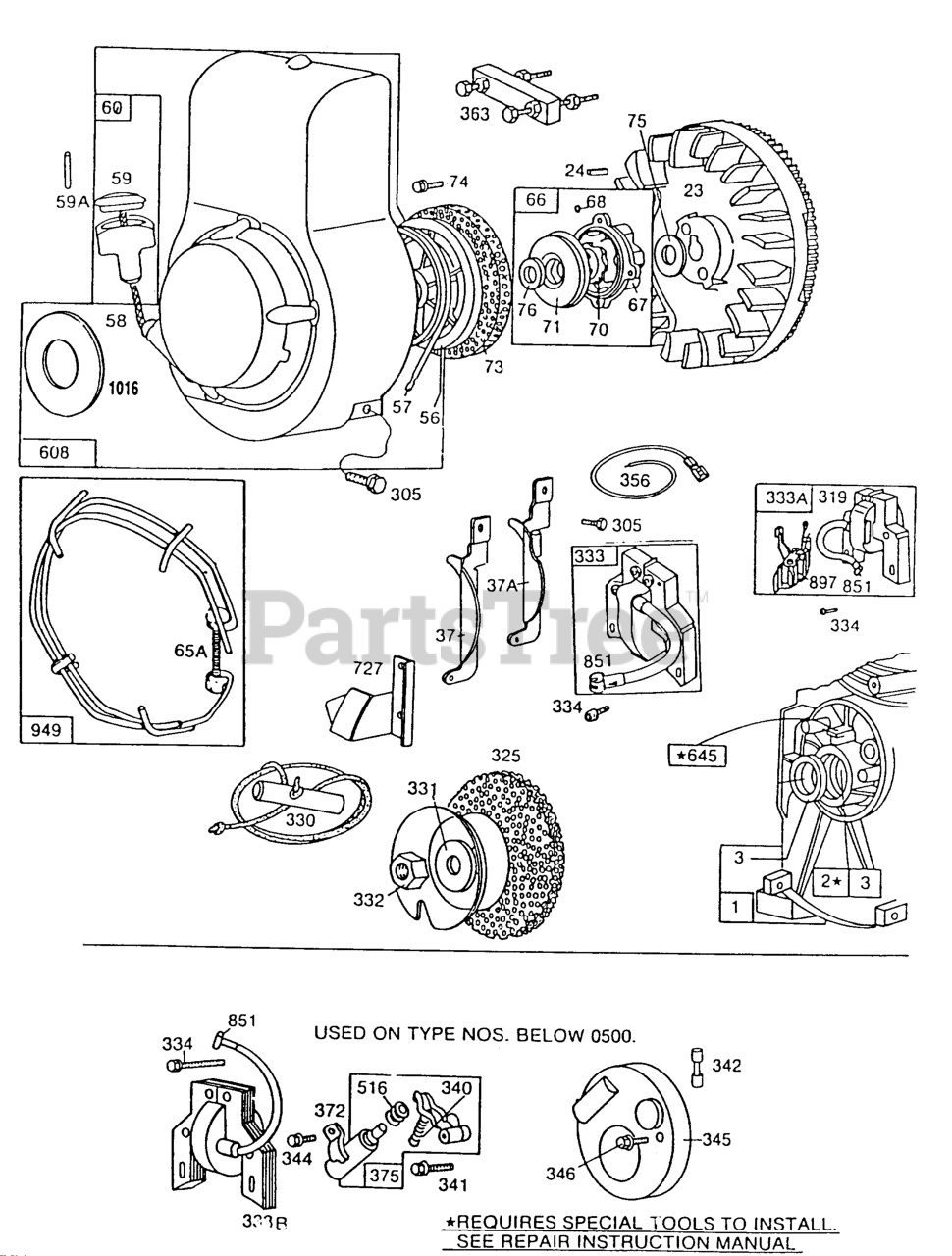

112202-0638-01 - Briggs & Stratton Horizontal Engine Blower Hsgs,Rewind,Flywheel Parts Diagram

Horizontal Engine

Blower Hsgs,Rewind,Flywheel Parts Diagram

  • Title

1

Briggs & Stratton 395970

Cylinder Assembly

$190.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 395971

Cylinder Assy.

$223.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

Note: Requires special tools for installation.

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 393862

Seal, Oil (Cam Gear)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 394413

Flywheel-Magneto

$110.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37A

Briggs & Stratton 223104

Guard-Flywheel (For Electric Starter)

$4.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 223087

Guard-Flywheel

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 280439

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 12

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66734

Rope-Starter (48-5/8")

$6.49

$

In Stock, Qty 12

0

59A

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

59

Briggs & Stratton 396892

Insert-Starter Rope

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

319

Briggs & Stratton 298502

Armature-Mag (For Points And Condenser)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

325

Briggs & Stratton 298731

Pulley-Rope Start (5/8" Hole In Pulley)

$18.99

$

Usually ships in 2-12 days

0

330

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

331

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333B

Briggs & Stratton 298502

Armature-Mag (For Points And Condenser)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 395489

Ignition Grp (Magnetron Ignition)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 398593

Ignition Kit (For Magnetron)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover-Breather Point And Condenser

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

372

Briggs & Stratton 220477

Clamp-Condensor

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Breaker Points And Condensor Set

$

$

Not available

375

Briggs & Stratton 299061

Ignition Kit
(Superseded to 294628)

Note: Includes: 294628 Point Set 65604 Plunger 61760 Key-Flywheel (For Conversion to MAGNETRON Ignition Order Part No. 394970.)

$

$

Not available

516

Briggs & Stratton 260374

Condenser Spring

$7.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 394827

Starter Assy.-Rewind (10 O'clock)

$44.99

$

Usually ships in 2-12 days

0

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 223103

Cover-Blower Housing

$8.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available

949

Briggs & Stratton 396579

Guard-Finger (Includes Mtg. Parts)

$9.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
