112-508R190 - White Outdoor 22" Walk-Behind Mower (1992) Rotary Mower Parts Diagram

22" Walk-Behind Mower

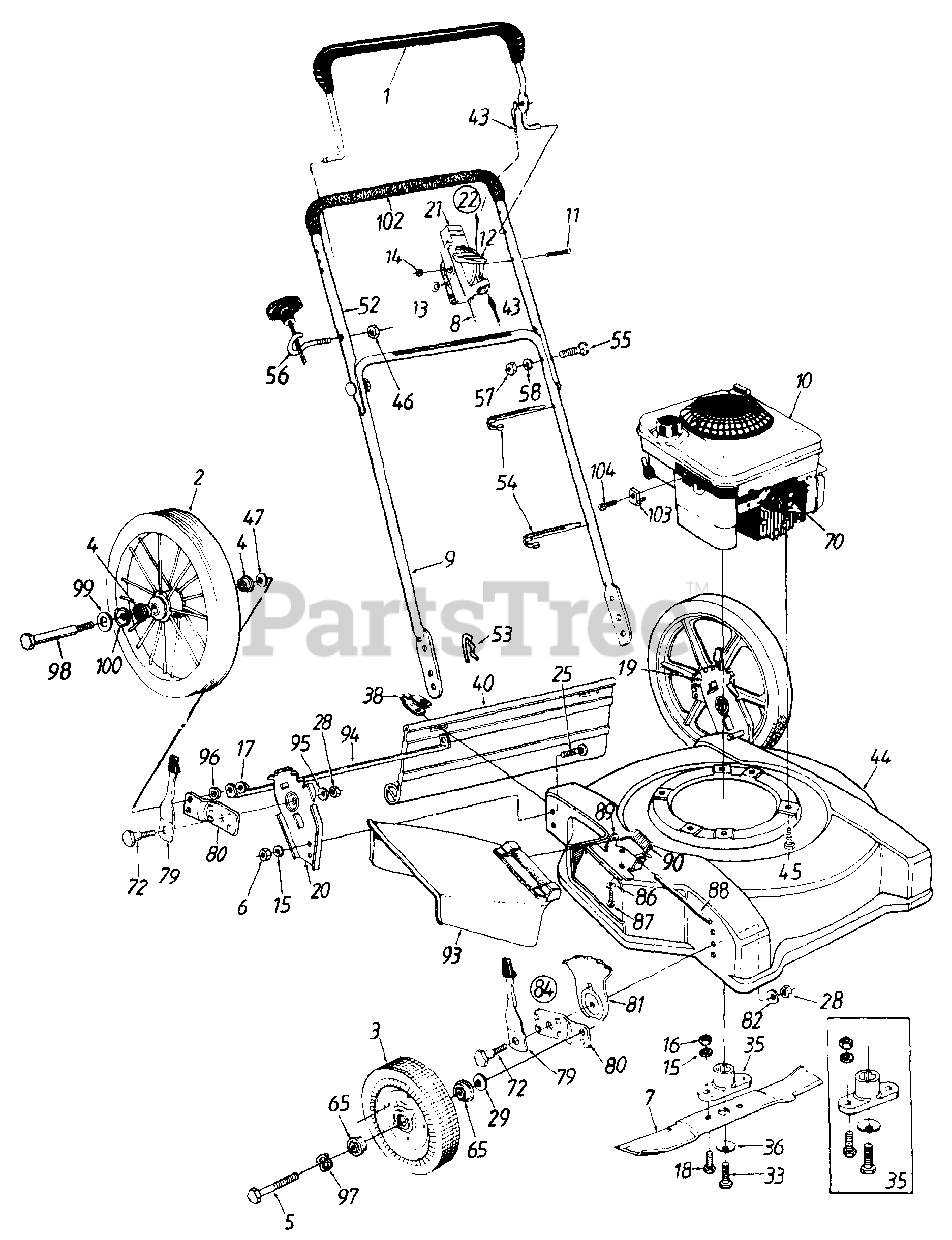

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

Note: Code: N notates a new part (not previously existing).

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 734-1661

16" Rear Wheel Ass'y. (Steel)

$

$

Not available

3

734-7268

8" Front Wheel Ass'y. (Steel)

$

$

Not available

4

White Outdoor 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

5

White Outdoor 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

6

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

7

White Outdoor 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

8

White Outdoor 746-0842

Throttle Control Wire 51" Lg.
(Superseded to 946-0671A)

Note: Code: N notates a new part (not previously existing).

$14.99

$

Usually ships in 3-6 days

0

9

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

10

Engine

$

$

Not available

11

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, only 3 left!

0

12

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: Code: N notates a new part (not previously existing).

$8.49

$

In Stock, only 2 left!

0

13

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

Note: Code: N notates a new part (not previously existing).

$6.99

$

Usually ships in 3-6 days

0

14

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

15

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

17

White Outdoor 712-0431

Flange L-Nut 3/8-18 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

19

White Outdoor 682-3003

Wheel Brkt. Ass'y. - L.H.

$

$

Not available

20

White Outdoor 682-3002

Wheel Brkt. Ass'y. - R.H.

$

$

Not available

21

White Outdoor 746-0875

Throttle Body
(Superseded to 946-0875)

Note: Code: N notates a new part (not previously existing).

$9.49

$

In Stock, only 4 left!

0

22

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Code: N notates a new part (not previously existing). (Incl. Ref. 11, 12, 13, 14, 21)

$36.99

$

In Stock, only 1 left!

0

25

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .80"

$

$

Not available

28

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

29

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

35

White Outdoor 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

38

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

White Outdoor 731-1026

Rear Flap Ass'y.

$

$

Not available

43

White Outdoor 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

44

682-0220

22" Deck Ass'y.

Note: Code 629

$

$

Not available

45

White Outdoor 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

46

White Outdoor 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

47

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

53

White Outdoor 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

55

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

56

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

57

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

58

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

65

White Outdoor 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

70

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

72

White Outdoor 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, only 4 left!

0

79

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

80

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

81

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

82

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

84

White Outdoor 14578

Front Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Front Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not shown)

$65.99

$

In Stock, Qty 7

0

86

White Outdoor 736-0270

Bell-Wash. .285" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

87

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

88

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

93

White Outdoor 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

94

White Outdoor 749-0860

Stabilizer Tube

Variations

White Outdoor 749-0860-0637

STABILIZER-HI WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

95

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

96

White Outdoor 750-0796

Spacer .503" I.D. x .75"

$

$

Not available

97

White Outdoor 736-0232

Wave Washer .53" I.D.

$4.99

$

In Stock, Qty 12

0

98

White Outdoor 738-0822

Rear Axle Bolt
(Superseded to 938-0822)

$10.99

$

Usually ships in 3-6 days

0

99

White Outdoor 736-0456

Fl-Wash. .51" I.D. x 1.372"
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

100

White Outdoor 736-0182

Spr. Wash. .5" I.D. x 1.0"

$4.49

$

In Stock, Qty 7

0

102

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

103

White Outdoor 751-0568

Casing Clamp
(Superseded to BS-690798)

Note: Code: N notates a new part (not previously existing).

$5.49

$

In Stock, only 1 left!

0

104

White Outdoor 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

Note: Code: N notates a new part (not previously existing).

$4.49

$

Usually ships in 3-6 days

0

?106

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .50"

$4.49

$

In Stock, Qty 15

0

White Outdoor 731-0355A

Front Hub Cap

Note: (Not shown)

$

$

Not available
