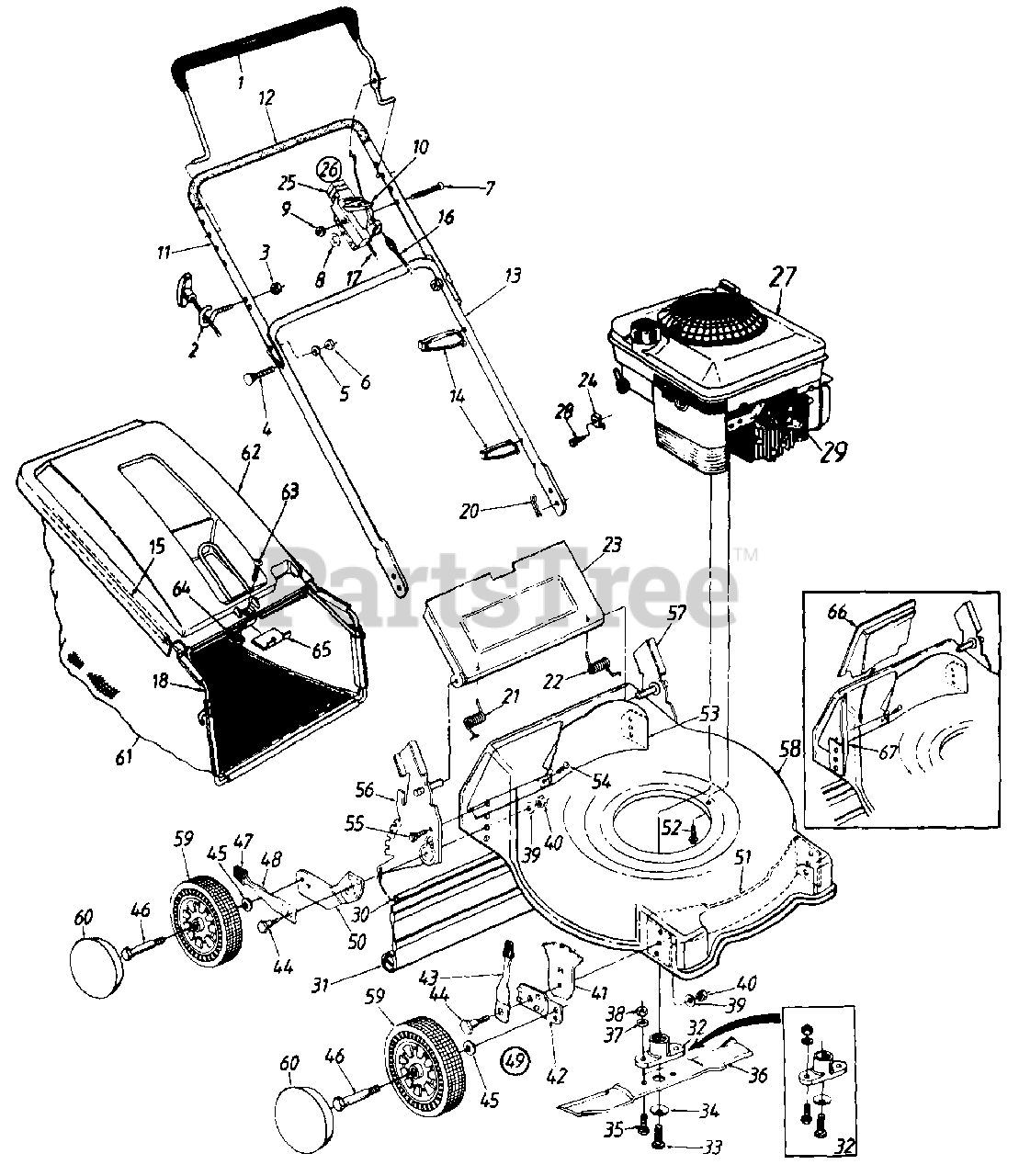

112-428R190 - White Outdoor 21" Walk-Behind Mower (1992) Rotary Mower Parts Diagram

21" Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: Code: N notates a new part (not previously existing).

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

3

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

4

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

7

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, only 3 left!

0

8

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

Note: Code: N notates a new part (not previously existing).

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

10

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: Code: N notates a new part (not previously existing).

$8.49

$

In Stock, only 2 left!

0

11

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

13

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

White Outdoor 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

White Outdoor 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

White Outdoor 746-0553

Control Cable - 36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

17

White Outdoor 746-0843

Throttle Control Wire - 55"
(Superseded to 946-0671A)

Note: Code: N notates a new part (not previously existing).

$14.99

$

Usually ships in 3-6 days

0

18

White Outdoor 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

White Outdoor 764-0311-0637

FRONT CATCHER FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

White Outdoor 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

White Outdoor 782-7000

Rear Discharge Door

Variations

White Outdoor 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

White Outdoor 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-7000-0674

No Longer Available DOOR-REAR DISCHARG - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

White Outdoor 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

25

White Outdoor 746-0875

Throttle Body
(Superseded to 946-0875)

Note: Code: N notates a new part (not previously existing).

$9.49

$

In Stock, only 4 left!

0

26

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Code: N notates a new part (not previously existing). (Incl. Ref. 7, 8, 9, 10, 25)

$36.99

$

In Stock, only 1 left!

0

27

Engine

$

$

Not available

28

White Outdoor 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

30

White Outdoor 732-0700

Wire Rod
(Superseded to 732P0700)

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, only 4 left!

0

31

White Outdoor 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

32

White Outdoor 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

33

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

34

White Outdoor 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

35

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

36

White Outdoor 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 742-0563

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

37

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

41

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

White Outdoor 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

White Outdoor 732-0417A

Spring Lever

$

$

Not available

49

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not shown)

$65.99

$

In Stock, Qty 7

0

50

White Outdoor 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

51

White Outdoor 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

White Outdoor 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 710-0654

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

53

White Outdoor 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

White Outdoor 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

55

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

56

White Outdoor 682-0503

Handle Brkt. Ass'y. - R.H.
(Superseded to 682-0516-0637)

$

$

Not available

57

White Outdoor 682-0502

Handle Brkt. Ass'y. - L.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

White Outdoor 782-0310

21" R.D. Deck

Variations

White Outdoor 782-0310-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-0310-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 782-0310-0499

No Longer Available DECK ASSEMBLY-21IN - CUB BEIGE (0499)

$

$

Not available

White Outdoor 782-0310-0629

No Longer Available DECK ASSEMB - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 782-0310-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0310-0648

No Longer Available DECK ASSEMBLY-21IN - TECH GRAY (0648)

$

$

Not available

White Outdoor 782-0310-0662

No Longer Available DECK ASSEMBLY-21IN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-0310-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0310-0671

No Longer Available DECK ASSEMBLY-21IN - BEAVER GREEN (0671)

$

$

Not available

White Outdoor 782-0310-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

59

White Outdoor 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

White Outdoor 741-0180

Wheel Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

60

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

61

White Outdoor 764-0433

Grass Bag
(Superseded to 964-0433)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

62

White Outdoor 731-1322

Hard Top Cover
(Superseded to 731-1876)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

63

White Outdoor 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

64

White Outdoor 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

65

White Outdoor 782-9011

Mounting Bracket
(Superseded to 782-9011-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 782-9011-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

66

White Outdoor 782-5007

Mulching Baffle Plug
(Superseded to 782-5007C)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

67

White Outdoor 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 782-5004-0637

MULCHING BAFFLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

White Outdoor 782-5004-0638

MULCHING BAFFLE - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0
