112 (117-112-100) - Cub Cadet Walk-Behind Mower Engine (1987) Max 3.5 HP-90702-3044-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

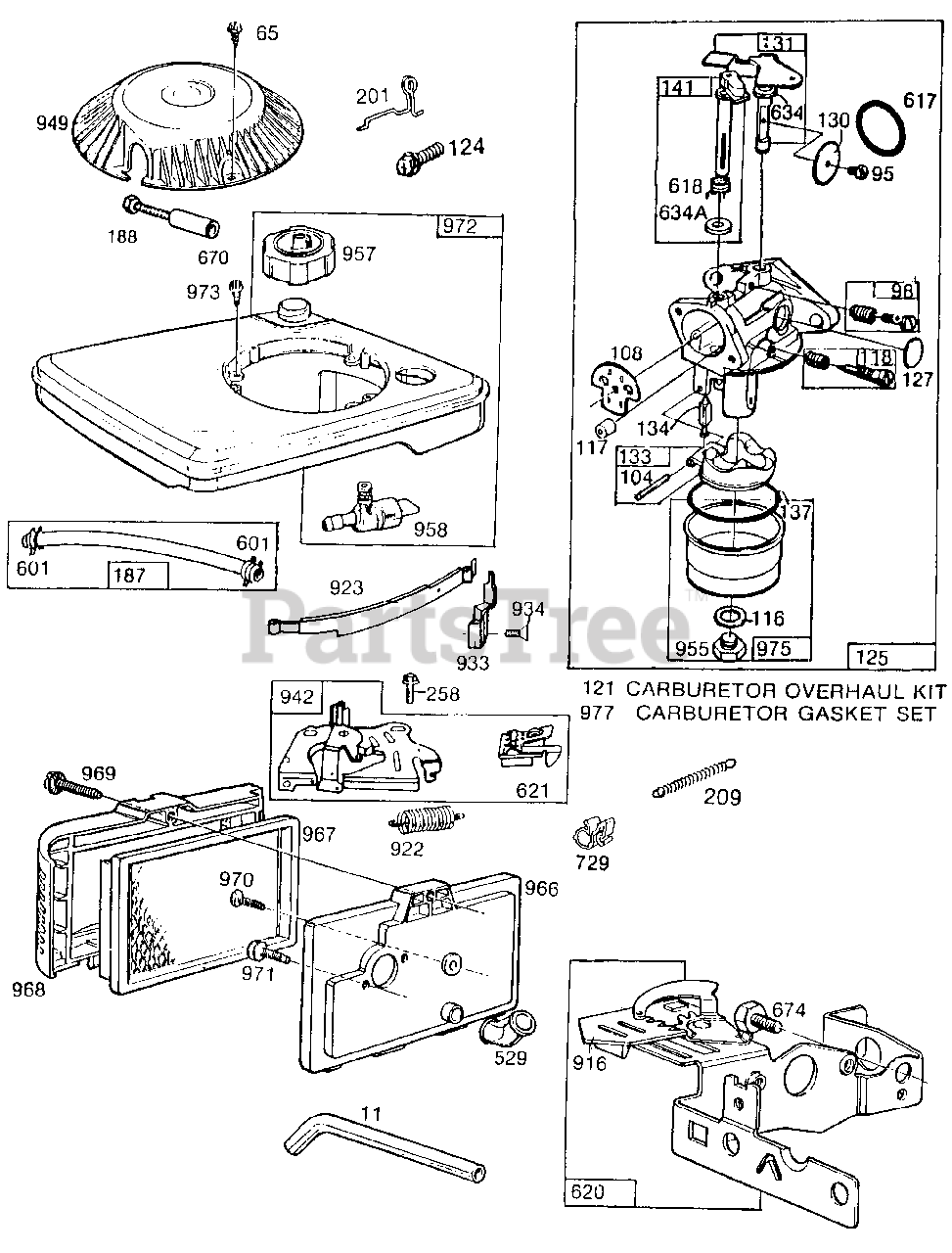

Max 3.5 HP-90702-3044-01 Part 2 Parts Diagram

  • Title

11

Cub Cadet BS-231406

Tube-Breather

$

$

Currently unavailable

65

Cub Cadet BS-94058

Screw-Guard Mounting

$3.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-94098

Screw-Throttle Valve Mounting Sem
(Superseded to BS-691636)

$3.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-398185

Screw-Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.99

$

In Stock, Qty 10

0

108

Cub Cadet BS-223471

Valve-Choke
(Superseded to BS-691182)

$9.49

$

Usually ships in 2-12 days

0

116

Gasket-Sealing (Available in Set Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

117

Jet (Available in Set Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

118

Cub Cadet BS-398670

Valve and Spring-Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

121

Cub Cadet BS-398669

Carburetor Overhual Kit
(Superseded to BS-494349)

$20.99

$

In Stock, only 1 left!

0

124

Cub Cadet BS-94119

Screw-Carburetor Mounting

$

$

Currently unavailable

125

Cub Cadet BS-398667

Carburetor Assembly

$

$

Not available

127

Plug-Welch (Available in Set Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

130

Cub Cadet BS-223470

Valve-Throttle

$

$

Not available

131

Cub Cadet BS-398184

Shaft and Lever-Throttle

$

$

Not available

133

Cub Cadet BS-398187

Float Assembly-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Cub Cadet BS-398188

Valve-Inlet (Includes Seat)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Set Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

141

Cub Cadet BS-398186

Shaft-Choke

$10.99

$

In Stock, only 1 left!

0

187

Cub Cadet BS-390674

Hose-Fuel
(Superseded to 759-3330)

$63.99

$

In Stock, only 2 left!

0

188

Cub Cadet BS-398540

Screw-Fuel Tank Mounting (Includes Washer)
(Superseded to BS-692311)

$7.49

$

In Stock, only 1 left!

0

201

Cub Cadet BS-262043

Link-Governor

$

$

Currently unavailable

209

Cub Cadet BS-261105

Spring-Governor

$7.99

$

Usually ships in 2-12 days

0

258

Cub Cadet BS-94018

Screw-Hex Head
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

529

Cub Cadet BS-280524

Grommet-Breather

$8.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-93053

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-262035

Spring-Choke Return

$6.49

$

Usually ships in 2-12 days

0

620

Cub Cadet BS-398363

Plate-Carburetor Control

$

$

Currently unavailable

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

634

Washer-Throttle Shaft (Available in Set Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

634A

Seal-Choke Shaft (Available in Set Only)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

670

Cub Cadet BS-280512

Spacer-Fuel Tank
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 5

0

674

Cub Cadet BS-94117

Screw-Tank to Bracket

$

$

Not available

729

Cub Cadet BS-280470

Clip-Wire

$

$

Not available

916

Cub Cadet BS-280522

Rack-Gear

$8.49

$

Usually ships in 2-12 days

0

922

Cub Cadet BS-261647

Spring-Band Brake

$

$

Not available

923

Cub Cadet BS-394867

Brake Assembly-Band

$39.99

$

Usually ships in 2-12 days

0

933

Cub Cadet BS-223448

Pivot-Band Brake

$

$

Currently unavailable

934

Cub Cadet BS-94037

Screw-Band Brake Pivot

$

$

Currently unavailable

942

Cub Cadet BS-397668

Control Plate-Band Brake

$

$

Currently unavailable

949

Cub Cadet BS-280502

Cover-Static-Gard (Rewind)

$30.99

$

Usually ships in 2-12 days

0

955

Cub Cadet BS-231373

Screw-Bowl Mounting

$

$

Currently unavailable

957

Cub Cadet BS-397974

Cap Assembly-Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

958

Cub Cadet BS-396244

Valve-Fuel Shut Off
(Superseded to BS-698182)

$

$

Not available

966

Cub Cadet BS-397797

Base-Air Cleaner

$

$

Not available

967

Cub Cadet BS-397795

Filter-Air

$

$

Not available

968

Cub Cadet BS-280501

Cover-Air Cleaner

$23.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-94120

Screw-Cover Mounting
(Superseded to BS-690670)

$5.99

$

In Stock, only 4 left!

0

970

Cub Cadet BS-94118

Screw-Hex. Hd.

$

$

Not available

971

Cub Cadet BS-94121

Screw-Air Cleaner
(Superseded to BS-692523)

$7.49

$

In Stock, only 2 left!

0

972

Cub Cadet BS-398008

Tank Assembly-Fuel

$

$

Not available

973

Cub Cadet BS-94114

Screw-Hex. Hd.

$3.99

$

In Stock, only 3 left!

0

975

Cub Cadet BS-398191

Bowl Assembly-Carburetor

$

$

Not available

977

Cub Cadet BS-398183

Gasket Set-Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0
