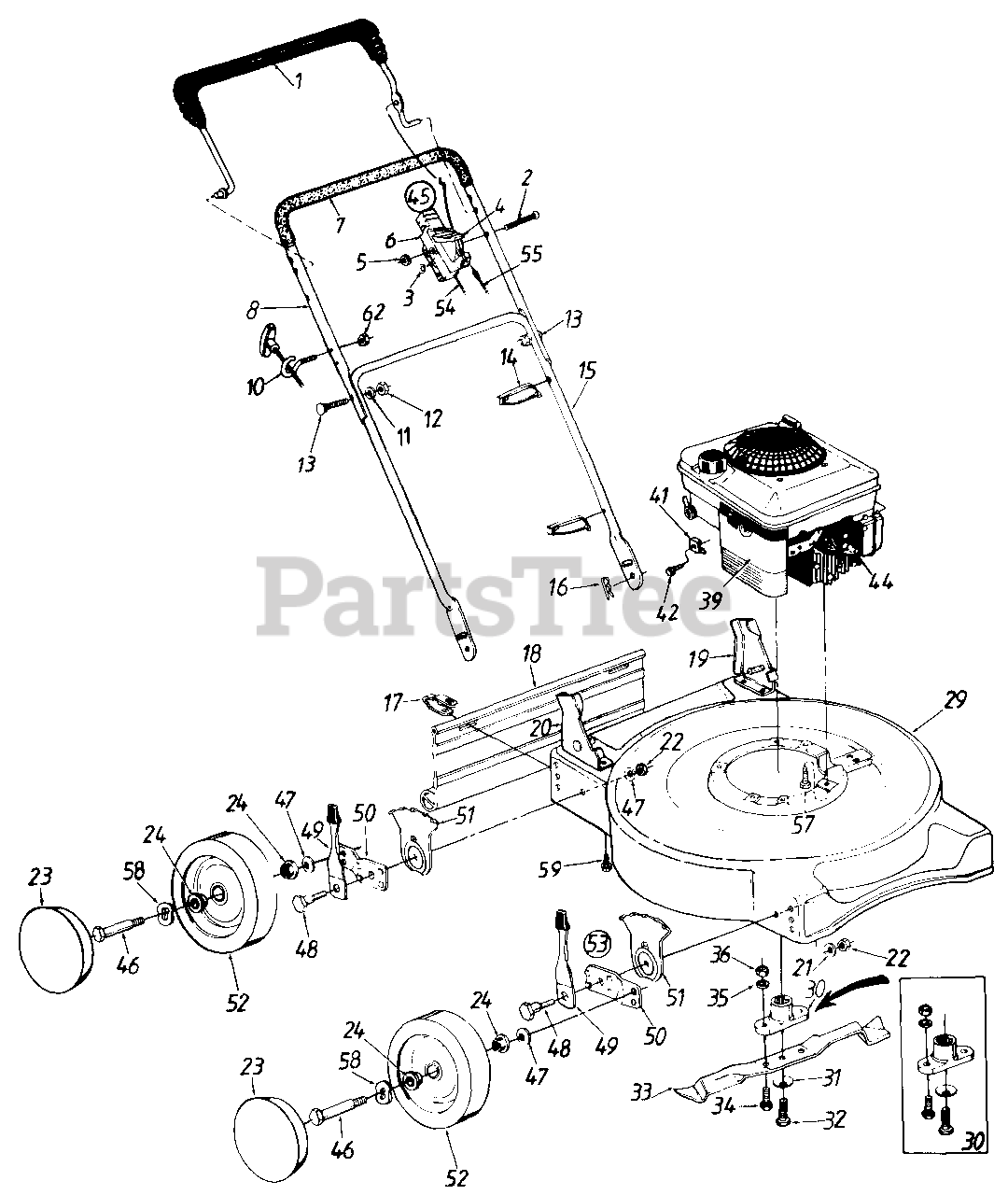

112-098R190 - White Outdoor 20" Walk-Behind Mower (1992) Rotary Mower Parts Diagram

20" Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: Code: N notates a new part (not previously existing).

$65.99

$

In Stock, only 1 left!

0

2

White Outdoor 710-0605

Oval C-Sunk Scr.

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, only 2 left!

0

3

White Outdoor 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

Note: Code: N notates a new part (not previously existing).

$6.99

$

Usually ships in 3-6 days

0

4

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: Code: N notates a new part (not previously existing).

$8.49

$

In Stock, only 3 left!

0

5

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

6

White Outdoor 746-0875

Throttle Body
(Superseded to 946-0875)

Note: Code: N notates a new part (not previously existing).

$9.49

$

In Stock, only 3 left!

0

7

White Outdoor 720-0226

Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

8

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

White Outdoor 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

White Outdoor 12935A

Handle Bracket Ass'y. - L.H.

$

$

Not available

20

White Outdoor 12936A

Handle Bracket Ass'y. - R.H.

$

$

Not available

21

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

23

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

24

White Outdoor 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

29

682-0002

20" Deck Ass'y.

Note: Code 629

$

$

Not available

30

White Outdoor 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 753-0485

Blade Adapter Kit (Splined)

$46.99

$

Usually ships in 3-6 days

0

31

White Outdoor 736-0452

Bell-Wash. .39" I.D. (Keyed)

$4.99

$

In Stock, Qty 5

0

White Outdoor 736-0453

Bell-Wash. .46" I.D. (Splined)
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

32

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg. (Keyed)

$9.99

$

In Stock, only 1 left!

0

White Outdoor 710-1044

Hex Bolt 3/4-20 x 1.5" Lg. (Splined)

$3.99

$

In Stock, only 1 left!

0

33

White Outdoor 742-0500

20" Mulching Blade
(Superseded to 942-0720)

$31.99

$

In Stock, only 1 left!

0

34

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

Engine

$

$

Not available

41

White Outdoor 751-0568

Cable Clamp
(Superseded to BS-690798)

Note: Code: N notates a new part (not previously existing).

$5.49

$

In Stock, only 1 left!

0

42

White Outdoor 710-1237

Hex Self-Tap Scr. #10-32 x .62"

Note: Code: N notates a new part (not previously existing).

$4.49

$

Usually ships in 3-6 days

0

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

45

White Outdoor 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: Code: N notates a new part (not previously existing). (Incl. Ref. 2, 3, 4, 5, 6)

$36.99

$

In Stock, only 1 left!

0

46

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

?53

White Outdoor 14578

Height Adj. Ass'y. Comp. - R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp. - L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

White Outdoor 746-0842

Throttle Cable - 51"
(Superseded to 946-0671A)

Note: Code: N notates a new part (not previously existing).

$14.99

$

Usually ships in 3-6 days

0

55

White Outdoor 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

57

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

58

White Outdoor 736-0232

Wave Washer .53" I.D.

$4.99

$

In Stock, Qty 12

0

59

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

62

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thr.

$3.99

$

In Stock, Qty 16

0

777-0215

"WHITE" Mulcher Label

$

$

Not available

777-9303

Engine Label

$

$

Not available

777-9191

Danger Label

$

$

Not available

777-6808

Hub Cap Labels

$

$

Not available
