112-050R352 - MTD Walk-Behind Mower (1992) (Walmart) Handle And Wheel Assembly Parts Diagram

Walk-Behind Mower

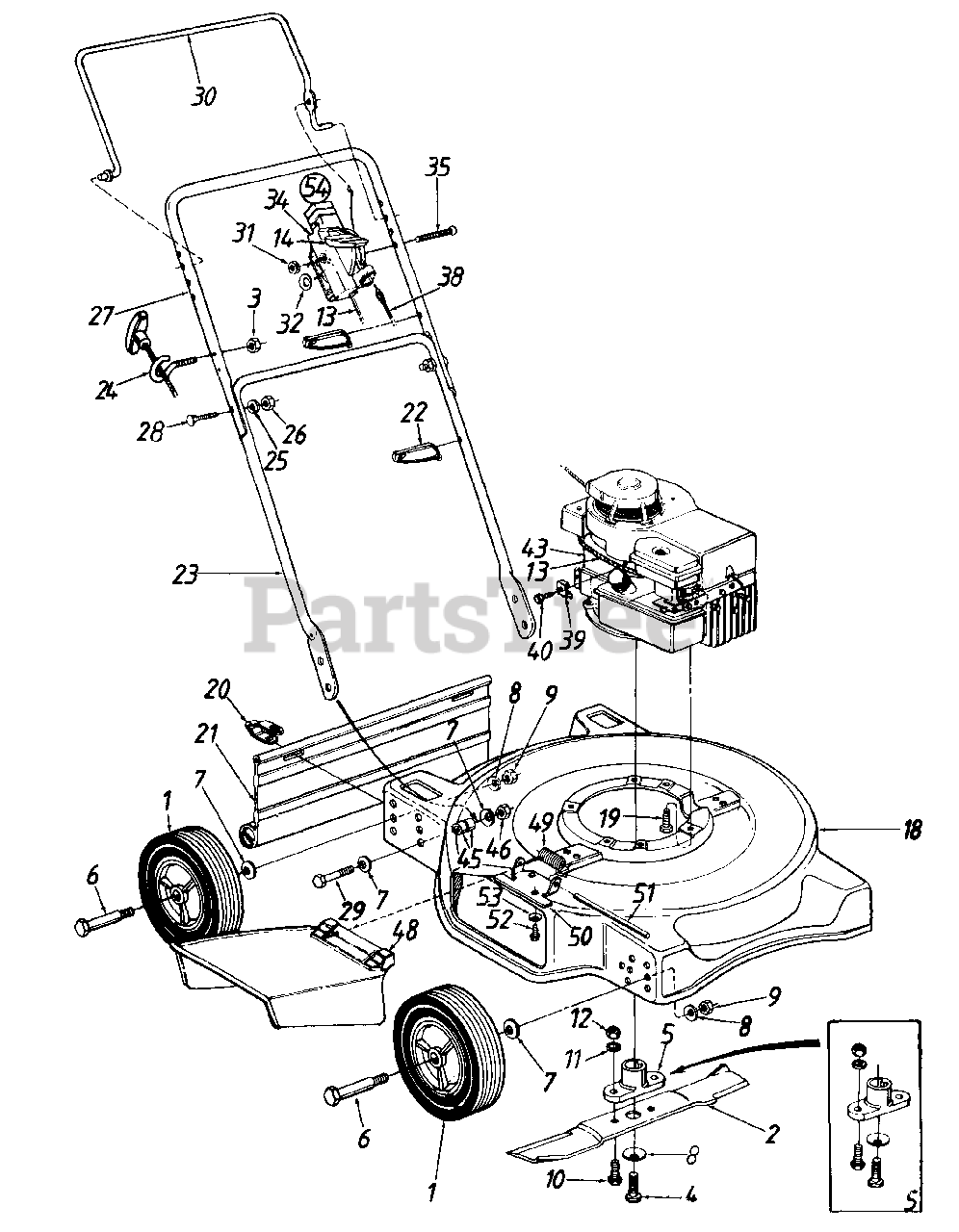

Handle And Wheel Assembly Parts Diagram

  • Title

1

MTD 734-1170

Wheel Ass'y. Comp. Rib Tread Plastic Rim (7")

Note: Use Axle Bolt P/N 738-0533, w/o Bearings

$

$

Not available

MTD 734-1169

Wheel Ass'y. Comp. Rib Tread Plastic Rim (8")
(Superseded to 734-04585)

Note: Use Axle Bolt P/N 738-0533, w/o Bearings

$20.99

$

In Stock, only 1 left!

0

MTD 734-1161A

Wheel Ass'y. Comp. Waffle Tread Plastic Rim (7")

Note: Use Axle Bolt P/N 738-0213, w/o Bearings

$

$

Not available

MTD 634-1162A

Wheel Ass'y. Comp. Waffle Tread Plastic Rim (8")

Note: Use Axle Bolt P/N 738-0213, w/o Bearings

$

$

Currently unavailable

MTD 734-1609

Wheel Ass'y. Comp. Bar Tread Plastic Rim (7")

Note: Use Axle Bolt P/N 738-0213, w/o Bearings

$

$

Not available

MTD 734-1608

Wheel Ass'y. Comp. Bar Tread Plastic Rim (8")
(Superseded to 734-1781)

Note: Use Axle Bolt P/N 738-0213, w/o Bearings

$32.99

$

In Stock, Qty 7

0

MTD 734-0893

Wheel Ass'y. Comp. Waffle Tread Steel Rim (7")

Note: Use Axle Bolt P/N 738-0213, w/Bearings. Use Plastic P/N 741-0262 (2 per Wheel)

$

$

Not available

MTD 734-0812

Wheel Ass'y. Comp. Waffle Tread Tread Steel Rim (8")

Note: Use Axle Bolt P/N 738-0213, w/Bearings. Use Ball Brg. P/N 741-0180 (2 per Wheel)

$

$

Not available

MTD 734-0922

Wheel Ass'y. Comp. Waffle Tread Tread Steel Rim (7")

Note: Use Axle Bolt P/N 738-0213, w/Bearings. Use Ball Brg. P/N 741-0267 (2 per Wheel) & Spacer P/N 750-0434

$

$

Not available

MTD 734-0924

Wheel Ass'y. Comp. Waffle Tread Steel Rim (8")

Note: Use Axle Bolt P/N 738-0213, w/Bearings. Use Ball Brg. P/N 741-0267 & 741-0484 (2 per Wheel) & Spacer P/N 750-0434

$

$

Not available

MTD 734-0637

Wheel Ass'y. Comp. Waffle Tread Steel Rim (7")

Note: Use Axle Bolt P/N 710-1020, w/Bearings. Use Ball Brg. P/N 741-0180

$

$

Currently unavailable

MTD 734-0645

Wheel Ass'y. Comp. Waffle Tread Steel Rim (8")

Note: Use Axle Bolt P/N 710-1020, w/Bearings. Use Ball Brg. P/N 741-0180 & P/N Spacer. 750-0434

$

$

Not available

2

MTD 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

3

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

4

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

Usually ships in 3-6 days

0

5

MTD 753-0484

Blade Adapter Kit

Note: (Keyed)

$23.99

$

In Stock, only 1 left!

0

6

MTD 738-0533

Axle Bolt

$7.99

$

Usually ships in 3-6 days

0

MTD 738-0213

Axle Bolt

$7.99

$

In Stock, only 2 left!

0

MTD 710-1020

Axle Bolt

$

$

Not available

7

MTD 736-0105

Bell-Wash..380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0331

Bell-Wash..39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0798

Hex Nut 3/8-16 Thd.

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 12

0

10

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

11

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

13

MTD 746-0842

Throttle Wire 51" Lg.
(Superseded to 946-0671A)

Note: New Part

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0844

Throttle Wire 39" Lg. (Tec.)

Note: New Part

$

$

Not available

14

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: New Part

$8.49

$

In Stock, only 3 left!

0

18

MTD 17038

20" Deck Ass'y.

$

$

Currently unavailable

MTD 17043

22" Deck Ass'y.

Note: Code 638

$

$

Currently unavailable

19

MTD 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.

Note: Code 638

$4.49

$

In Stock, only 3 left!

0

20

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

21

MTD 731-0872

Rear Flap 16.75" Lg.
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

22

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

23

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

24

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally order by part number and size as shown on parts list.

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

Note: For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally order by part number and size as shown on parts list.

$4.49

$

In Stock, Qty 20+

0

27

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Note: New Part

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

29

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

30

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Note: New Part

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

31

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

32

MTD 736-0501

Spr. Wash..66" I.D.
(Superseded to 936-0501)

Note: New Part

$6.99

$

Usually ships in 3-6 days

0

34

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

Note: New Part

$9.49

$

In Stock, only 3 left!

0

35

MTD 710-0605

Oval C-Sunk Scr.

Note: New Part

$4.49

$

In Stock, only 2 left!

0

38

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

Note: (B&S)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0552

Control Cable - 49" (Tec.)
(Superseded to 946-0552)

$41.99

$

Usually ships in 3-6 days

0

39

MTD 751-0568

Casing Clamp (B&S)
(Superseded to BS-690798)

Note: New Part

$5.49

$

In Stock, only 1 left!

0

40

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

Note: New Part

$4.49

$

Usually ships in 3-6 days

0

43

Engine

$

$

Not available

45

MTD 750-0910

Spacer .391" I.D. x .375" Lg.
(Superseded to 950-0910)

Note: New Part

$

$

Not available

46

MTD 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

48

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

49

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

50

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

51

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

52

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

54

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 14, 31, 32, 34, 35)

$36.99

$

In Stock, only 1 left!

0
