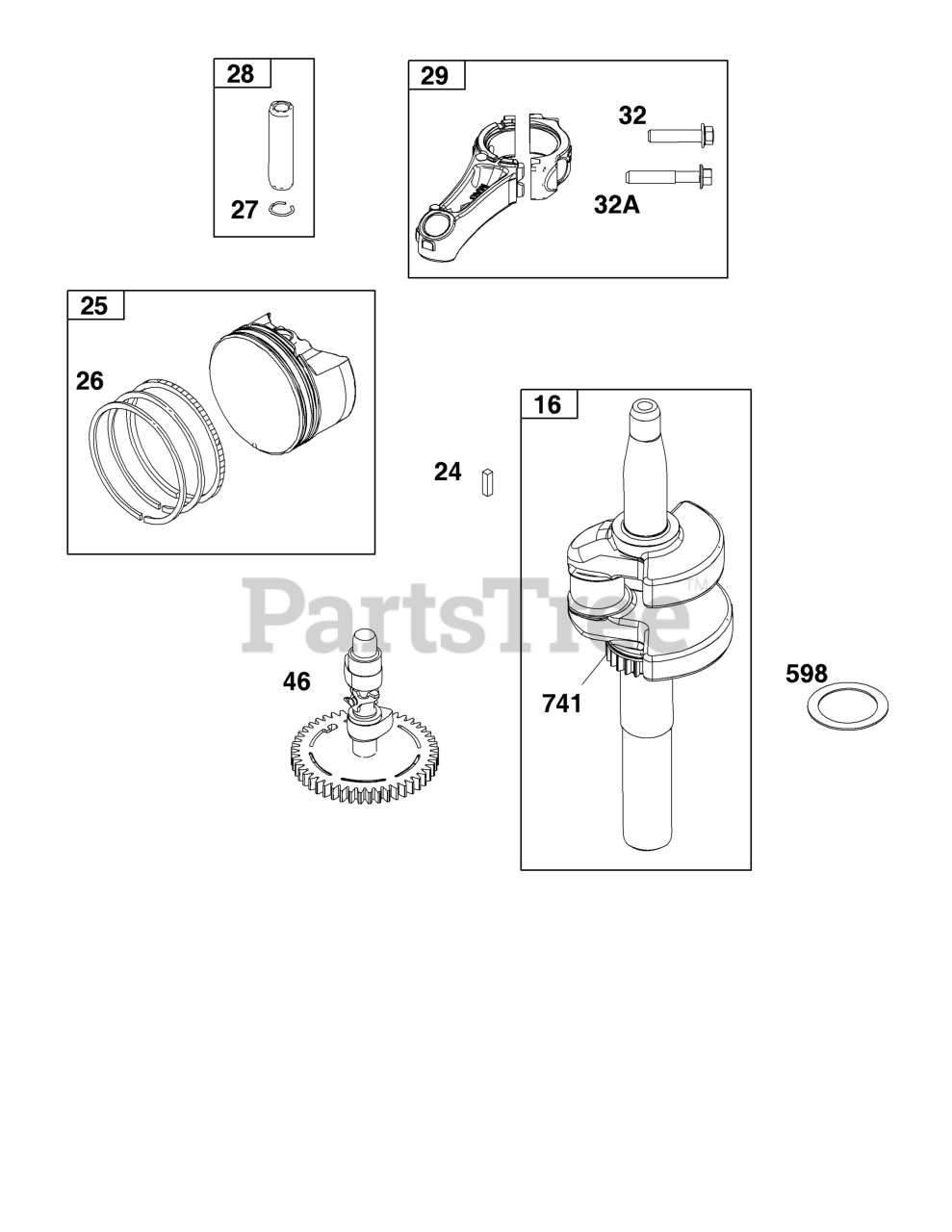

111P02-0018-F1 - Briggs & Stratton Vertical Engine Crankshaft Group Parts Diagram

Vertical Engine

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 799337

Crankshaft

$229.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 796643

Piston Assembly
(Superseded to 84003122)

$87.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 796644

Piston Assembly

Note: (.020 Oversize)

$71.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 796645

Ring Set

$

$

Not available

26

Briggs & Stratton 796646

Ring Set

Note: (.020 Oversize)

$

$

Not available

27

Briggs & Stratton 691588

Lock-Piston Pin

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 796470

Rod-Connecting

$43.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 1 left!

0

32A

Briggs & Stratton 695759

Screw (Connecting Rod)

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 694039

Camshaft

$65.99

$

Usually ships in 2-12 days

0

598

Briggs & Stratton 592587

Shims-End Play Kit

Note: (Crankshaft or Camshaft Bearing)

$5.49

$

In Stock, only 1 left!

0

741

Briggs & Stratton 797521

Gear-Timing

$13.99

$

In Stock, only 3 left!

0
