111902-0151-XX - Briggs & Stratton Vertical Engine Cyl,Sumps, Piston, Mufflers Parts Diagram

Vertical Engine

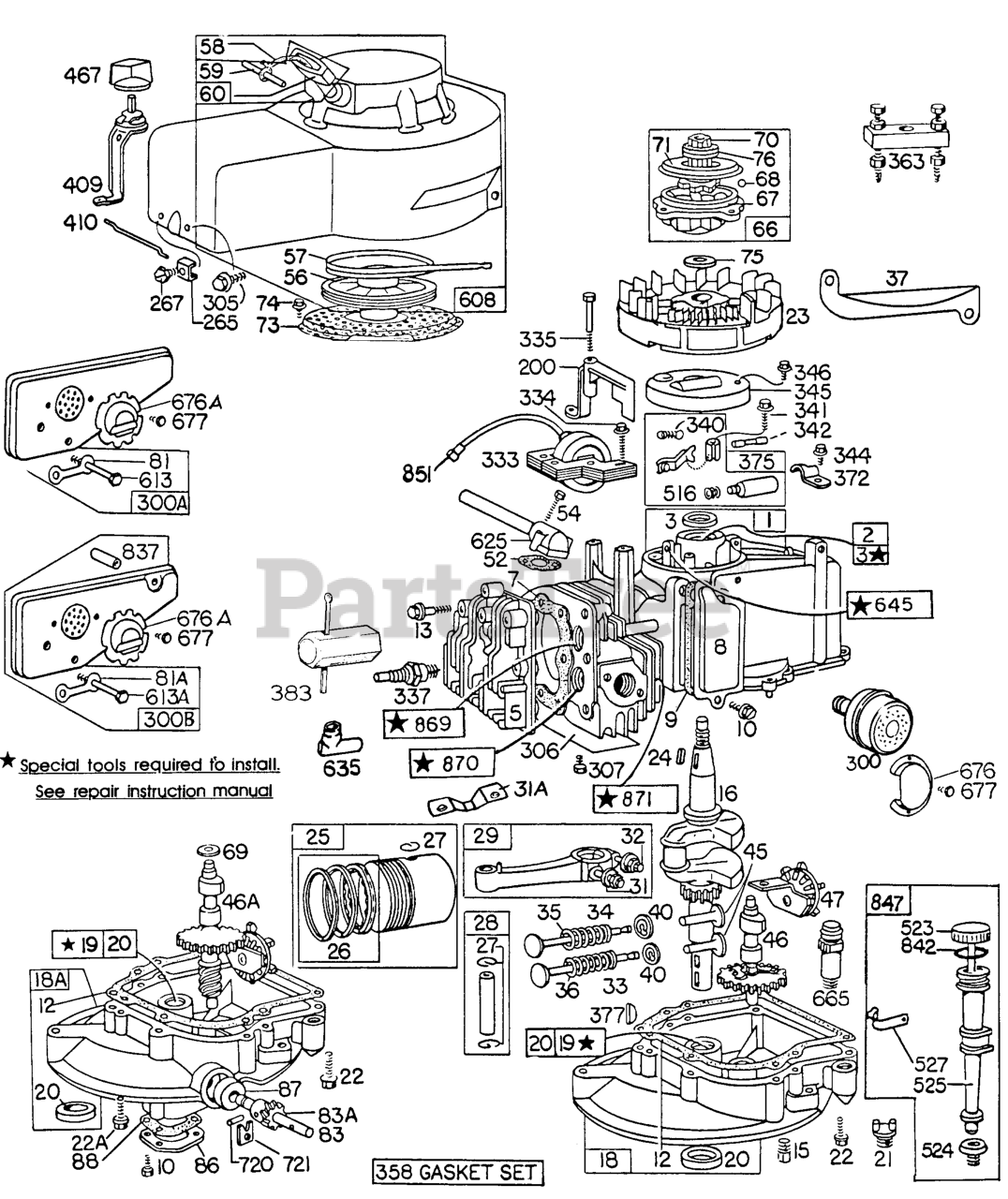

Cyl,Sumps, Piston, Mufflers Parts Diagram

  • Title

1

Briggs & Stratton 391639

Cylinder Assembly
(Superseded to 395998)

$223.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

Note: Requires Special tools for Installation.

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 211851

Head-Cylinder
(Superseded to 5021185X1)

$

$

Not available

7

Briggs & Stratton 270836

Gasket-Cylinder Head
(Superseded to 272171)

Note: Included in Gasket Set-Part No. 391662

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 298383

Breather-Vlv. Chamber
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 270239

Gasket-Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 391662

$4.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket, Crankcase (.015")
(Superseded to 692218)

$

$

Not available

12

Briggs & Stratton 270895

Gasket-Crkcse (.005")

$9.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 270896

Gasket-Crkcse (.009")

$5.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 93111

Screw, Machine Hex (15/16" Long)
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 93418

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 261324

Crankshaft

$136.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 391644

Sump-Oil
(Superseded to 394157)

$116.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293709

Bushing/Seal Kit (Plain)

Note: Requires Special tools for Installation.

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal-Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 391485

Seal-Oil (Crankshaft-p.t.o Side)

$9.99

$

In Stock, Qty 5

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22A

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

Note: Use 93032 Screw in the other (5) Sump Mounting Holes.

$8.49

$

In Stock, only 1 left!

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 296884

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 61760

Key, Flywheel (For Breaker Ignition System)
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 391650

Piston Assy-Std

$63.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391651

Piston-Assy. .010" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391652

Piston-Assy. .020" O.S.

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 391653

Piston-Assy. .030" O.S.

$110.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391654

Ring Set-Std

$

$

Not available

26

Briggs & Stratton 391656

Ring Set-010

$22.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391658

Ring Set-020

$18.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391660

Ring Set-030

$27.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 392330

For Chrome Piston Ring Set Standard Size

$

$

Not available

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 391649

Pin Assembly-Piston Standard

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 394861

Pin Assembly-Piston .005" O.S.

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 391640

Rod Assy.-Connecting
(Superseded to 490566)

Note: For Connecting Rod with .020" undersize Crankpin Bearing-Order No. 393710

$39.99

$

Usually ships in 2-12 days

0

31A

Briggs & Stratton 222390

Lock-Connecting Rod Screw
(Superseded to 222282)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222282

Washer

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93670

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 212004

Valve-Exhaust

$31.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261233

Valve-Intake

$

$

Not available

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

37

Briggs & Stratton 222590

Guard-Flywheel

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 261250

Tappet-Valve

$8.49

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 392694

Cam Gear, Worm And Oil Slinger Assy.
(Superseded to 395904)

$69.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 394845

Gear-Cam
(Superseded to 395856)

$69.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 294652

Oil Slinger Gear And Bracket
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270844

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 391662

$13.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93485

Screw-Hex
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 280117

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 11

0

57

Briggs & Stratton 294303

Spring-Rewind Starter
(Superseded to 490179)

$

$

Not available

58

Briggs & Stratton 66694

Rope-Starter (47-1/8" Long)
(Superseded to 66734)

Note: If longer rope is needed, order No. 66684 and cut to required length.

$6.49

$

In Stock, Qty 11

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 298310

Clutch Assy.-Rewind Starter
(Superseded to 399671)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 212131

Housing-Str. Clutch
(Superseded to 394897)

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

69

Briggs & Stratton 66874

Washer-Thrust (11/16" O.d. X 15/32" I.d.)

$3.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298436

Ratchet-Str. Clutch
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

81A

Briggs & Stratton 222237

Lock-Muffler Screw

$2.49

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 222526

Lock-Muffler Screw

$

$

Not available

83A

Briggs & Stratton 230856

Gear-Drive
(Superseded to 690516)

$40.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 230831

Shaft-Drive
(Superseded to 691240)

$9.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 221780

Cover-Sump
(Superseded to 690398)

$3.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 391484

Seal, Auxiliary PTO (For 1/2"Auxiliary Drive Shaft)
(Superseded to 691952)

$9.99

$

In Stock, Qty 11

0

88

Briggs & Stratton 270328

Gasket-Sump Cover
(Superseded to 691868)

$4.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 68388

Blade-Governor

$26.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw, Hex Head Thr
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

300A

Briggs & Stratton 394644

Muffler-Exhaust
(Superseded to 692307)

$36.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 391492

Muffler Grp (Includes No. 270774 Mounting Gasket)
(Superseded to 692307)

$36.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 394569

Muffler Assy (Lo-Tone)
(Superseded to 394569S)

$10.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 222394

Shield-Cylinder
(Superseded to 223263)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 298502

Armature-Mag (For Points And Condenser)
(Superseded to 591420)

$53.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93435

Screw-Shoulder
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

340

Briggs & Stratton 26018

Spring-Breaker Arm

$7.49

$

In Stock, only 1 left!

0

341

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

342

Briggs & Stratton 65704

Plunger-Breather Point
(Superseded to 65704S)

$6.49

$

In Stock, Qty 10

0

344

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

345

Briggs & Stratton 220366

Cover-Breather Point And Condenser

$11.99

$

In Stock, only 2 left!

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

358

Briggs & Stratton 391662

Gasket-Set

$40.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

372

Briggs & Stratton 220477

Clamp-Condensor

$1.49

$

Usually ships in 2-12 days

0

375

Briggs & Stratton 294628

Breaker Points And Condensor Set

$

$

Not available

375

Briggs & Stratton 299061

Ignition Kit
(Superseded to 294628)

Note: Includes: 294628 Point Set 65704 Plunger 61760 Key-Flywheel

$

$

Not available

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

409

Briggs & Stratton 391590

Control-Dial

$9.99

$

Usually ships in 2-12 days

0

410

Briggs & Stratton 260993

Link-Control

$2.49

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 299858

Knob-Dial Control

$17.99

$

Usually ships in 2-12 days

0

516

Briggs & Stratton 260374

Condenser Spring

$7.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 391838

Cap With Dipstick-Oil Filler
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280131

Tube-Oil Filler

$12.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 222549

Clamp-Oil Filler Tube

$10.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 392597

Starter Assy.-Rewind (10 O'clock)

$68.99

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 93549

Screw-Hex (1/4-20 Hex Head)

$6.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 93935

Screw, Shoulder Muf
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 391377

Tube-Fuel Intake

$11.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 8

0

645

Briggs & Stratton 23513

Bushing-Plunger

Note: (Used only with Breaker Point Ignition)

$2.49

$

Usually ships in 2-12 days

0

665

Briggs & Stratton 296768

Oil Minder
(Superseded to 592239)

$35.99

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 222238

Deflector, Muffler (Side Outlet)
(Superseded to 393756)

$16.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 393760

DEFLECTOR, Muffler

$9.49

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

720

Briggs & Stratton 93474

Pin-Shaft
(Superseded to 691623)

$

$

Not available

721

Briggs & Stratton 221779

Stop-Shaft
(Superseded to 690397)

$4.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392056

Filler Group-Oil

$12.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 210879

Seat-Valve (Intake)

$6.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0
