1119 (1690361) - Simplicity 19" Walk-Behind Mower 19" & 21" Side Discharge Push Mower Parts Diagram

19" Walk-Behind Mower

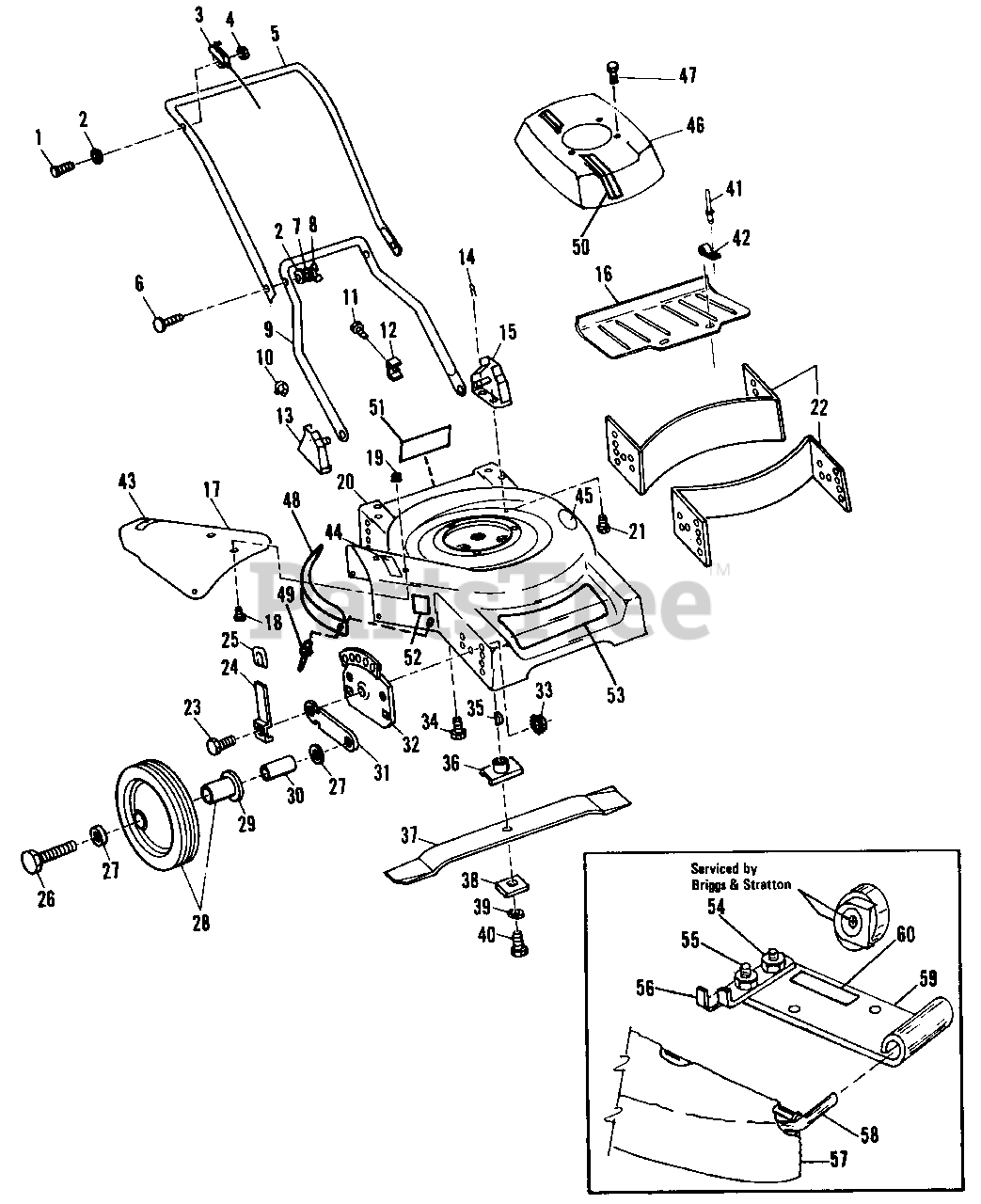

19" & 21" Side Discharge Push Mower Parts Diagram

  • Title

1

Simplicity 2822837

BOLT, Throttle

$

$

Not available

2

Simplicity 1717312SM

WASHER, Curved

$

$

Not available

3

Simplicity 1664054

CONTROL, Throttle

$

$

Not available

4

Simplicity 2823358

NUT, Throttle

$

$

Not available

5

Simplicity 1664049

HANDLE, Folding

$

$

Not available

6

Simplicity 108778

BOLT, Handle

$

$

Not available

7

Simplicity 2823300

WASHER

$

$

Not available

8

Simplicity 918468

NUT, Wing

$

$

Not available

9

Simplicity 1664051

YOKE

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

9

Simplicity 1664050

YOKE

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

10

Simplicity 2108812

CLAMP, Throttle

$

$

Not available

11

Simplicity 1664068

SCREW, Casing

$

$

Not available

12

Simplicity 1664062

CLAMP, Casing

$

$

Not available

13

Simplicity 1664053

BRACKET ASSY, RH

$

$

Not available

14

Simplicity 1664063

CLIP, Hairpin

$

$

Not available

15

Simplicity 1664052

BRACKET ASSY, LH

$

$

Not available

16

Simplicity 1664056

TRAILGUARD

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

16

Simplicity 1664057

TRAILGUARD

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

17

Simplicity 1664083

EXTENSION, Chute

$

$

Not available

18

Simplicity 1664065

BOLT, Carriage

$

$

Not available

19

Simplicity 1664067

NUT, Keps

$

$

Not available

20

Simplicity 1664043

HOUSING

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

20

Simplicity 1664044

HOUSING

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

21

Simplicity 2825391

BOLT, 1/4-20 x 5/8

$

$

Not available

22

Simplicity 1664072

BAFFLE

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

22

Simplicity 1664071

BAFFLE

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

23

Simplicity 1664066

BOLT, Shoulder QWA

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

24

Simplicity 1664080

SPRING, QWA

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

25

Simplicity 1664084

TIP, QWA

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

26

Simplicity 1922130SM

BOLT, Axle
(Superseded to 703872)

Note: Used on Mfg. No. 1690362 Only.

$4.99

$

In Stock, Qty 20+

0

60

Simplicity 2821972

BOLT, 3/8-16 x 2-1/2

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

27

Simplicity 2817642

WASHER, 3/8 Flat

$

$

Not available

28

Simplicity 1677785SM

WHEEL ASSY, w/Bearing 8"

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

28

Simplicity 1664046

WHEEL ASSY, w/Bearing 7"

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

29

Simplicity 1664058

BEARING, Wheel

$

$

Not available

30

Simplicity 1664075

SPACER, Wheel

$

$

Not available

31

Simplicity 1664081

ARM, QWA

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

32

Simplicity 1664059

PLATE, Wheel Adj.

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

33

Simplicity 2823428

NUT, Baffle

$

$

Not available

34

Simplicity 2827187SM

SCREW, Engine
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

35

Simplicity 2810224SM

KEY, Engine Shaft

$3.99

$

Usually ships in 2-12 days

0

36

Simplicity 1664060

ADAPTOR ASSY, Blade

$

$

Not available

37

Simplicity 1664041SM

BLADE

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

37

Simplicity 1664040SM

BLADE

Note: Used on Mfg. No. 1690361 Only.

$87.99

$

Usually ships in 2-12 days

0

38

Simplicity 1664074

SPACER, Blade Adaptor

$

$

Not available

39

Simplicity 1916965SM

WASHER, Blade
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

40

Simplicity 2827008SM

BOLT, Blade

$2.99

$

Usually ships in 2-12 days

0

41

Simplicity 924280

RIVET, Pop

$

$

Not available

42

Simplicity 1664064

CLIP

$

$

Not available

43

Simplicity 1664079

DECAL, "Caution"

$

$

Not available

44

Simplicity 1704276SM

DECAL, "Danger . . . "

$

$

Not available

45

Simplicity 1664078

DECAL, "Place Foot Here . . ."

$

$

Not available

46

Simplicity 1664082

SHROUD

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

47

Simplicity 928690

SCREW, Shroud

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

48

Simplicity 1664186

GUARD, Blade

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

48

Simplicity 1664176

GUARD, Blade

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

49

Simplicity 1960241SM

RIVET, 1/4" Pop

$5.49

$

Usually ships in 2-12 days

0

50

Simplicity 1663836

DECAL, Shroud Stripe

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

51

Simplicity 106719

DECAL, Simplicity 6"

$

$

Not available

52

Simplicity 170488

DECAL, 21"

Note: Used on Mfg. No. 1690362 Only.

$

$

Not available

52

Simplicity 170489

DECAL, 19"

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

53

Simplicity 1722551SM

DECAL, Deck, Simplicity

Note: Used on Mfg. No. 1690362 Only.

$11.99

$

In Stock, Qty 12

0

53

Simplicity 1663834

DECAL, Deck, Simplicity

Note: Used on Mfg. No. 1690361 Only.

$

$

Not available

54

Simplicity 2823358

NUT, Throttle

$

$

Not available

55

Simplicity 2823333

BOLT, Rd. Hd.

Note: OPTIONAL ACCESSORY 1690363 Grass Catcher Kit

$

$

Not available

56

Simplicity 1664147

BRACKET

Note: OPTIONAL ACCESSORY 1690363 Grass Catcher Kit

$

$

Not available

57

Simplicity 1664166

GRASS BAG

Note: OPTIONAL ACCESSORY 1690363 Grass Catcher Kit

$

$

Not available

58

Simplicity 1664164

FRAME ASSY

Note: OPTIONAL ACCESSORY 1690363 Grass Catcher Kit

$

$

Not available

59

Simplicity 1664148

PLATE

Note: OPTIONAL ACCESSORY 1690363 Grass Catcher Kit

$

$

Not available

60

Simplicity 1664165

DECAL, Caution

Note: OPTIONAL ACCESSORY 1690363 Grass Catcher Kit

$

$

Not available
