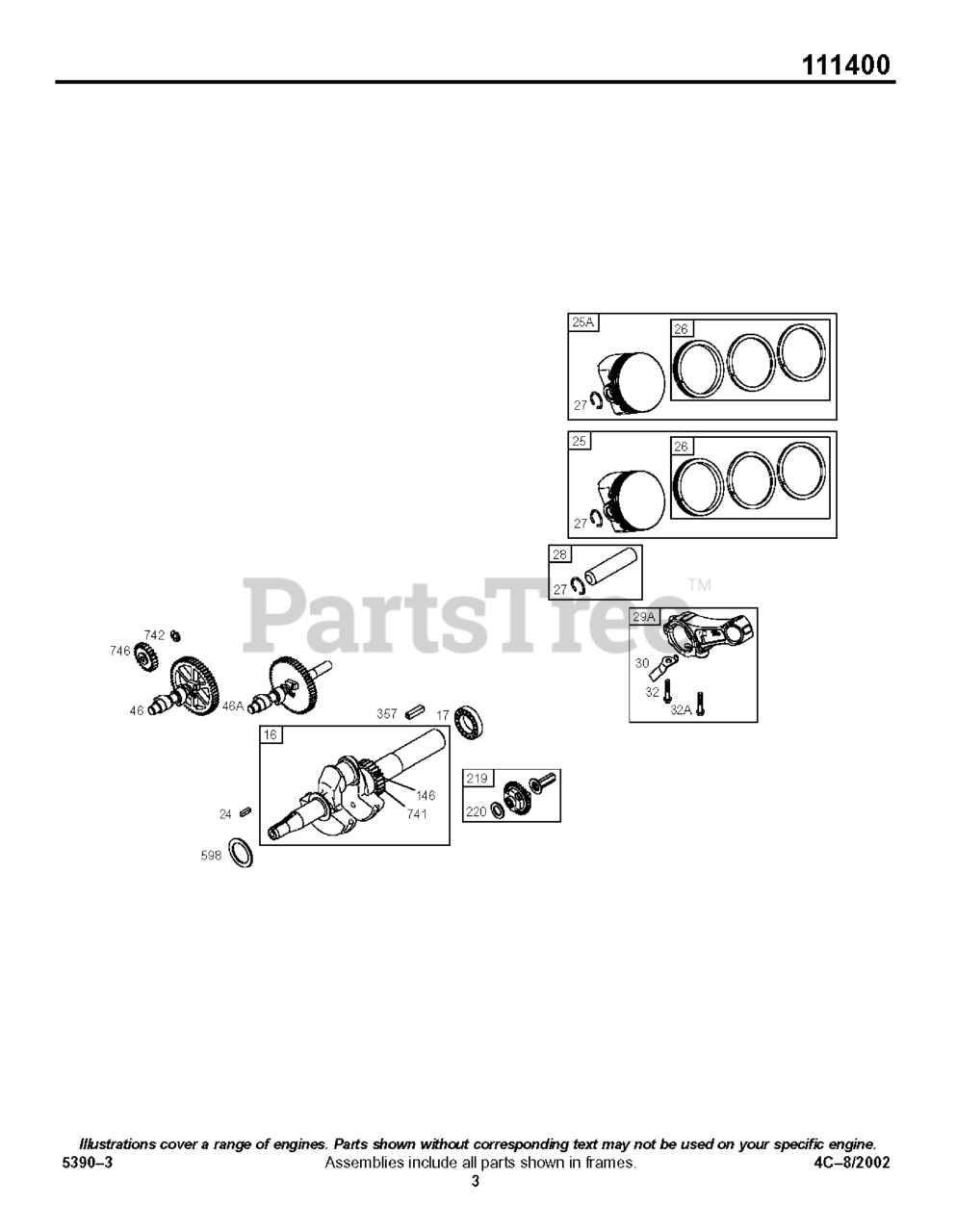

111432-0131-E1 - Briggs & Stratton Horizontal Engine Piston Group Parts Diagram

Horizontal Engine

Piston Group Parts Diagram

  • Title

16

Briggs & Stratton 693802

Crankshaft

$102.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 694463

Crankshaft

$164.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 692517

Bearing-Ball
(Superseded to 798538)

$31.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499627

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 692788

Piston Assembly

Note: (.010" Oversize)

$55.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692789

Piston Assembly
(Superseded to 799064)

Note: (.020" Oversize)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692790

Piston Assembly

Note: (.030" Oversize)

$65.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set

Note: (Standard)

$53.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 692785

Ring Set

Note: (.010" Oversize)

$

$

Not available

26

Briggs & Stratton 692786

Ring Set

Note: (.020" Oversize)

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 692787

Ring Set

Note: (.030" Oversize)

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29A

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 692562

Dipper-Connecting Rod
(Superseded to 791584)

$6.49

$

In Stock, only 1 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod) Used After Code Date 20000220

$4.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 693404

Camshaft

$73.99

$

In Stock, Qty 5

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

357

Briggs & Stratton 692191

Key-Drive Pulley

$

$

Not available

598

Briggs & Stratton 220624

Shim-End Play

Note: (Crankshaft)

$22.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 692566

Gear-Idler
(Superseded to 790278)

$17.99

$

Usually ships in 2-12 days
