11114C - MTD Walk-Behind Mower (1986) Rotary Parts Diagram

Walk-Behind Mower

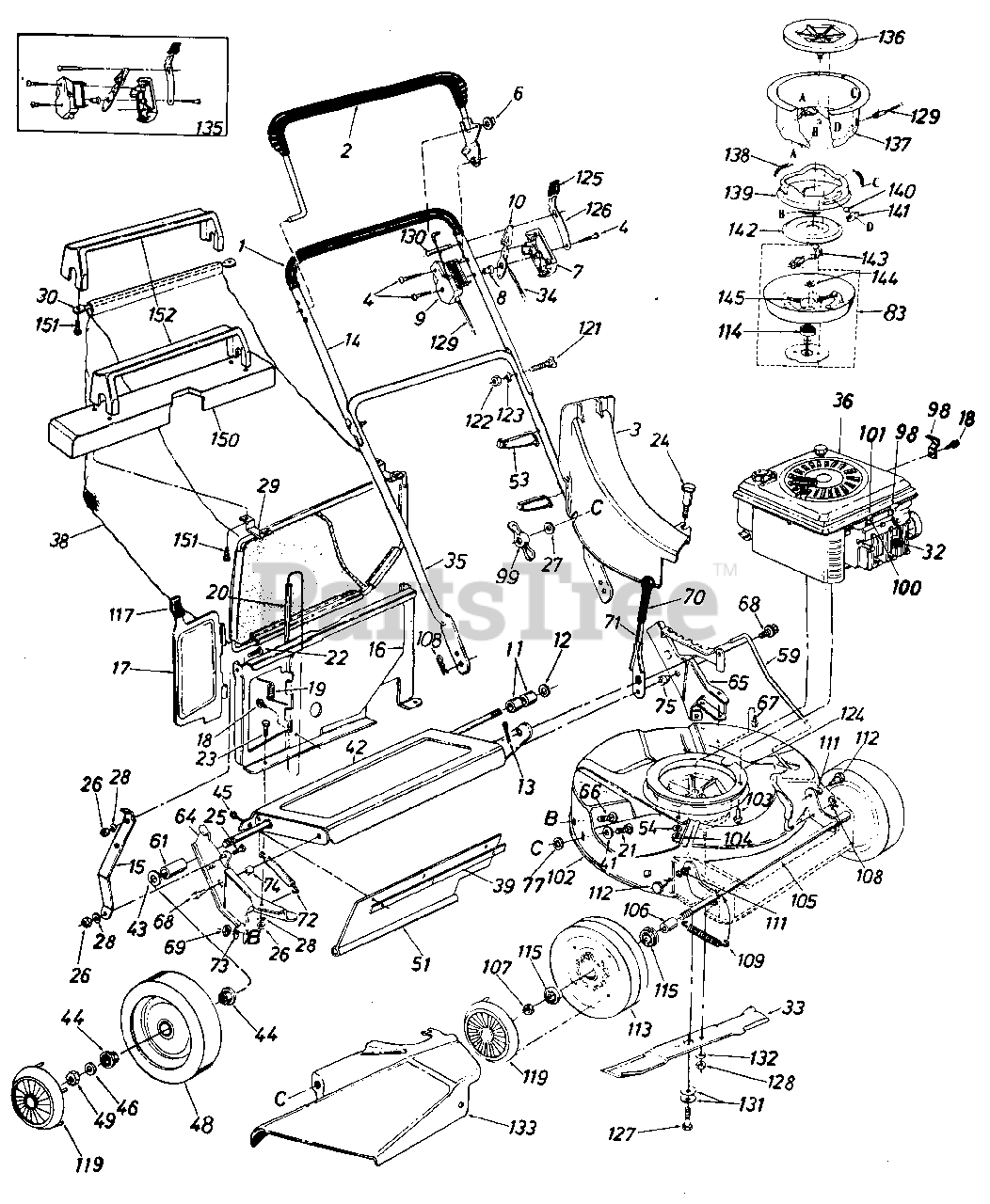

Rotary Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

3

MTD 731-0733

Top Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

6

MTD 726-0111

Push Cap

$

$

Not available

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 711-0500

Spacer .526" I.D. x .690" O.D. x .640" Lg.

$

$

Not available

12

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

13

MTD 714-0507

Cotter Pin 3/32" Dia. x.75" Lg.

$4.49

$

In Stock, only 2 left!

0

14

MTD 749-0437

Upper Handle Chrome

$

$

Currently unavailable

15

MTD 16129

Panel Support Brkt.
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

16

MTD 16140

Top Catcher Panel

$

$

Not available

17

MTD 16145

Top Door

$

$

Currently unavailable

18

MTD 710-0429

Hex "B" Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483

Torsion Spring .20" I.D. x 1.14" Lg.
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin .187" Dia. x 7.25" Lg.

$

$

Not available

21

MTD 710-0134

Carriage Bolt 2/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0286

Truss Mach. Scr. 1/4-20 x 1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

MTD 738-0704

Shld. Bolt .312" Dia. x .18" Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0253

Truss Mach. Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

MTD 736-0463

Fl-Wash. .280" I.D. x .620" O.D.

$4.49

$

In Stock, only 2 left!

0

28

MTD 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 747-0525

Front Grass Catcher Frame

$

$

Not available

30

MTD 747-0526

Upper Bag Support

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 742-0290

21" Blade

$

$

Not available

34

MTD 746-0420

Throttle Control Wire 45"
(Superseded to 946-1115)

Note: (113)

$28.99

$

In Stock, only 1 left!

0

MTD 746-0633

Throttle Control Wire 58"
(Superseded to 946-0674A)

Note: (114)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0505

Lower Handle Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

38

MTD 764-0215

21" Top Discharge Grass Bag

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 7

0

42

MTD 16131

Rear Axle Ass'y.

$

$

Not available

43

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

44

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776

Hex AB-Tap Scr. 1/4 X .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 734-1061

Rear Wheel Ass'y. Comp. 8x 1.75

$

$

Not available

49

MTD 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

51

MTD 731-0672

Rear Flap 3.75" x 17.30" Lg.
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

53

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

54

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

59

MTD 747-0510

Height Adj. Rod

$

$

Not available

61

MTD 748-0190

Spacer .513" I.D. x .703 O.D. x .69" Lg.

$6.49

$

In Stock, only 1 left!

0

64

MTD 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-1 8

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0143

Grip

$

$

Not available

71

MTD 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

MTD 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

MTD 750-0624

Shld. Spacer .500" Dia. x . 1 00

$

$

Not available

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, only 3 left!

0

83

MTD 14300

Clutch Blade Housing Ass'y.

$

$

Not available

98

MTD 12894

Casing Clamp

Note: (114)

$

$

Not available

99

MTD 712-0109

Wing Nut

$

$

Not available

100

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

Note: (114)

$3.99

$

Usually ships in 3-6 days

0

101

MTD 751-0442

Casing Clamp

Note: (114)

$

$

Not available

102

MTD 16126

Top Discharge Deck Ass'y.

Variations

MTD 16126-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

103

MTD 710-0654

Hex Wash Hd. TT-Tap Scr. 3/8-1 6
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

104

MTD 712-0185

Speed Nut 1/4-20 U-Type

$

$

Not available

105

MTD 10662

Front Axle Ass'y.

$

$

Currently unavailable

106

MTD 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

107

MTD 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

108

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

MTD 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

111

MTD 736-0221

Intern. L-Wash. 3/8 x .56" O.D.

$

$

Not available

112

MTD 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

MTD 734-1265

Front-Wheel Ass'y. Comp. 7x 1.75

$

$

Not available

114

MTD 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

115

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

117

MTD 720-0208

Door Grip x 2.5

$

$

Not available

119

MTD 731-0571

Hub Cap

$

$

Currently unavailable

121

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

123

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

124

MTD 717-0485

Blade Brake Clutch Comp.

$

$

Not available

125

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

126

MTD 732-0401

Lockout Spring

$

$

Not available

127

MTD 710-0818

Hex Cent. L-Bolt 3/8-24 x 2.00" (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

128

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

129

MTD 746-0400A

BBC Clutch Cable 46"
(Superseded to 946-0405)

Note: (Incl. Ref. No. 6)

$53.99

$

Usually ships in 3-6 days

0

130

MTD 731-0607

Lock Pin .314" Dia. x 1.75"

$

$

Not available

131

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

132

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

133

MTD 16559

Side Chute Deflector

$

$

Not available

135

MTD 753-0431

Kit Control Housing Comp.

$

$

Not available

136

MTD 719-0256

Fan Adapter

$

$

Not available

137

MTD 14307

Clutch Housing

$

$

Not available

138

MTD 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

139

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

140

MTD 741-0326

Steel Ball .500" Dia.

$

$

Not available

141

MTD 731-0520

Ball Block

$

$

Not available

142

MTD 14304

Clutching Cone

$

$

Not available

143

MTD 710-0875

Hex Tap L-Scr. 1/4-20 x .75"

$3.99

$

In Stock, only 2 left!

0

144

MTD 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

145

MTD 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available

150

MTD 731-0807

Catcher Frame Cover

$

$

Not available

151

MTD 710-0969

Truss Mach. Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

152

MTD 731-0801

Bag Handle

$

$

Not available

MTD 731-0759

Plastic Tubing

Note: (Not Shown)

$

$

Not available

MTD 8113-400-6

Hardware Pack

Note: (113)

$

$

Currently unavailable

MTD 8114-400-6

Hardware Pack

Note: (114)

$

$

Currently unavailable
