1110 (136-293-100) - Cub Cadet Lawn Tractor Hydro Dump Valves & Mounting Part 1 Parts Diagram

Lawn Tractor

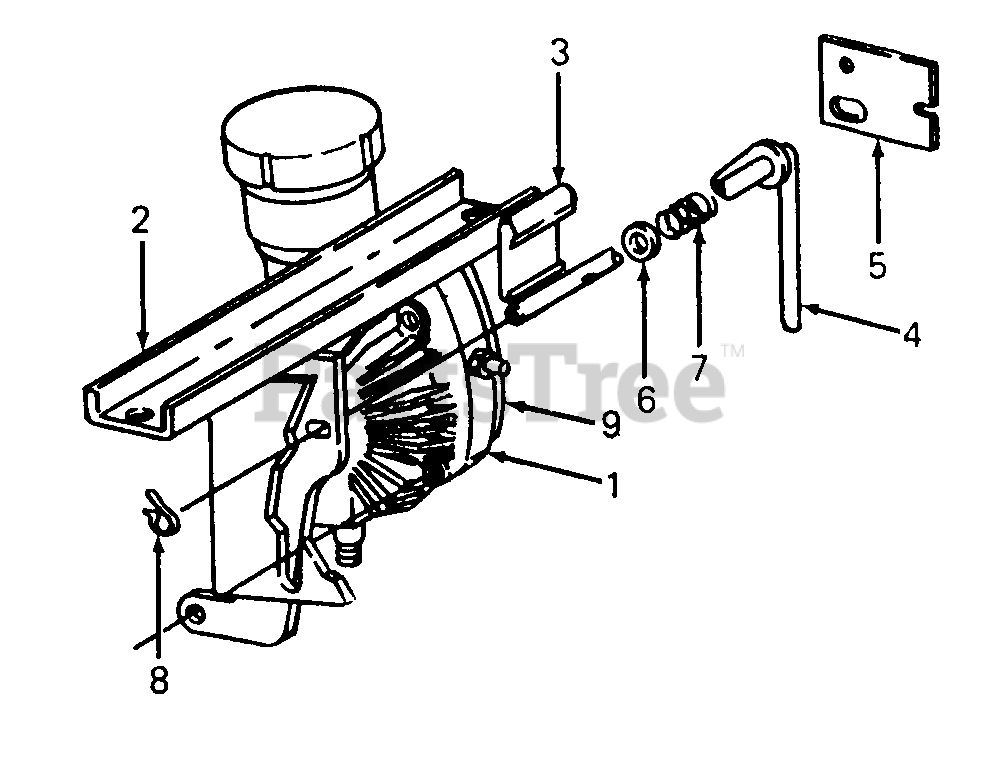

Hydro Dump Valves & Mounting Part 1 Parts Diagram

  • Title

1

Cub Cadet 717-3016

Transmission, Hydro
(Superseded to 917-3016)

$

$

Not available

Cub Cadet 710-3022

Bolt, 3/8-16 X 2.75 GR 5

$4.99

$

In Stock, Qty 7

0

Cub Cadet 710-0521

Bolt, 3/8-16 X 3.0 GR 8

$5.49

$

In Stock, Qty 11

0

2

Cub Cadet 703-1225

Support, Transaxle

$

$

Currently unavailable

3

Cub Cadet 703-0310

Lever, Dump

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 715-3008

Pin, 1/8 X 3/4 Hvy Spring

$

$

Not available

4

Cub Cadet 703-1328

Rod, Dump Valve

$

$

Not available

5

Cub Cadet 703-1170

Bracket, Dump Valve

$

$

Not available

Cub Cadet 710-3008

Bolt, 5/16-18 X .75 Long GR 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, 5/16-18 GR 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0242

Washer, .345 X .88 X .06

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, Lock 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0159

Washer, .344 X .88 X.06

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 732-0306

Spring, .47 OD X 1.93
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

8

Cub Cadet 714-0145

Pin, 1/2 Int. Cotter

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 721-3006

Gasket, Hydro Transmission

$

$

Not available
