1110 (135-293-399) - Cub Cadet Lawn Tractor Lift Links (for SN 109,000 & Up) Parts Diagram

Lawn Tractor

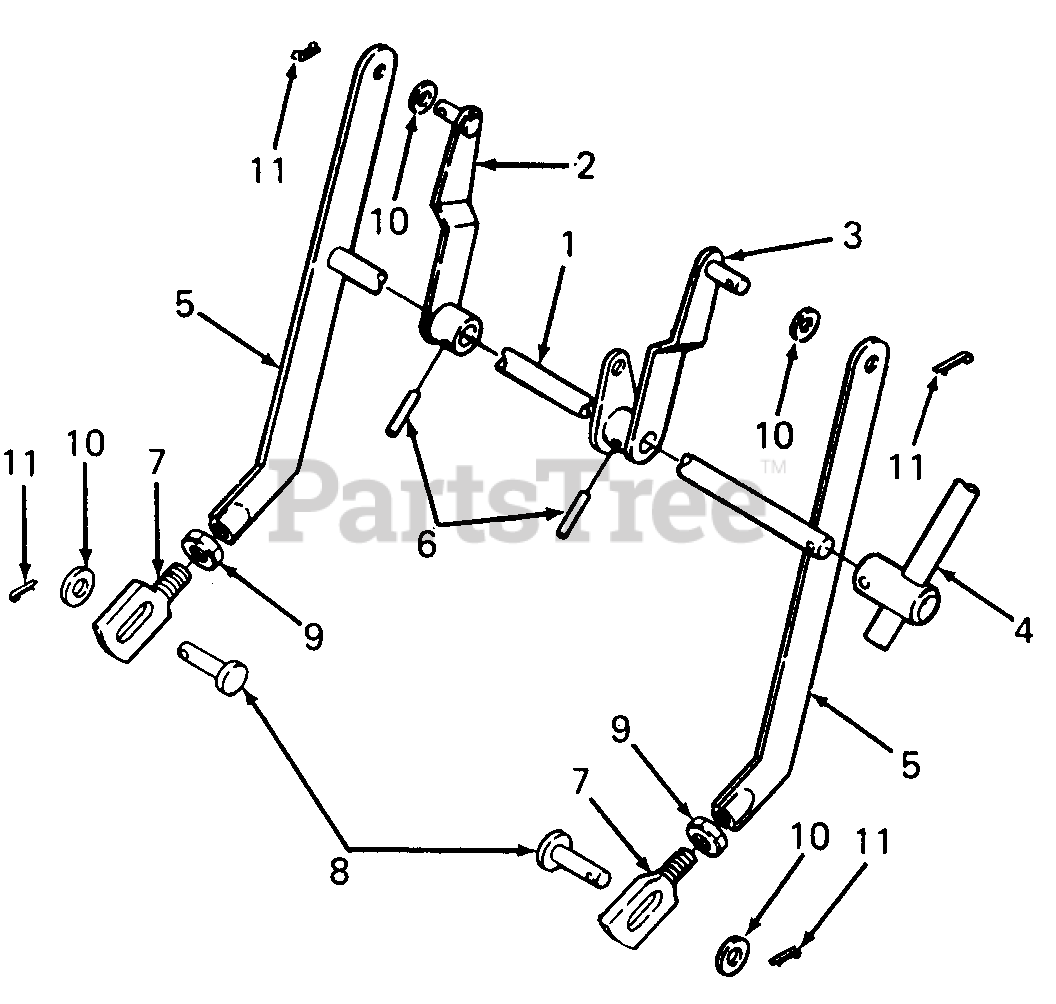

Lift Links (for SN 109,000 & Up) Parts Diagram

  • Title
1

Cub Cadet 738-3054

Shaft, Lift

$

$

Not available

2

Cub Cadet 703-1378

Arm Assy, Lift LH

$

$

Currently unavailable

3

Cub Cadet 703-1377

Arm Assy, Lift RH

$

$

Not available

4

Cub Cadet 703-1199

Lever, Lift

$

$

Not available

5

Cub Cadet 703-1383

Bracket, Lift

$

$

Not available

6

Cub Cadet 715-3028

Pin, 1/4 X 1.5 Long Slotted Roll

$

$

Not available

7

Cub Cadet 711-3216

Bolt, Eye

$

$

Not available

8

Cub Cadet 711-0332

Pin, Lift Bracket
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

9

Cub Cadet 712-0206

Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0272

Washer, .510 X 1.0 X .06

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0149

Pin, Internal Cotter
(Superseded to 914-0149B)

$

$

Not available
